Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP, RED 22 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11r carbon, OSBB, full internal, electronic-specific routing, internally integrated seat clamp, 130mm rear spacing
Suspension Fork
S-Works FACT carbon, full monocoque, size-specific taper
Drivetrain
Rear Derailleur
SRAM eTap, 11-speed
Front Derailleur
SRAM eTap, braze-on
Shift Levers
SRAM eTap
Cassette
SRAM Red 22, 11-speed, 11-28t
Crank
SRAM Red 22, 52/36T
Bottom Bracket
SRAM BB30, 68mm, no spacer
Chain
SRAM Red 22, 11-speed
Wheels
Rims
Roval CLX 40, carbon 40mm depth rim, DT Swiss 240 internals, CeramicSpeed bearings, 24h
Tires
Turbo Cotton, 700x24mm
Brakes
Brakes
SRAM Red 22
Cockpit
Stem
S-Works SL, alloy, titanium bolts, 6-degree rise
Handlebar
S-Works SL carbon Shallow Drop, 125mm drop, 75mm reach
Seat
Saddle
Body Geometry S-Works Toupé, carbon rails, 143mm
Seatpost
S-Works FACT carbon, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.37 mm | 1.41 mm | 1.43 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272.5 mm | 272.5 mm | 274 mm | 274 mm |
| Front Center | 576 mm | 576 mm | 583 mm | 591 mm | 605 mm | 612 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 57 mm | 57 mm | 56 mm | 56 mm | 53 mm |
| Stack | 501 mm | 523 mm | 540 mm | 561 mm | 588 mm | 609 mm |
| Reach | 383 mm | 383 mm | 384 mm | 392 mm | 399 mm | 405 mm |
| Top Tube Length | 515 mm | 534 mm | 545 mm | 562 mm | 579 mm | 597 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 431 mm | 462 mm | 481 mm | 501 mm | 522 mm | 553 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 190 mm | 210 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 404 mm | 407 mm |
| Wheelbase | 967 mm | 967 mm | 975 mm | 983 mm | 1000 mm | 1010 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 727 mm | 752 mm | 772 mm | 792 mm | 823 mm | 847 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model

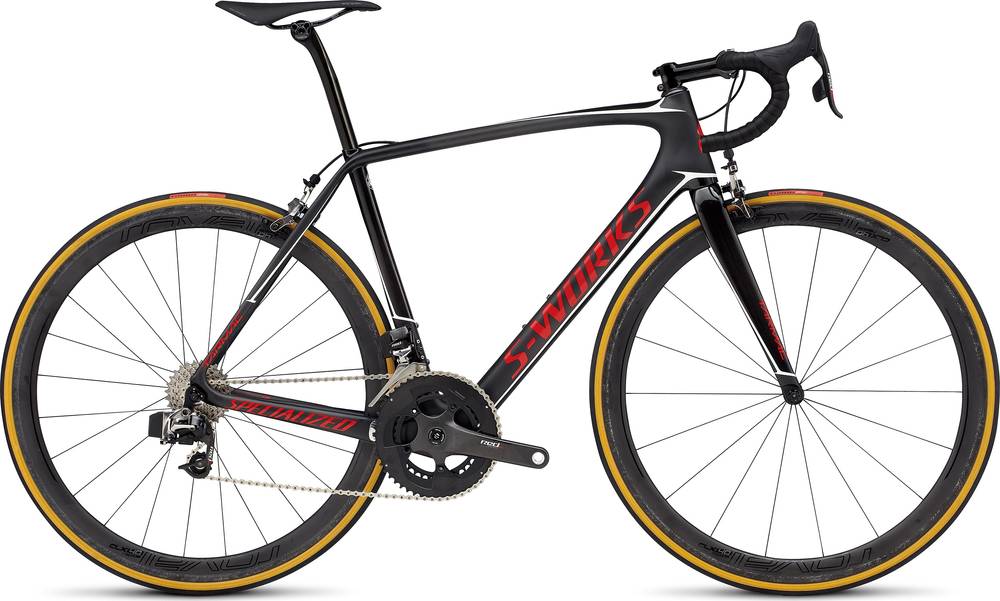

S-Works Tarmac eTap belongs to the Specialized Tarmac model. 279 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Specialized S-Works Tarmac eTap 2017, has a 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The S-Works Tarmac eTap has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
