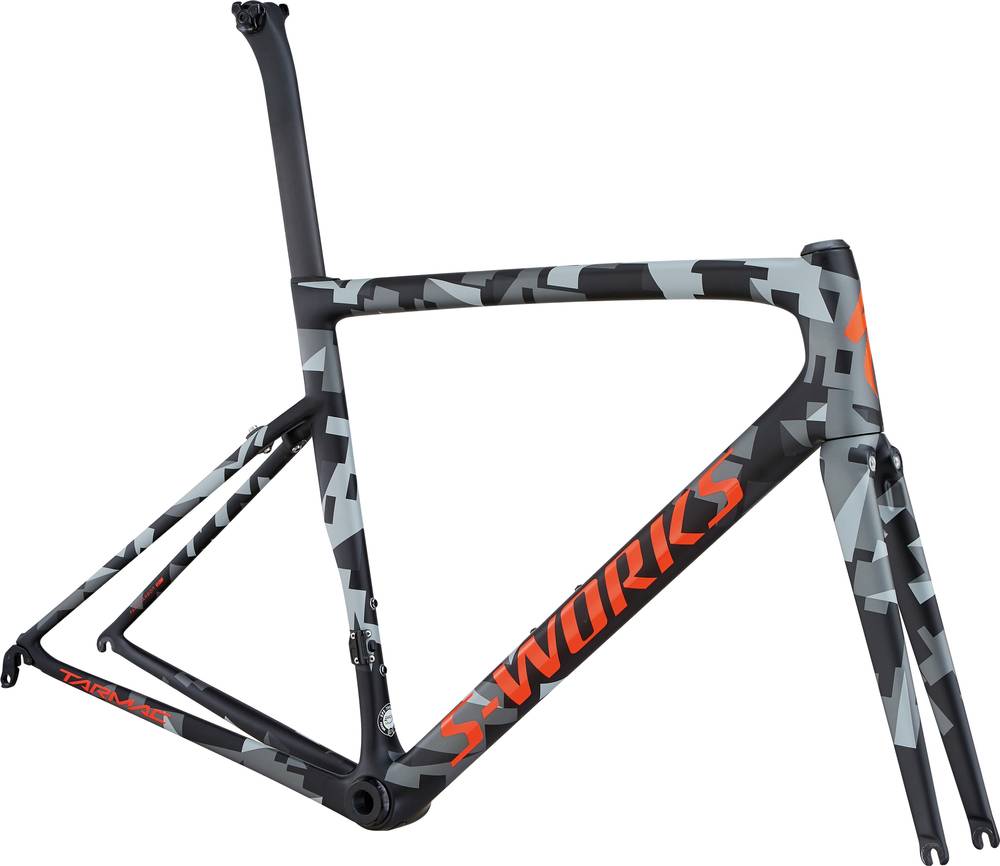

Specialized S-Works Tarmac Frameset 2018
2018 Road
Estimate price |
4,000$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works Tarmac SL6, FACT 12r carbon, Rider-First Engineered™, OSBB, clean routing, internally integrated seat clamp, 130mm rear spacing
Suspension Fork
S-Works FACT carbon, size specific design
Drivetrain
Shift Levers
C-clips for bottom bracket shell
Crank
32T, custom steel
Bottom Bracket
OSBB, CeramicSpeed bearings
Seat
Seatpost
S-Works FACT Carbon Tarmac seatpost, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.371 mm | 1.387 mm | 1.417 mm | 1.43 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 571 mm | 574 mm | 577 mm | 579 mm | 591 mm | 606 mm | 613 mm |
| Rake | 47 mm | 47 mm | 47 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 71 mm | 63 mm | 58 mm | 58 mm | 55 mm | 55 mm | 52 mm |
| Stack | 500 mm | 514 mm | 527 mm | 544 mm | 565 mm | 591 mm | 612 mm |
| Reach | 365 mm | 375 mm | 380 mm | 384 mm | 395 mm | 402 mm | 408 mm |
| Top Tube Length | 490 mm | 508 mm | 531 mm | 540 mm | 562 mm | 577 mm | 595 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 400 mm | 431 mm | 462 mm | 481 mm | 501 mm | 522 mm | 553 mm |
| Head Tube Angle | 70.5 ° | 71.75 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 105 mm | 115 mm | 126 mm | 143 mm | 163 mm | 190 mm | 210 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 407 mm | 410 mm |
| Wheelbase | 964 mm | 968 mm | 970 mm | 973 mm | 985 mm | 1002 mm | 1012 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 730 mm | 740 mm | 755 mm | 775 mm | 795 mm | 826 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
S-Works Tarmac Frameset is a Specialized Tarmac model. Specialized launched 279 frames of this model so far. You can easily view all of the Specialized Tarmac frames models from 2018, here.
Model range prices
The most economical model, the Specialized S-Works Tarmac Frameset 2018 has a starting price of 4000$. Specialized S-Works Tarmac Ultralight Frameset 2018 on the other hand is the most expensive at 4750$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race frames average price
If you want an acceptable Race frame you should know that the average price is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality Race frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2018 for 4000$. If we compare this with the average Race frame cost we notice that the price is 63.6% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
