Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11r carbon, FACT IS construction, compact race design, 1.5"" lower HS bearing, threaded BB
Suspension Fork
S-Works FACT carbon, monocoque construction, OS race for 1.5"" bearing, full carbon legs, crown and steerer
Drivetrain
Bottom Bracket
BSA, 68mm, threaded
Cockpit
Headset
S-Works Campy style, 1-1/8"" to 1.5"" lower bearing, integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, 8mm carbon cone w/ one 10mm and two 5mm carbon spacers
Seat
Seatpost
S-Works SL, FACT carbon w/ Zertz insert, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 58cm | 61cm | 56cm | 54cm | 49cm | 52cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 0.95 mm | 0.97 mm | 0.94 mm | 0.93 mm | 0.89 mm | 0.91 mm |
| Bottom Bracket Height | 262 mm | 262 mm | 262 mm | 263 mm | 264 mm | 263 mm |
| Front Center | 205 mm | 230 mm | mm | mm | mm | mm |
| Stack | 557 mm | 587 mm | 537 mm | 517 mm | 467 mm | 497 mm |
| Reach | 589 mm | 607 mm | 572 mm | 555 mm | 525 mm | 544 mm |
| Seat Tube Angle | 53 ° | 56 ° | 56 ° | 57 ° | 57 ° | 62 ° |
| Seat Tube Length | 407 mm | 410 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Bottom Bracket Drop | 73 mm | 74 mm | 73 mm | 73 mm | 72 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

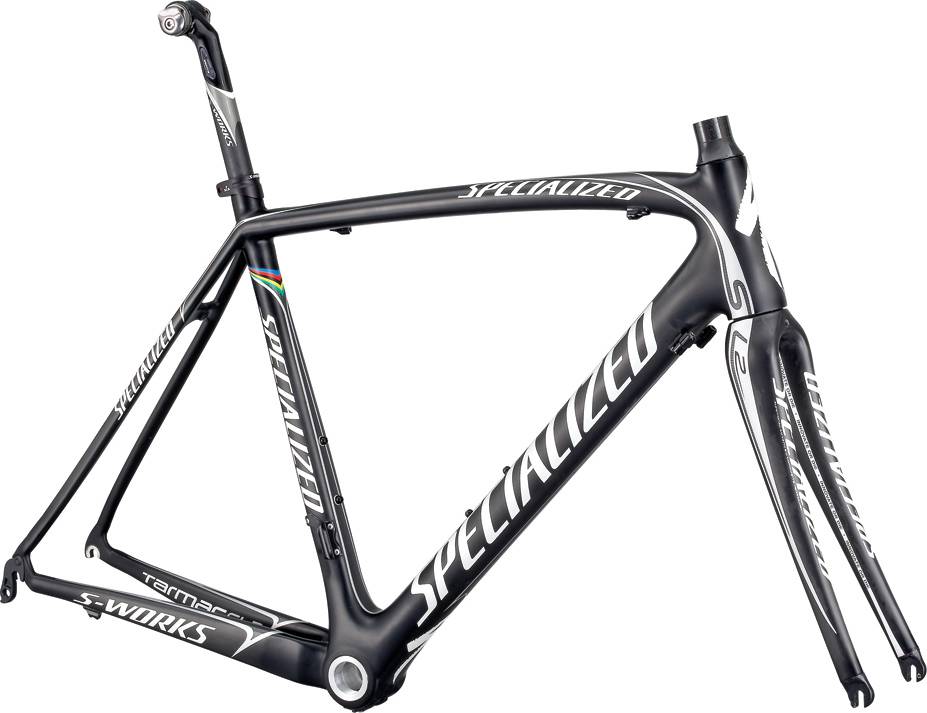

S-Works Tarmac SL2 Frameset is a Specialized Tarmac model. 279 frames variations carry this model name so far. You can get a glimpse at all models from 2009, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race frames
According to our calculations, the average cost of a Race frame that is reliable is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality Race frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
S-Works Tarmac SL2 Frameset components
Fork material
S-Works Tarmac SL2 Frameset has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
