Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works Tarmac SL3 FACT 11r, FACT IS construction, compact race design, 1.5"" lower HS bearing, threaded BB shell
Suspension Fork
S-Works Tarmac SL3 FACT carbon, Uni-weave, monocoque construction, OS race for 1.5"" bearing, full carbon legs, crown and steerer
Drivetrain
Bottom Bracket
With Crankset
Cockpit
Headset
Aheadset Stainless Race Steel Balls w/ top cap w/ 20mm of spacers
Seat
Seatpost
S-Works FACT carbon w/ Zertz insert, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 576 mm | 583 mm | 591 mm | 605 mm | 613 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 57 mm | 57 mm | 56 mm | 56 mm | 53 mm |
| Top Tube Length | 510 mm | 529 mm | 540 mm | 557 mm | 574 mm | 592 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 120 mm | 145 mm | 170 mm | 205 mm | 230 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 399 mm | 402 mm |
| Wheelbase | 933 mm | 953 mm | 965 mm | 980 mm | 1000 mm | 1022 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 722 mm | 747 mm | 769 mm | 792 mm | 820 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model

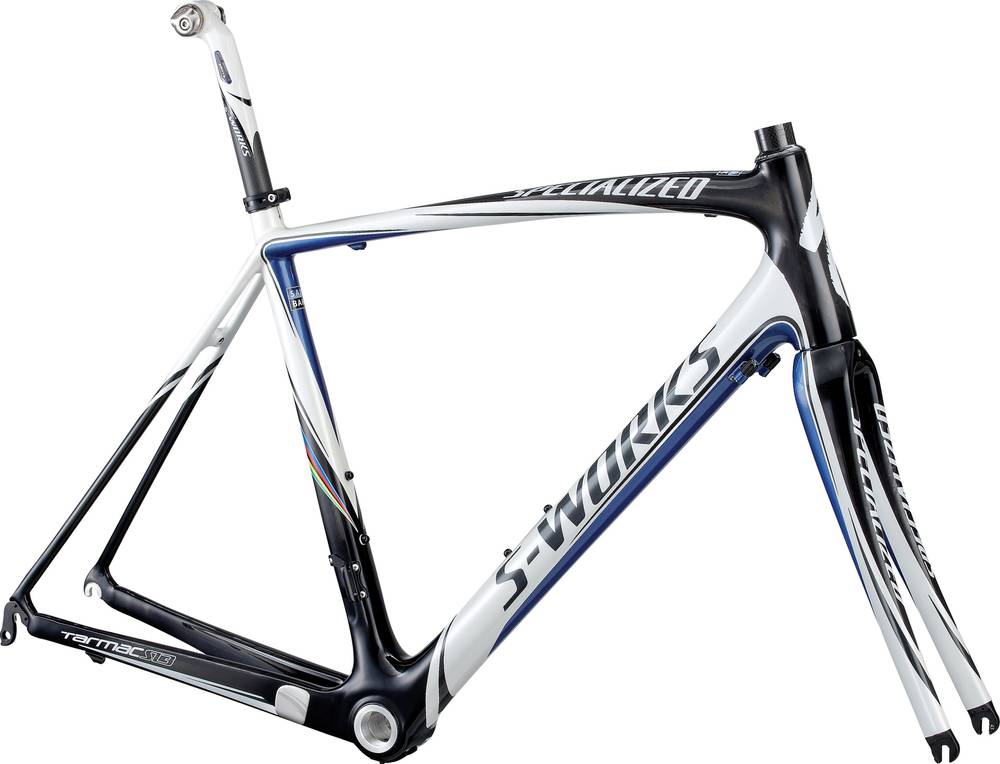

S-Works Tarmac SL3 Frameset completes the Specialized Tarmac model. Specialized released 279 frames variations of this model so far. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race frames
If you want to purchase a solid Race frame, it is important to know that the average cost is 2445$. However, this doesn’t mean that if you spend less money on a Race frame, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
Specialized S-Works Tarmac SL3 Frameset frame has 6 sizes, in the range of 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, you won’t have a problem finding one that suits you.
