Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works SL4 FACT 11r, FACT IS construction, compact race design, 1-3/8"" lower bearing, carbon OSBB
Suspension Fork
S-Works FACT carbon, full monocoque, OS race for 1-3/8"" bearing
Drivetrain
Rear Derailleur
Shimano Dura-Ace
Front Derailleur
Shimano Dura-Ace
Shift Levers
Shimano Dura-Ace STI, Flight Deck compatible, 10-speed
Cassette
Shimano Dura-Ace, 10-speed, 11-25t
Crank
S-Works FACT carbon
Bottom Bracket
OS integrated, ceramic bearings
Chain
Shimano Dura-Ace
Pedals
Nylon flat test ride, loose ball, w/ reflectors
Wheels
Rims
Roval Fusee SLX
Tires
S-Works Turbo w/ BlackBelt protection, 220 TPI, aramid bead, 700x23c
Brakes
Brakes
Shimano Dura-Ace
Brake Levers
Shimano Dura-Ace STI, Flight Deck compatible
Cockpit
Stem
New S-Works ProSet Stem, 7050 3D forged with carbon-clip front cap/cone, 4-degree shim, CNC head bolts
Handlebar
S-Works Tarmac carbon, short drop
Headset
1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings, w/ 8mm carbon cone spacer and 20mm of carbon spacers
Seat
Saddle
Body Geometry Romin Pro, carbon rails
Seatpost
S-Works FACT carbon, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.37 mm | 1.41 mm | 1.44 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 576 mm | 583 mm | 591 mm | 605 mm | 612 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 57 mm | 57 mm | 56 mm | 56 mm | 53 mm |
| Stack | 496 mm | 518 mm | 535 mm | 556 mm | 583 mm | 604 mm |
| Reach | 378 mm | 378 mm | 379 mm | 387 mm | 394 mm | 400 mm |
| Top Tube Length | 510 mm | 529 mm | 540 mm | 557 mm | 574 mm | 592 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 190 mm | 210 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 399 mm | 402 mm |
| Wheelbase | 962 mm | 962 mm | 970 mm | 978 mm | 995 mm | 1005 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 722 mm | 747 mm | 767 mm | 787 mm | 818 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |

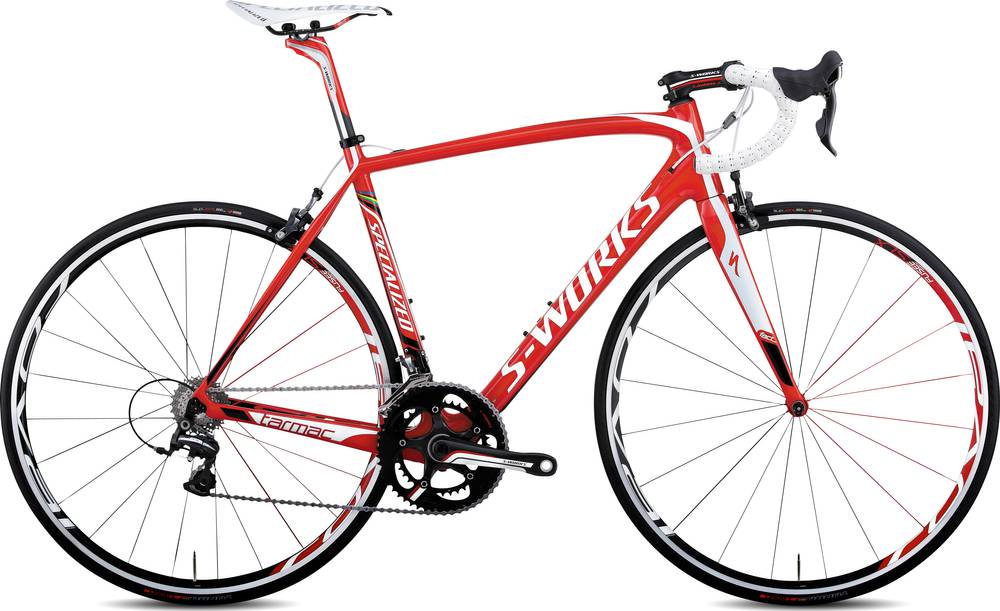

Model Overview
S-Works Tarmac SL4 is part of the Specialized Tarmac model. Specialized launched 279 bikes of this model so far. You can easily view all of the Specialized Tarmac bikes models from 2012, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on S-Works Tarmac SL4 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Specialized S-Works Tarmac SL4 bike has 6 sizes, in the range of 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, you won’t have a problem finding one that suits you.
