Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works SL4 FACT 11r, FACT IS construction, compact race design, 1-3/8"" lower bearing, carbon OSBB
Suspension Fork
S-Works FACT carbon, full monocoque, OS race for 1-3/8"" bearing
Drivetrain
Bottom Bracket
Press-in OSBB cups w/ ceramic bearings
Cockpit
Headset
1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings, w/ 8mm carbon cone spacer and 20mm of carbon spacers
Seat
Seatpost
S-Works FACT carbon, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.37 mm | 1.41 mm | 1.44 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 576 mm | 583 mm | 591 mm | 605 mm | 612 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 57 mm | 57 mm | 56 mm | 56 mm | 53 mm |
| Stack | 496 mm | 518 mm | 535 mm | 556 mm | 583 mm | 604 mm |
| Reach | 378 mm | 378 mm | 379 mm | 387 mm | 394 mm | 400 mm |
| Top Tube Length | 510 mm | 529 mm | 540 mm | 557 mm | 574 mm | 592 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 190 mm | 210 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 399 mm | 402 mm |
| Wheelbase | 962 mm | 962 mm | 970 mm | 978 mm | 995 mm | 1005 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 722 mm | 747 mm | 767 mm | 787 mm | 818 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model

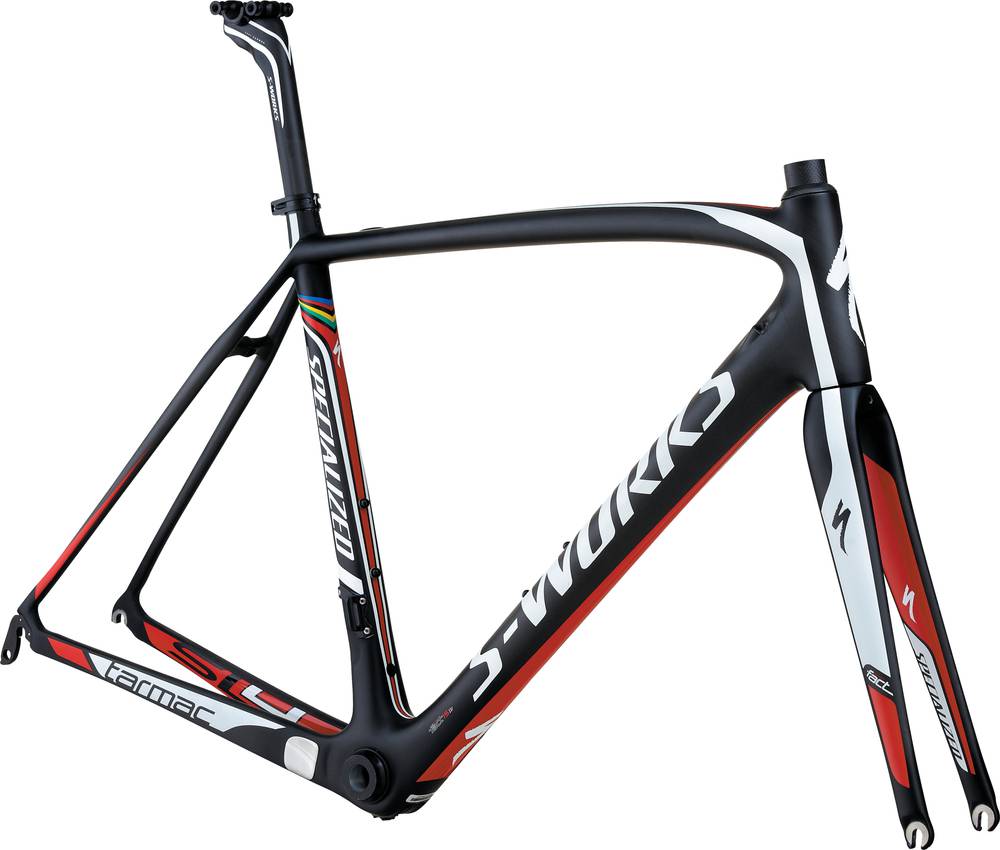

S-Works Tarmac SL4 OSBB Frameset completes the Specialized Tarmac model. 279 frames variations carry this model name so far. Take a sneak peek at all Specialized Tarmac frames models from 2012, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race frames average price
If you want an acceptable Race frame you should know that the average price is 2445$. However, even though the average price of a Race frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
S-Works Tarmac SL4 OSBB Frameset components
Fork material
The fork on this frame is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Sizes
S-Works Tarmac SL4 OSBB Frameset comes in 6 sizes, that range from 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
