Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED 22 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works SL4 FACT 11r carbon, FACT construction, tapered/shaped headtube, compact race design, 1-3/8"" lower headset bearing, carbon OSBB
Suspension Fork
S-Works Tarmac FACT carbon full monocoque, OS race for 1-3/8"" bearing, hollow carbon dropouts
Drivetrain
Rear Derailleur
SRAM RED 22, 11-speed
Front Derailleur
SRAM RED 22, braze-on, 11-speed, YAW, w/ chain spotter
Shift Levers
SRAM RED 22, DoubleTap, 11-speed
Cassette
SRAM RED 22, 11-speed, 11-28
Crank
S-Works FACT carbon, OSBB
Bottom Bracket
OS integrated, CeramicSpeed, sealed ceramic bearings
Chain
SRAM RED 22, w/ PowerLink
Pedals
Nylon flat test ride, loose ball, w/ reflectors
Wheels
Rims
Roval Rapide CLX 40, w/ CeramicSpeed bearings
Tires
S-Works Turbo, 220TPI, foldable aramid bead, BlackBelt protection, 700x24c
Brakes
Brakes
SRAM RED mechanical
Brake Levers
SRAM RED mechanical
Cockpit
Stem
S-Works SL, 3D forged 7050 aluminum, 4-bolt, 31.8mm
Handlebar
S-Works Tarmac Bend, FACT carbon, 140mm drop, 85mm reach
Headset
1-1/8"" upper and 1-3/8"" lower, hybrid cartridge lightweight bearings, 8mm carbon cone spacer, w/ 20mm of carbon spacers
Seat
Saddle
Body Geometry Toupé Pro, carbon rails, 143mm
Seatpost
S-Works SL, FACT carbon, 2-bolt, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.37 mm | 1.41 mm | 1.44 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 576 mm | 583 mm | 591 mm | 605 mm | 612 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 57 mm | 57 mm | 56 mm | 56 mm | 53 mm |
| Stack | 496 mm | 518 mm | 535 mm | 556 mm | 583 mm | 604 mm |
| Reach | 378 mm | 378 mm | 379 mm | 387 mm | 394 mm | 400 mm |
| Top Tube Length | 510 mm | 529 mm | 540 mm | 557 mm | 574 mm | 592 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 190 mm | 210 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 399 mm | 402 mm |
| Wheelbase | 962 mm | 962 mm | 970 mm | 978 mm | 995 mm | 1005 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 722 mm | 747 mm | 767 mm | 787 mm | 818 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |

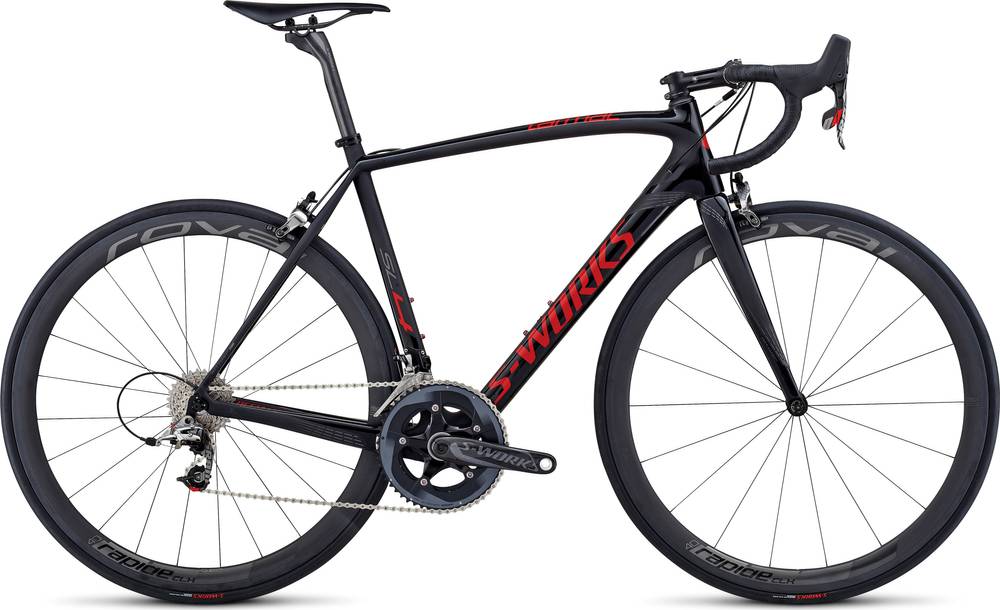

About this model
S-Works Tarmac SL4 RED HRR completes the Specialized Tarmac model. Specialized launched 279 bikes of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the S-Works Tarmac SL4 RED HRR model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized S-Works Tarmac SL4 RED HRR is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 6 sizes. They vary from 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
