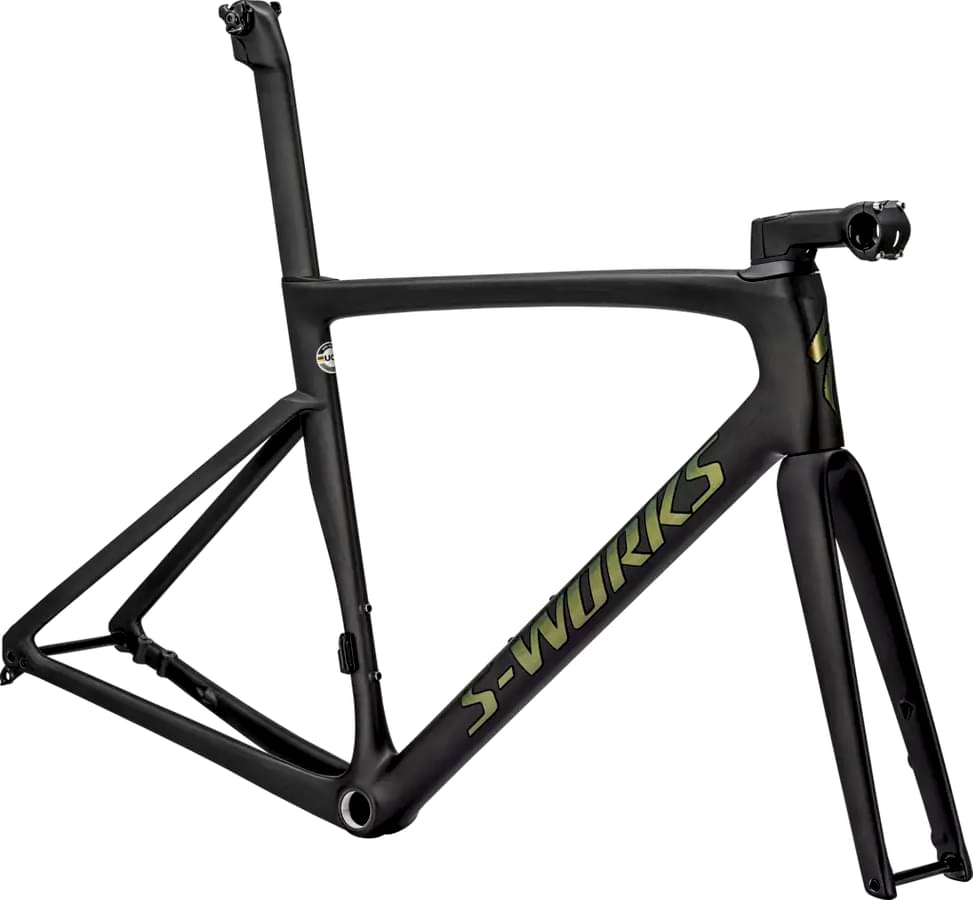

Specialized S-Works Tarmac SL7 Ready to Paint Frameset 2023
2023 Road
Estimate price |
5,500$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works Tarmac SL7 FACT 12r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc. Satin Carbon/Jet Fuel colorway. Decals over a clear coat for easy removal if custom painting is desired. Extra decals are provided with the frame set. The limited warranty provided by Specialized will no longer apply to your paint and graphics upon custom painting. Paint and graphics warranty with Specialized is voided upon custom painting.
Suspension Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Drivetrain
Bottom Bracket
BSA, 68mm, threaded
Cockpit
Stem
Tarmac integrated stem, 6-degree
Seat
Seatpost
2021 S-Works Tarmac Carbon seat post, FACT Carbon, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.33 mm | 1.35 mm | 1.38 mm | 1.39 mm | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 572 mm | 574 mm | 577 mm | 579 mm | 592 mm | 606 mm | 613 mm |
| Rake | 47 mm | 47 mm | 47 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 71 mm | 63 mm | 58 mm | 58 mm | 55 mm | 55 mm | 52 mm |
| Stack | 492 mm | 505 mm | 518 mm | 535 mm | 556 mm | 582 mm | 603 mm |
| Reach | 370 mm | 379 mm | 384 mm | 388 mm | 399 mm | 406 mm | 412 mm |
| Top Tube Length | 497 mm | 510 mm | 532 mm | 542 mm | 564 mm | 578 mm | 596 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 435 mm | 447 mm | 458 mm | 475 mm | 496 mm | 517 mm | 547 mm |
| Head Tube Angle | 70.5 ° | 71.75 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 93 mm | 102 mm | 113 mm | 131 mm | 151 mm | 178 mm | 198 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 971 mm | 974 mm | 976 mm | 979 mm | 992 mm | 1007 mm | 1014 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 724 mm | 736 mm | 747 mm | 769 mm | 787 mm | 809 mm | 835 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
S-Works Tarmac SL7 Ready to Paint Frameset completes the Specialized Tarmac model. 279 frames variations carry this model name so far. Take a sneak peek at all Specialized Tarmac frames models from 2023, by clicking here.
Model range prices
Specialized Tarmac SL7 Frameset 2023 is the most affordable frame of this model and has a price of 3300$. On the other hand, Specialized S-Works Tarmac SL7 Frameset 2023, is the most expensive and costs 5500$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race frames
According to our calculations, the average cost of a Race frame that is reliable is 2445$. However, this doesn’t mean that if you spend less money on a Race frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
When Specialized released this model in 2023, its price was 5500$. Comparing the average cost of a Race frame to this one, you will see that S-Works Tarmac SL7 Ready to Paint Frameset price is 124.95% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
S-Works Tarmac SL7 Ready to Paint Frameset components
Fork material
S-Works Tarmac SL7 Ready to Paint Frameset has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
