Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 10m carbon, Az1 construction, semi-compact Tricross design, Zertz inserts, OS BB, rack and fender fittings
Suspension Fork
S-Works FACT carbon, monocoque construction, full carbon legs, crown and steerer w/ Speed Zertz, rack and fender fittings
Drivetrain
Rear Derailleur
SRAM Red
Front Derailleur
SRAM Red, 34.9mm clamp, bottom pull
Shift Levers
SRAM Red Double Tap
Cassette
SRAM OG 1090, 10-speed 11-28t
Crank
S-Works FACT carbon, integrated oversize design
Bottom Bracket
S-Works oversize integrated
Chain
SRAM 1090R, 10-speed
Pedals
Silver cage, black body, w/ toe clip and strap
Wheels
Front Hub
Roval Pave SL, 20 hole, cold forged alloy five-spoke high flange, adjustable alloy axles, Roval QR
Rear Hub
Roval Pave SL, 24h, cold forged alloy five-spoke high flange, adjustable alloy axles, Roval QR
Rims
Roval Pavé SL, E5 alloy mid-profile, machined brake surface
Spokes
DT aero butted
Tires
S-Works Houffalize CX, 700x32c, dual-compound tread, aramid bead, 127TPI
Brakes
Brakes
Tektro high profile linear spring cantilever, alloy, cartridge pads
Brake Levers
SRAM Red Double Tap, 10-speed
Cockpit
Stem
S-Works Pro-Set, 3D forged, carbon/alloy face plate w/ Ti bolts, carbon top cap, 4-position adjustable
Handlebar
S-Works SL, FACT carbon handlebar, short-reach drop, 31.8mm
Headset
S-Works Campy style, 1-1/8"" integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, 20mm carbon cone w/ one 10mm and two 5mm carbon spacers
Seat
Saddle
Body Geometry Phenom SL, super light foam, carbon reinforced base, hollow Ti rails, microfiber cover
Seatpost
S-Works SL, FACT carbon w/ Zertz insert, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 265 mm | 265 mm | 267 mm | 267 mm | 269 mm | 269 mm |
| Front Center | 596 mm | 597 mm | 597 mm | 601 mm | 607 mm | 616 mm |
| Rake | 49 mm | 49 mm | 49 mm | 47 mm | 47 mm | 47 mm |
| Trail | 75 mm | 70 mm | 65 mm | 64 mm | 61 mm | 58 mm |
| Top Tube Length | 520 mm | 535 mm | 550 mm | 565 mm | 580 mm | 600 mm |
| Seat Tube Angle | 75.5 ° | 74.5 ° | 73.5 ° | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 70.75 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 155 mm | 170 mm | 195 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1031 mm | 1032 mm | 1033 mm | 1037 mm | 1043 mm | 1052 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 753 mm | 775 mm | 793 mm | 810 mm | 828 mm | 854 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview

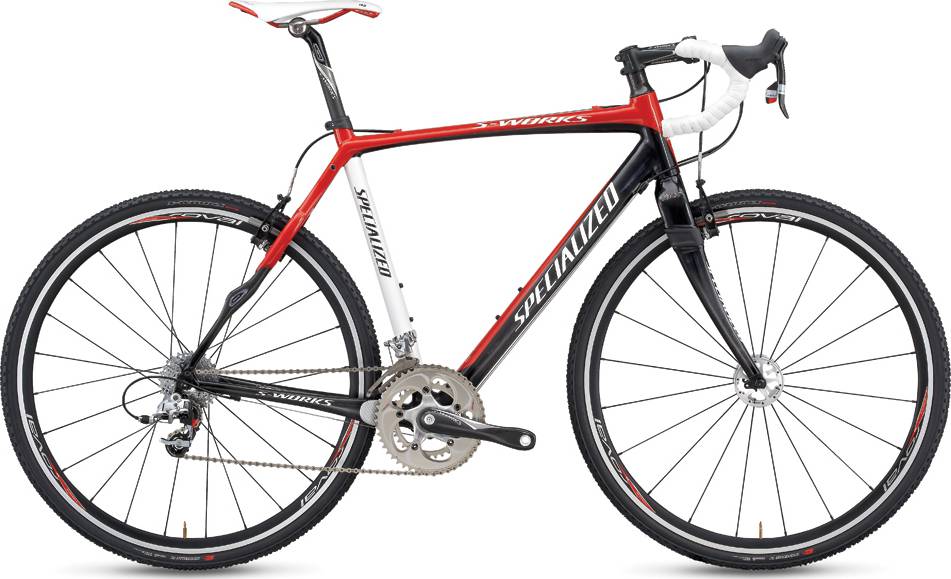

S-Works Tricross Carbon is part of the Specialized Tricross model. 27 bikes variations carry this model name so far. Take a sneak peek at all Specialized Tricross bikes models from 2009, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Touring bikes average price
Our math shows that the average cost of a dependable Touring bike is 1007$. However, even though the average price of a Touring bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
S-Works Tricross Carbon components
Fork material
S-Works Tricross Carbon has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the S-Works Tricross Carbon bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The S-Works Tricross Carbon has Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
S-Works Tricross Carbon comes in 6 sizes, that range from 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, it won’t take much to find one that’s right for you.
