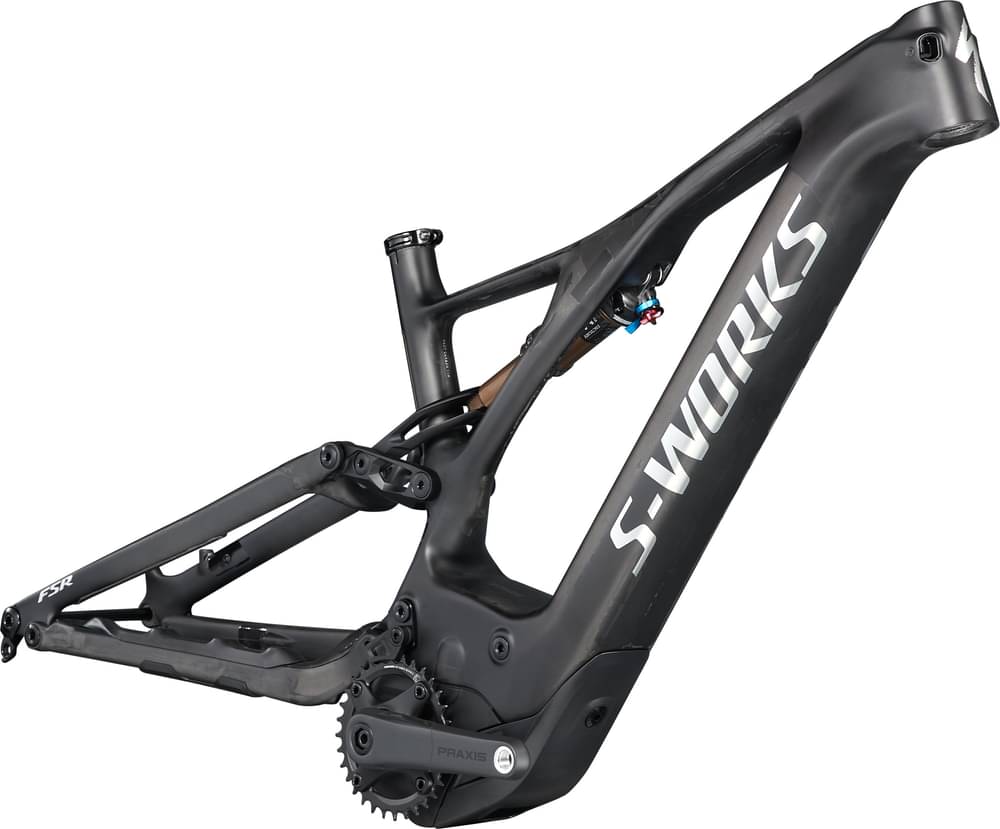

Specialized S-Works Turbo Levo Frameset 2021
2021 E-bike
Estimate price |
8,028$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 150mm -
Groupset SRAM -
Suspension Full -
Motor Specialized 250W 90Nm mid-drive -
Battery Specialized M2-700, integrated battery w/rock guard, 700Wh
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, dropper post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
Rear Shock
Fox Float DPS Factory, Kashima, 3- position adjustment, 52.5x210mm, Kashima coating, Rx Trail Tune
Drivetrain
Crank
Praxis Carbon M30, custom offset, SRAM X-Sync Eagle, 104BCD, 32T, steel
Motor & Battery
Motor
Specialized Turbo Full Power System 2.1 Motor
Battery
Specialized M2-700, integrated battery w/rock guard, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 347.5 mm | 347.5 mm | 347.5 mm | 347.5 mm |
| Front Center | 729 mm | 749 mm | 781 mm | 812 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 603 mm | 603 mm | 631 mm | 644 mm |
| Reach | 412 mm | 432 mm | 452 mm | 477 mm |
| Top Tube Length | 574 mm | 597 mm | 628 mm | 661 mm |
| Seat Tube Angle | 75.04 ° | 74.79 ° | 74.48 ° | 74.14 ° |
| Seat Tube Length | 380 mm | 410 mm | 455 mm | 505 mm |
| Head Tube Angle | 66.04 ° | 66.04 ° | 66.04 ° | 66.04 ° |
| Head Tube Length | 95 mm | 95 mm | 125 mm | 140 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1179 mm | 1199 mm | 1232 mm | 1263 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 757 mm | 757 mm | 778 mm | 784 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
S-Works Turbo Levo Frameset belongs to the Specialized E Turbo Levo model. Specialized released 86 frames variations of this model so far. You can easily view all of the Specialized E Turbo Levo frames models from 2021, here.
Model range prices
The most economical model, the Specialized S-Works Turbo Levo Frameset 2021 has a starting price of 7431$. Specialized S-Works Turbo Levo SL Frameset 2021 on the other hand is the most expensive at 8000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro frames average price
According to our math, the average price for a trustworthy Enduro frame is 1895$. However, you could also get a good Enduro frame even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Specialized S-Works Turbo Levo Frameset price was 7431$. Comparing this to the average Enduro frame price, we see that the price is 292.14% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
S-Works Turbo Levo Frameset components
Rear Shock
From the factory, it comes with the Fox Float DPS Factory rear shock model, which has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the S-Works Turbo Levo Frameset frame is equipped with the 29″ model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your frame react slower to obstacles you may encounter.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
