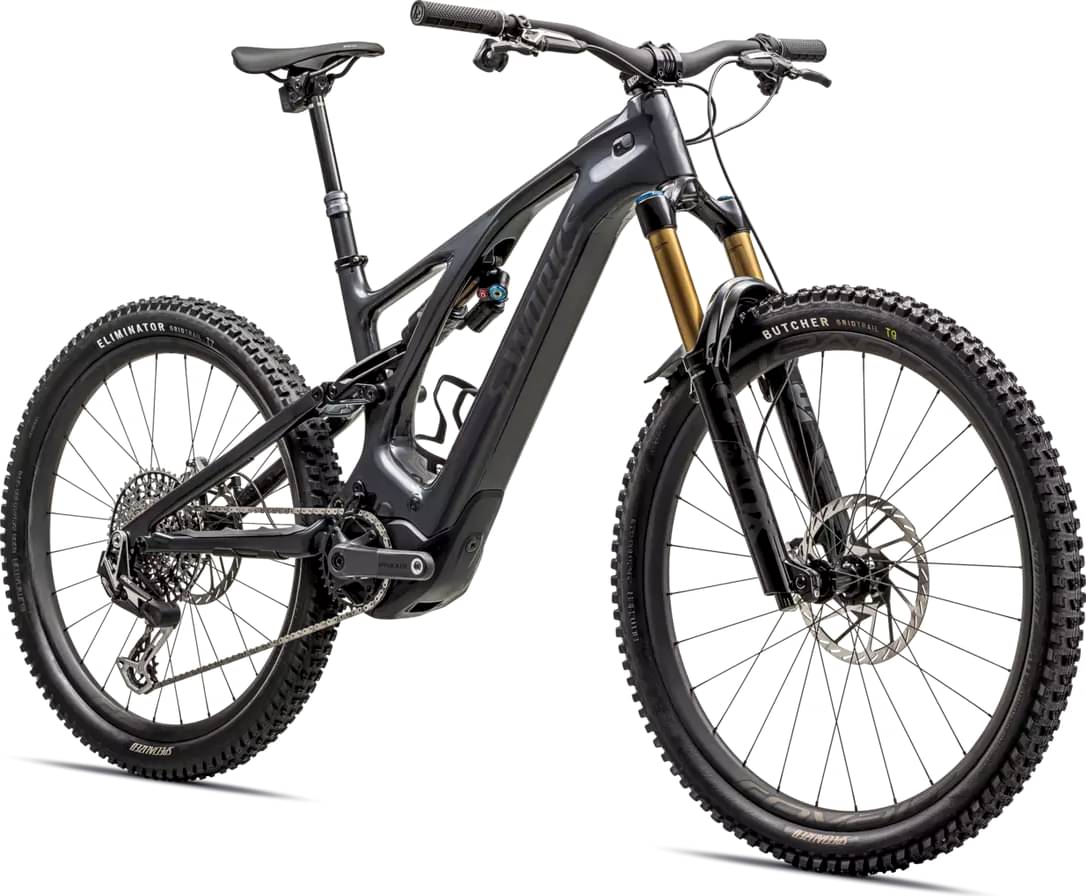

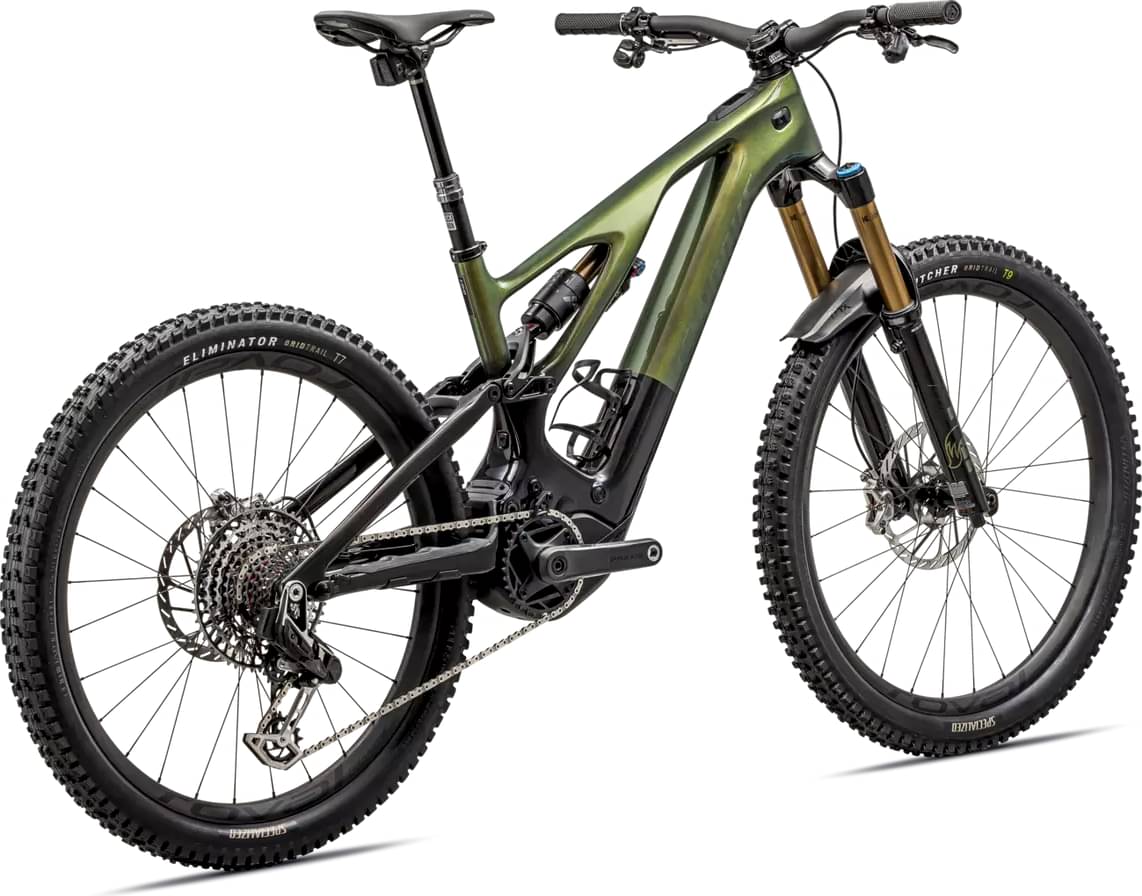

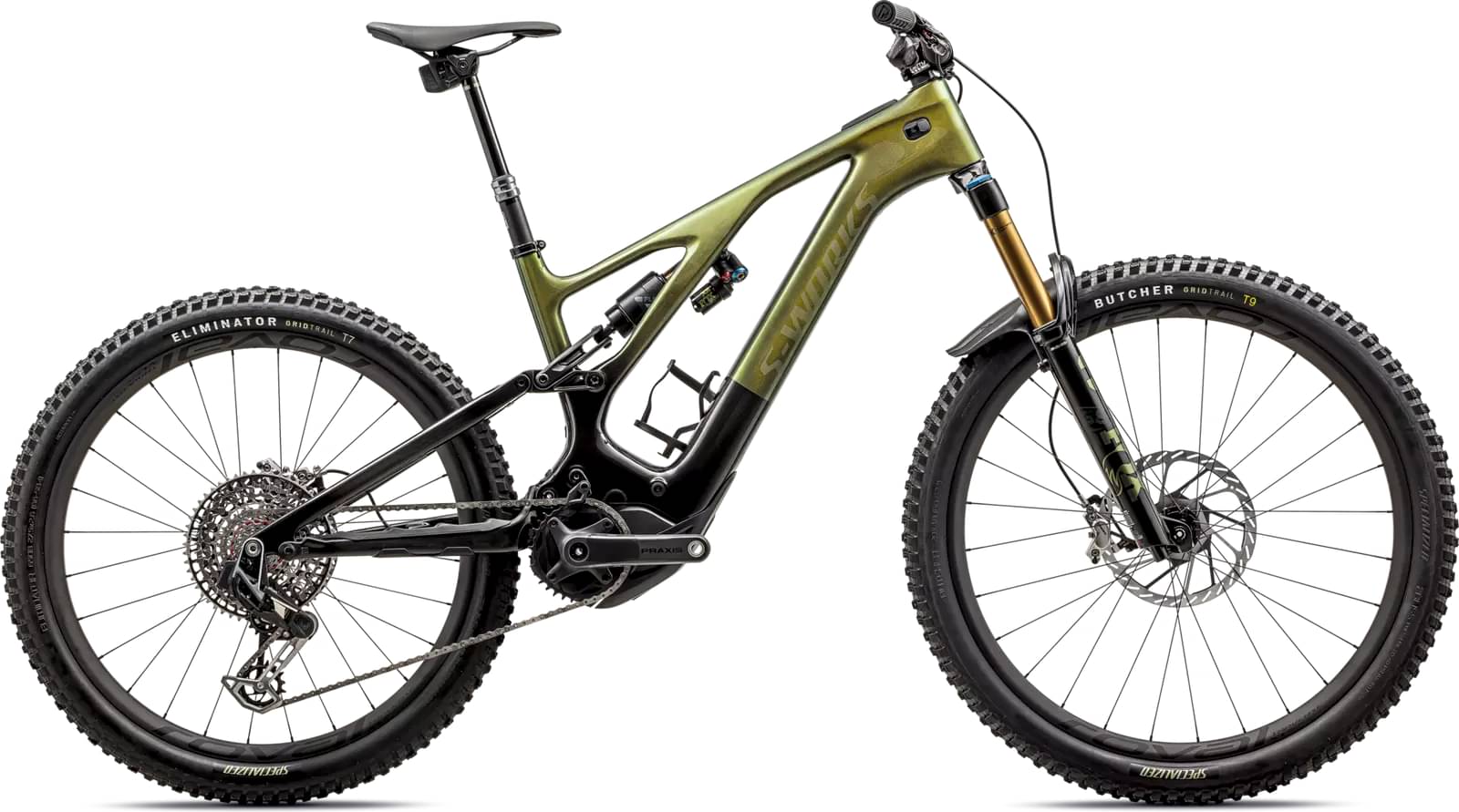

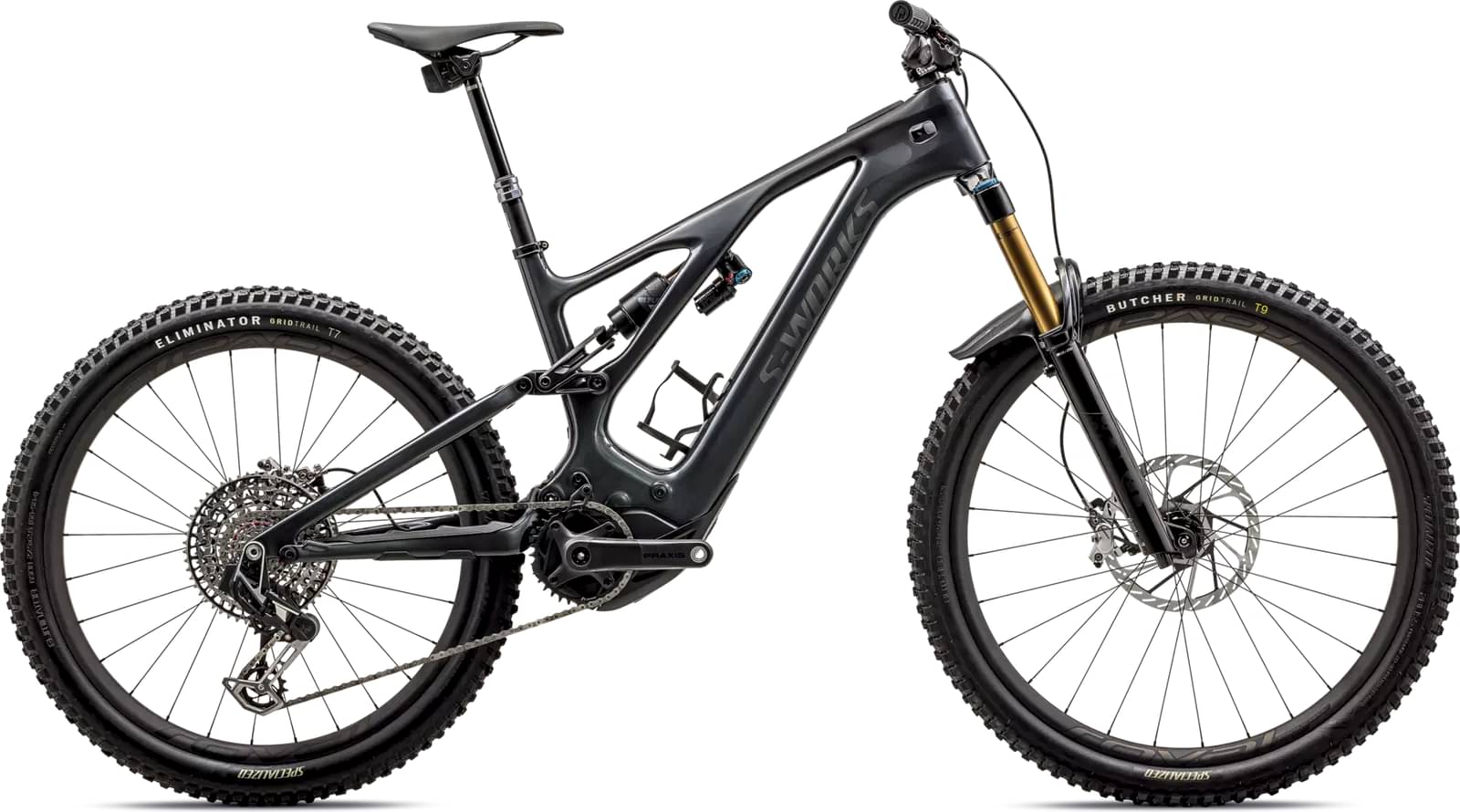

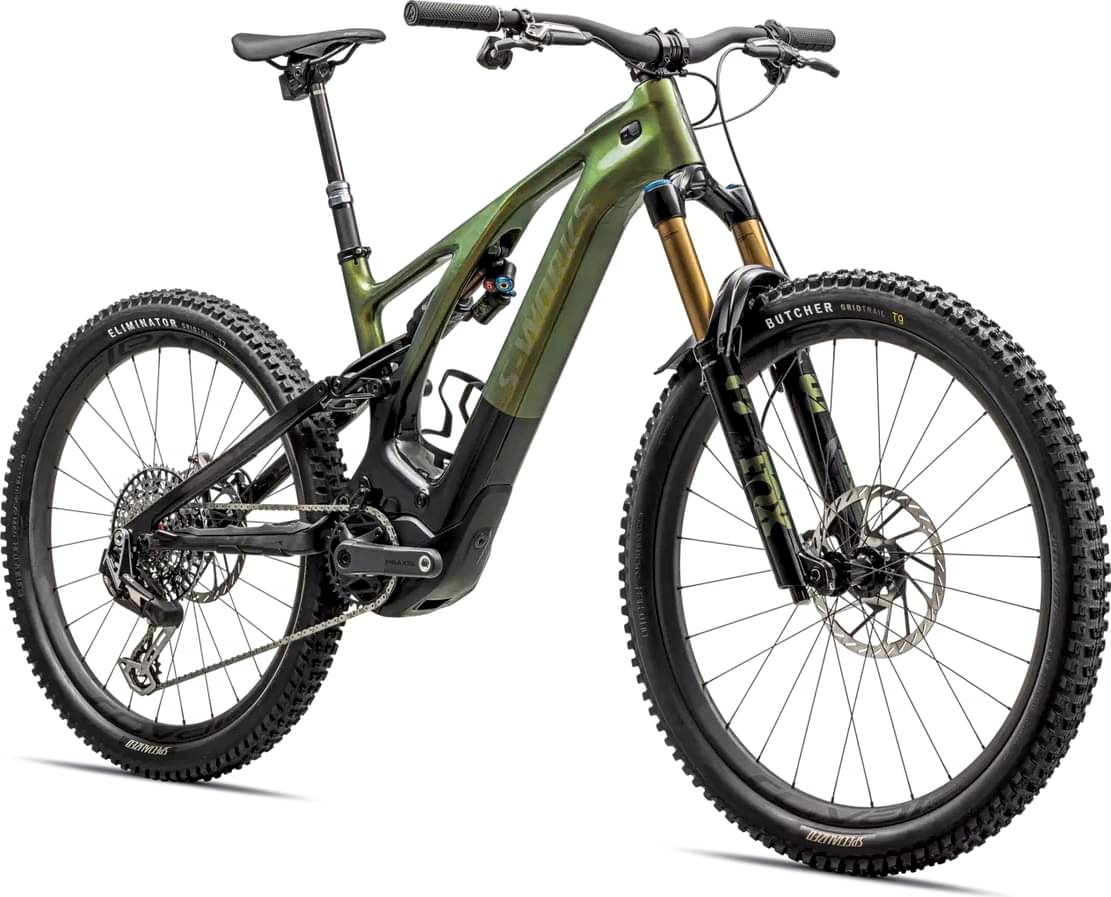

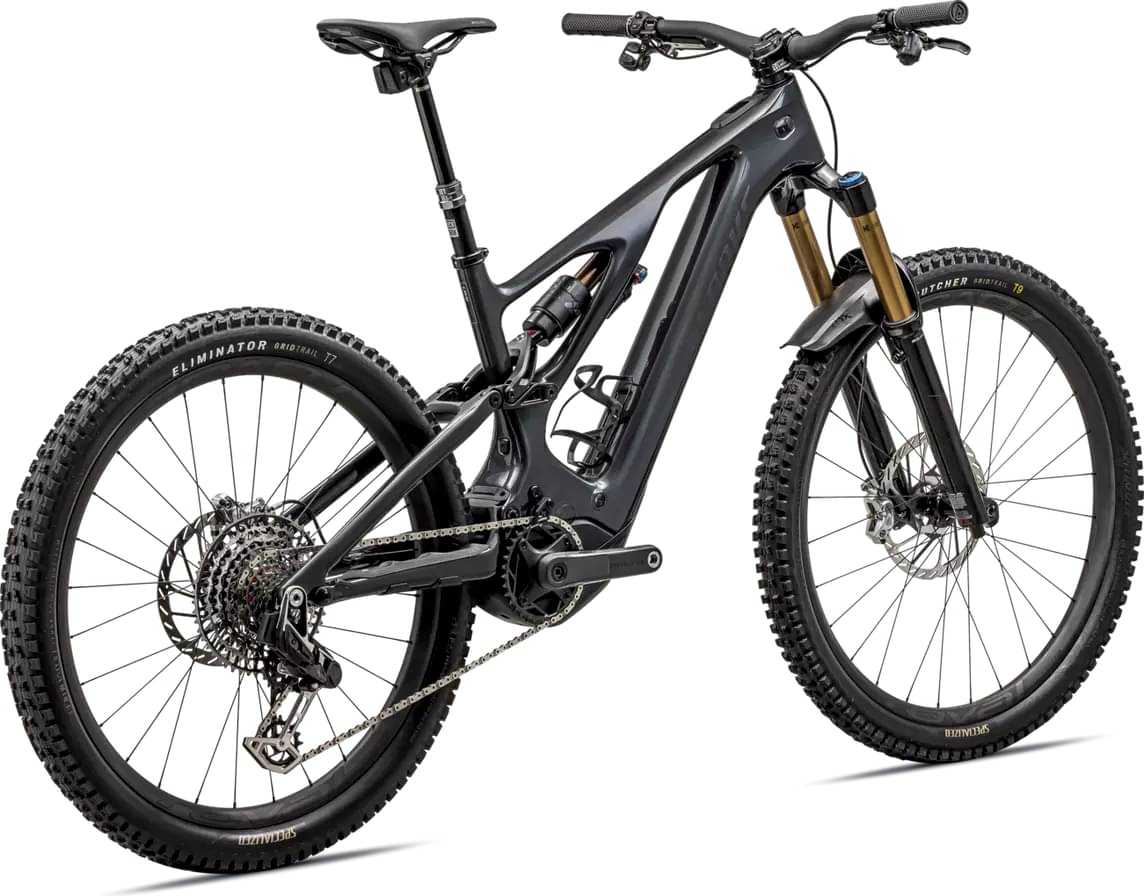

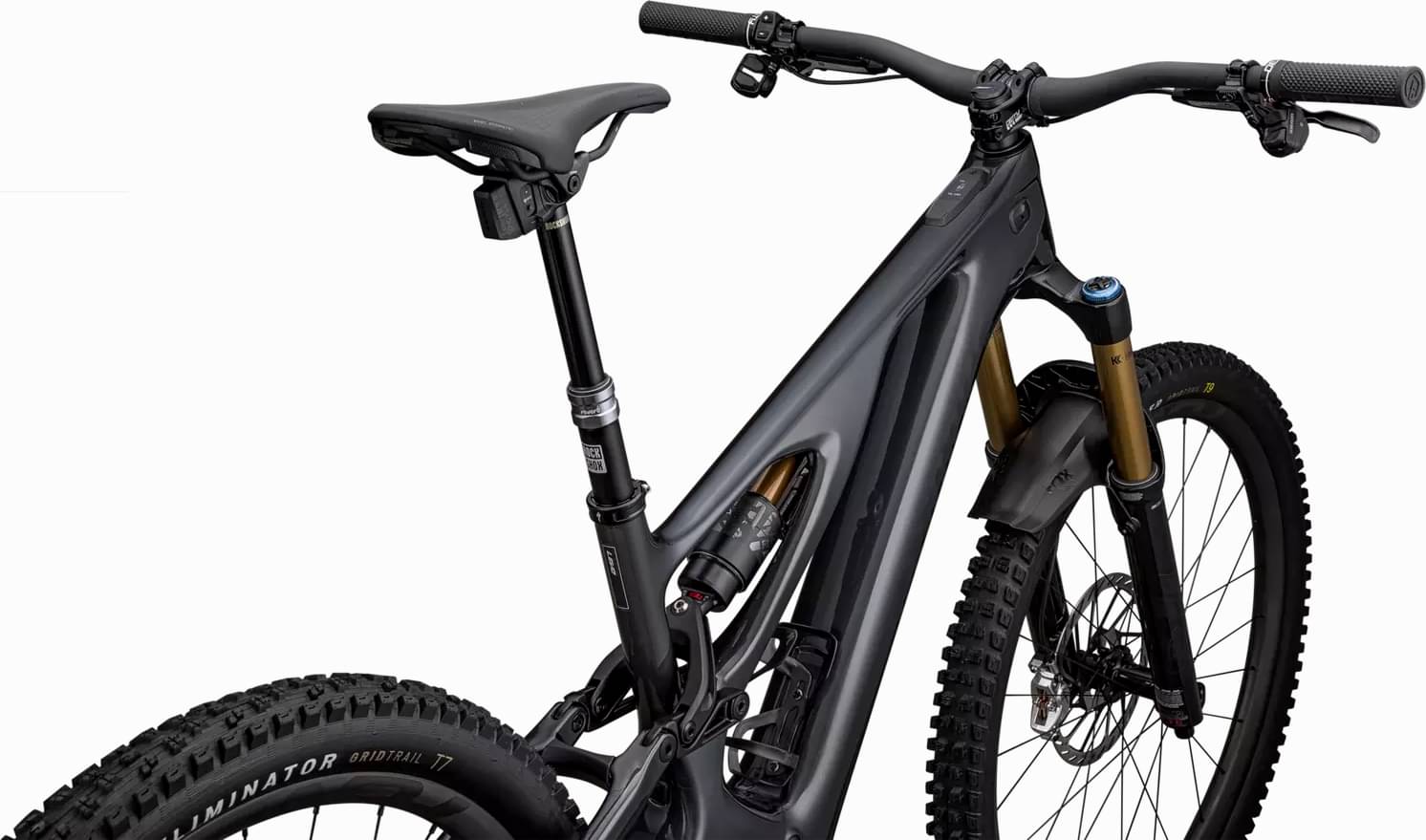

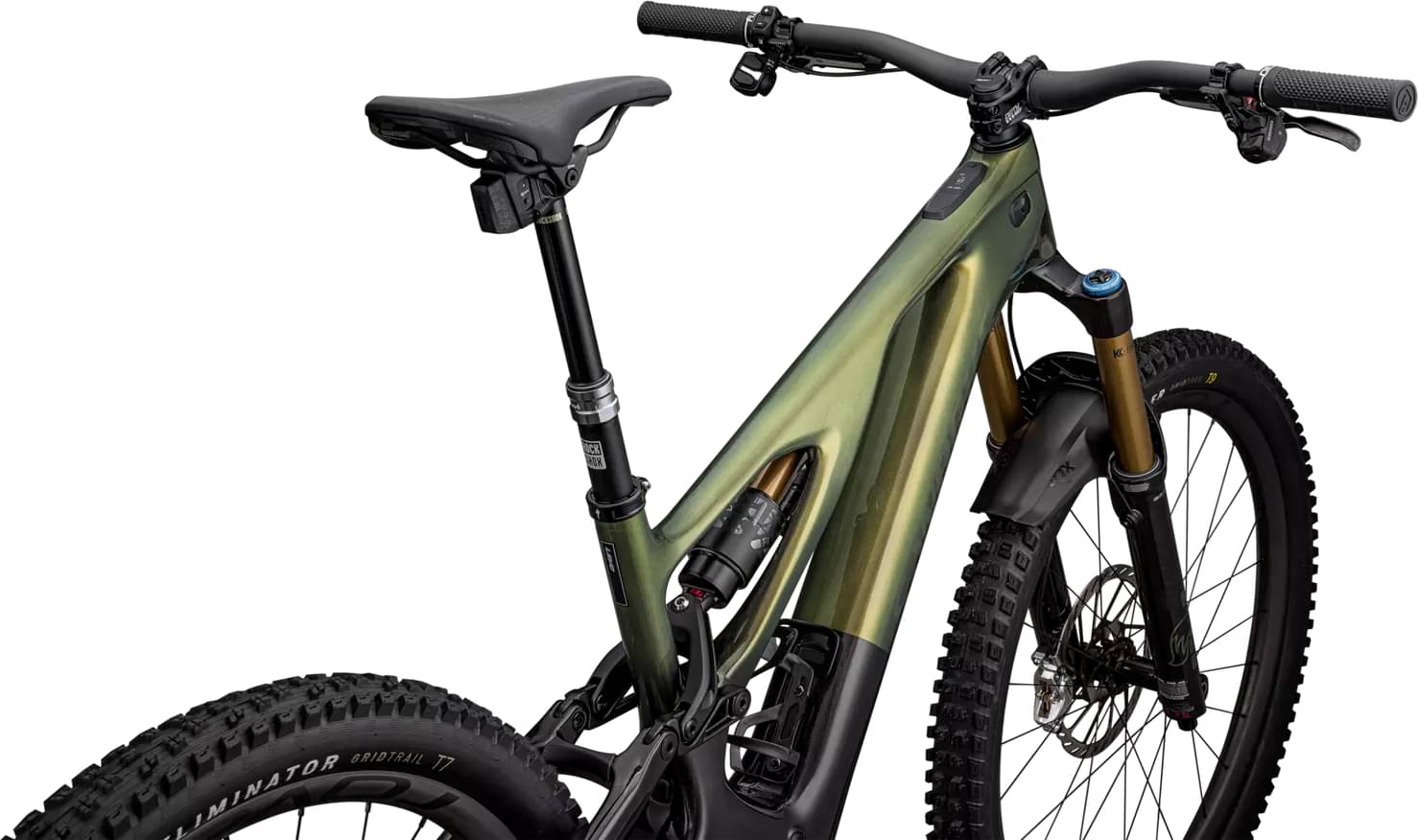

Specialized S-Works Turbo Levo T-Type 2023
2023 E-bike
Estimate price |
14,000$
Weight | 22.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset XX Eagle Transmission, Praxis -
Suspension Full -
Motor Specialized mid-drive -
Battery Specialized M3-700, Integrated battery, 700Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Suspension Fork
Fox 38 Factory, Grip 2 Damper, 29", 160mm Travel, Kashima, 44mm Offset

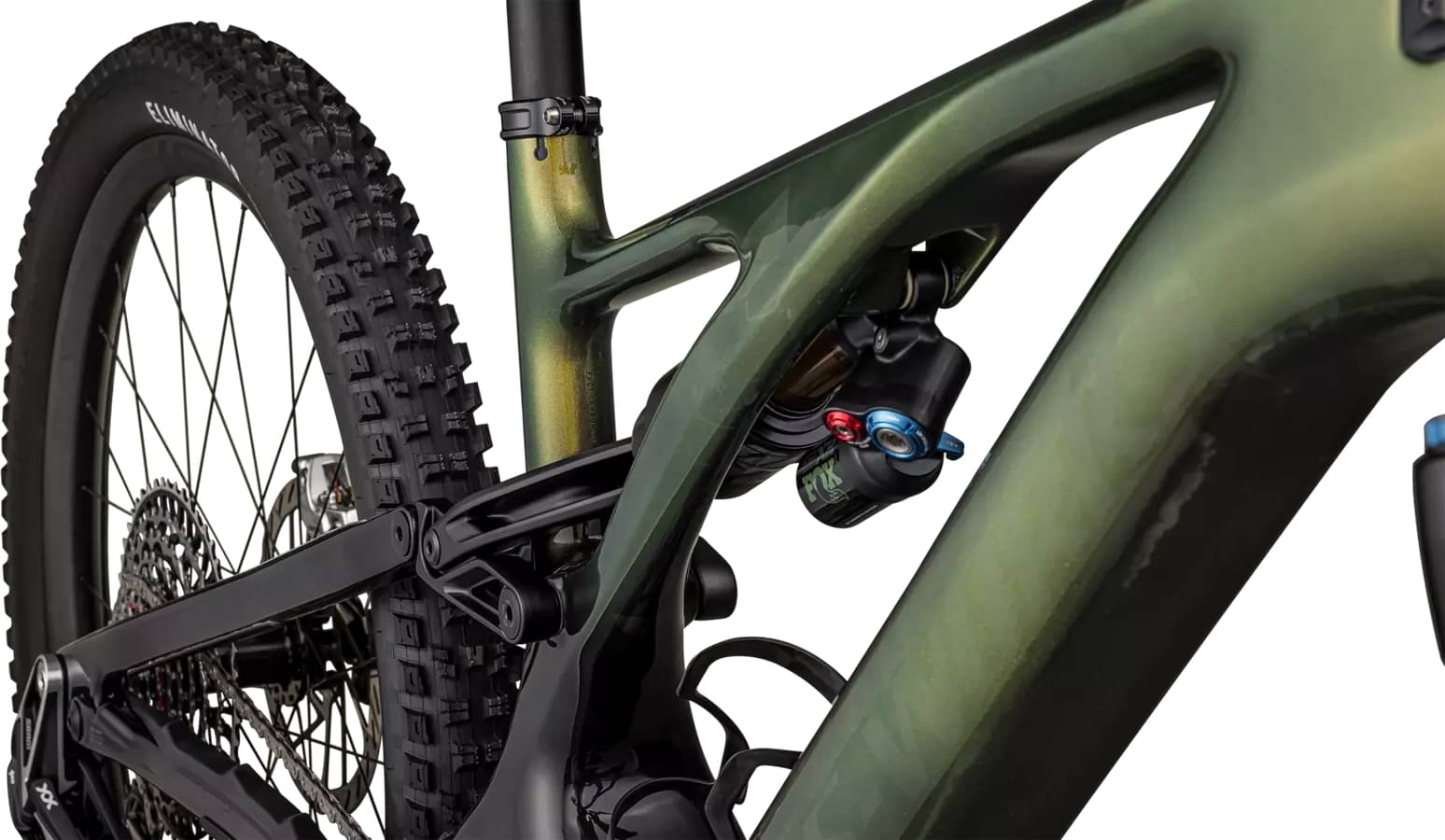

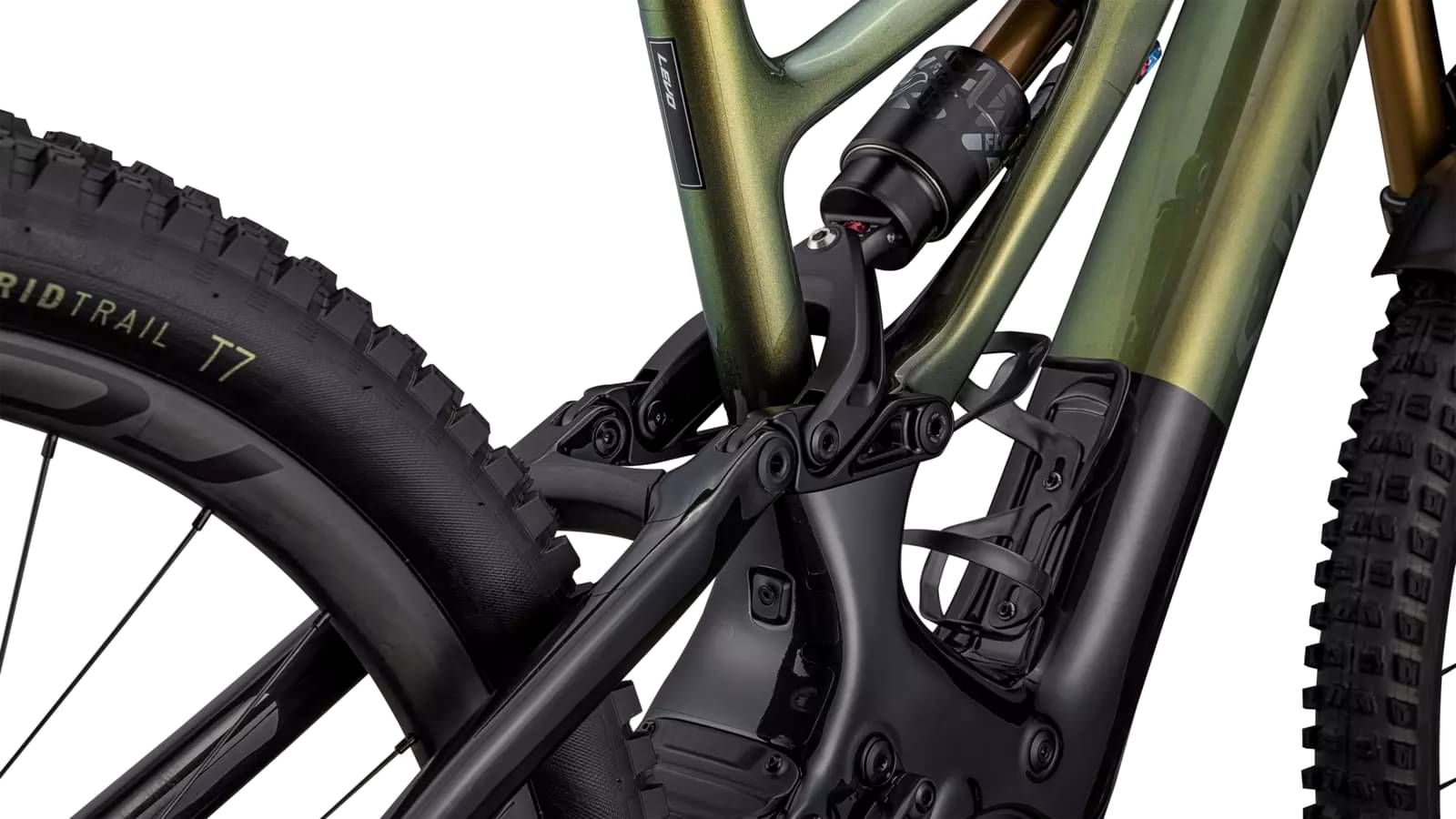

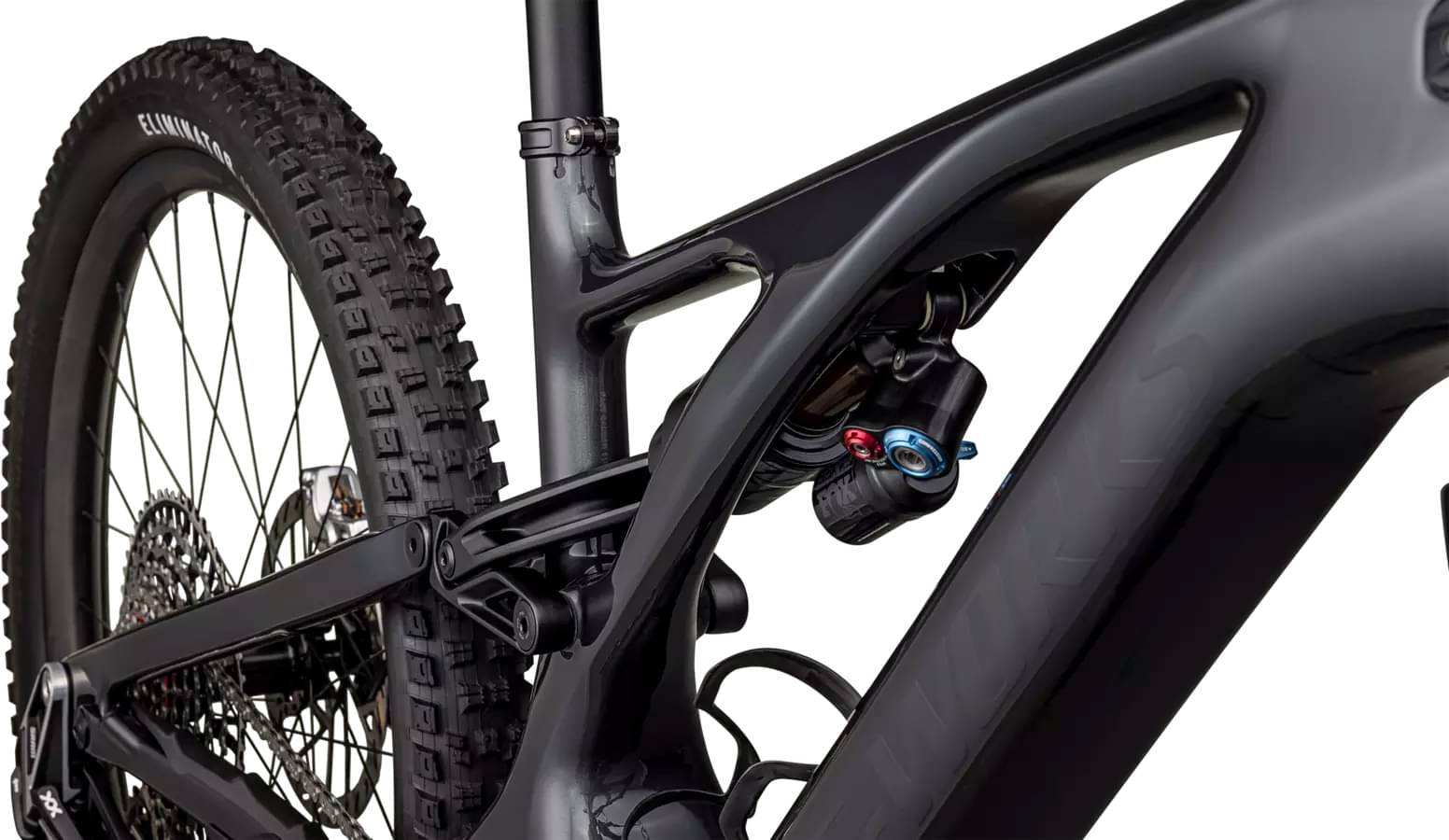

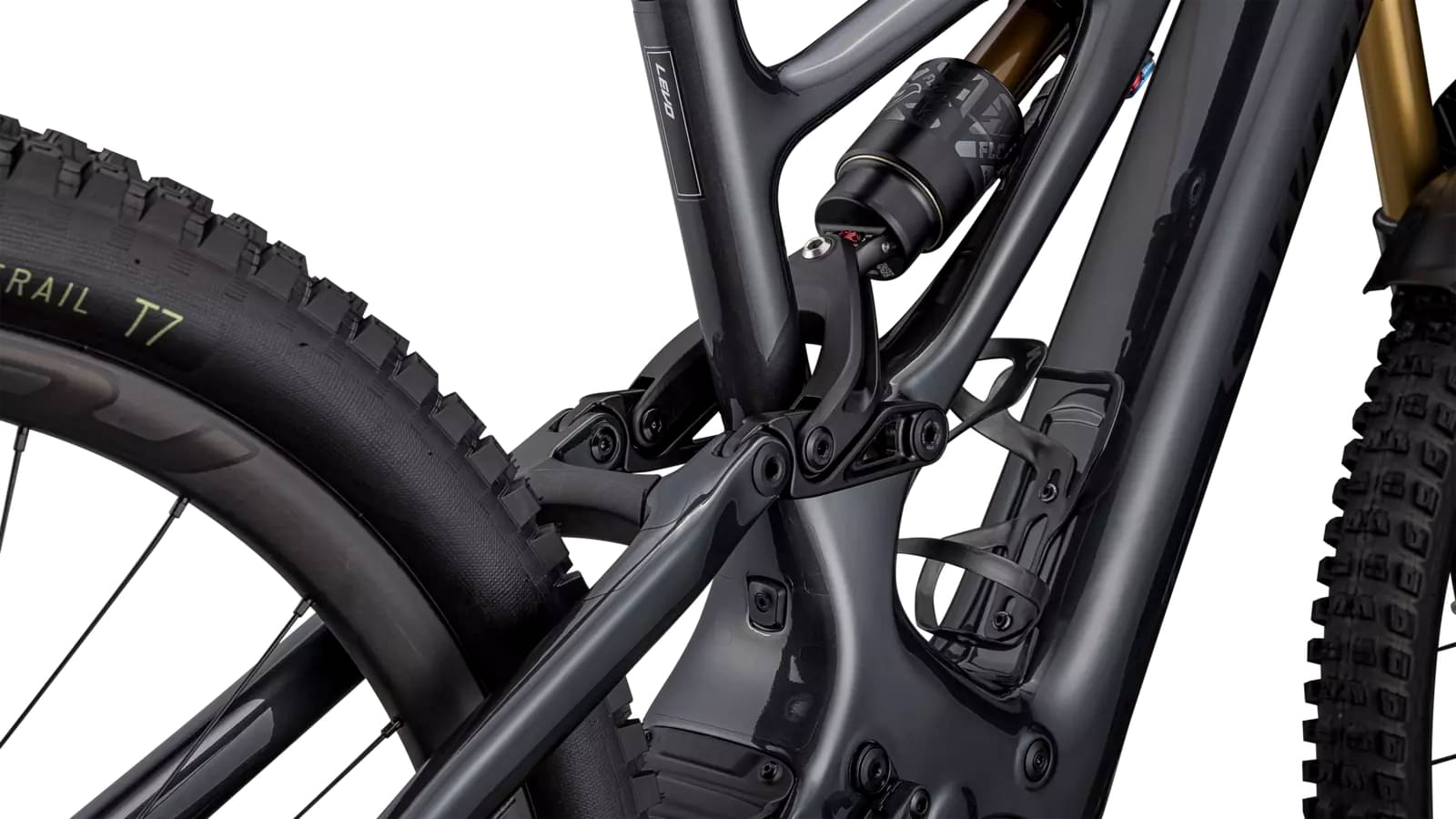

Rear Shock
Fox Float X2 Factory, Kashima, 210x55mm
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission Derailleur
Shift Levers
SRAM XX Eagle Transmission Cassette, 12spd, 10-52t
Cassette
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
Crank
Praxis Carbon/Custom Offset/ISIS Spindle Interface, 160mm, New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
Chain
SRAM XX Eagle Transmission Flattop Chain
Wheels
Rims
Front: Roval Traverse SL 29, Rear: Roval Traverse SL 27.5, 148mm spacing, XD freehub body
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Brakes
Brakes
Front: SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 220mm rotor, Rear: SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 220mm rotor

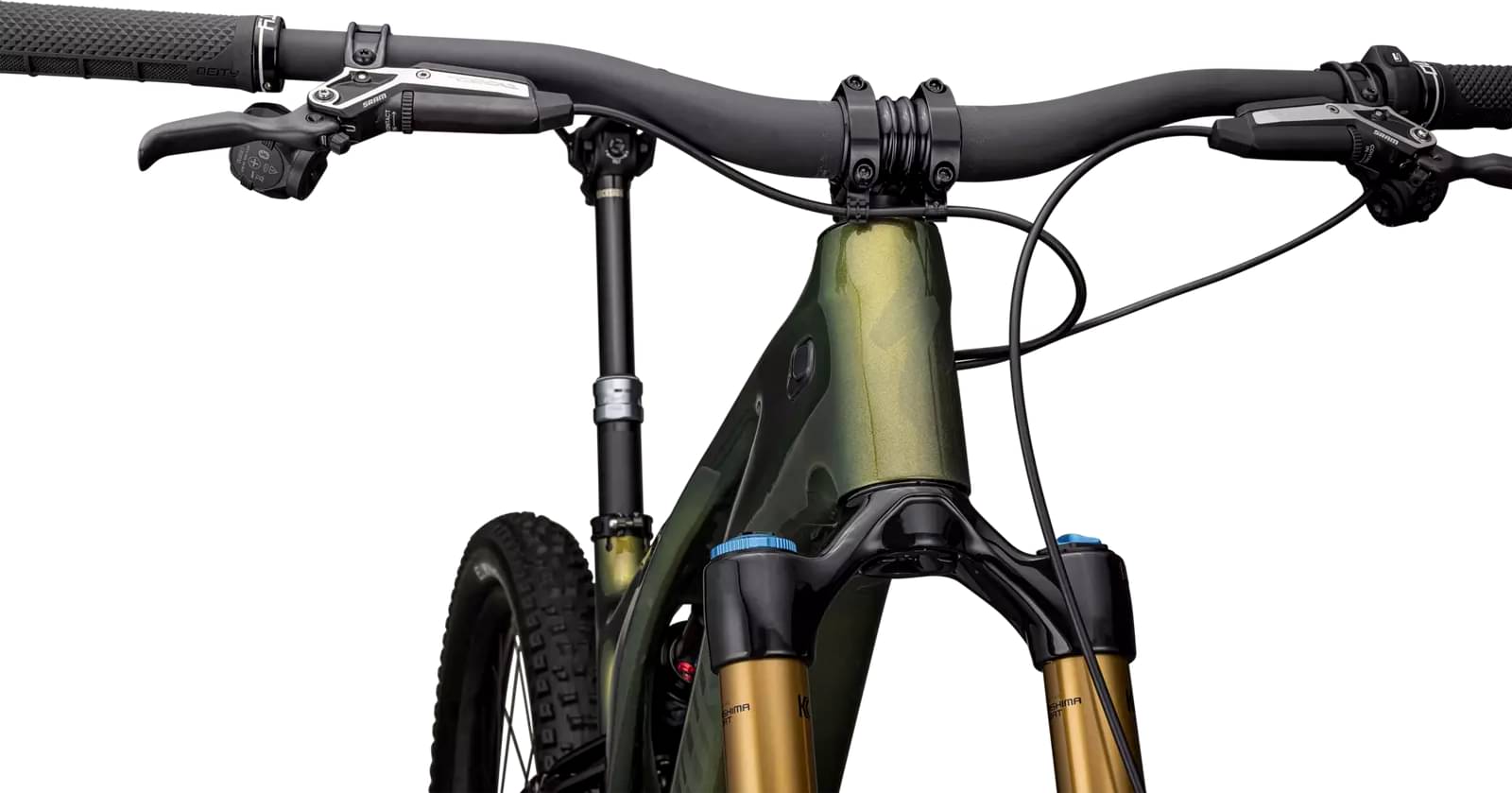

Cockpit
Stem
Deity, 35.0mm

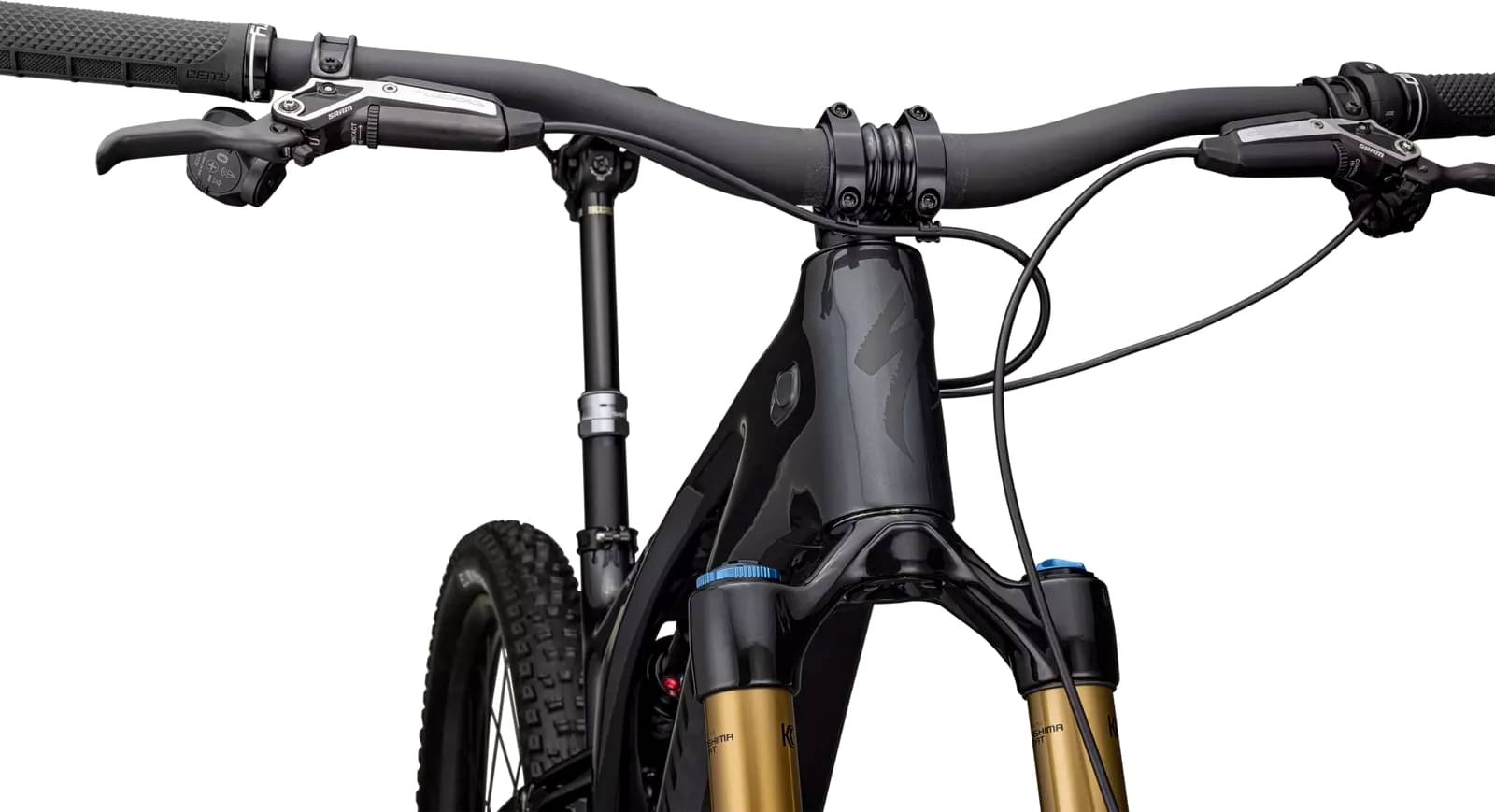

Handlebar
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Grips
Deity Grips
Seat
Saddle
Bridge, 155/143mm, Hollow Ti-rails
Seatpost
RockShox Reverb AXS, 30.9, 1X remote, (S2: 125mm, S3: 150mm, S4-S6: 170mm)
Motor & Battery

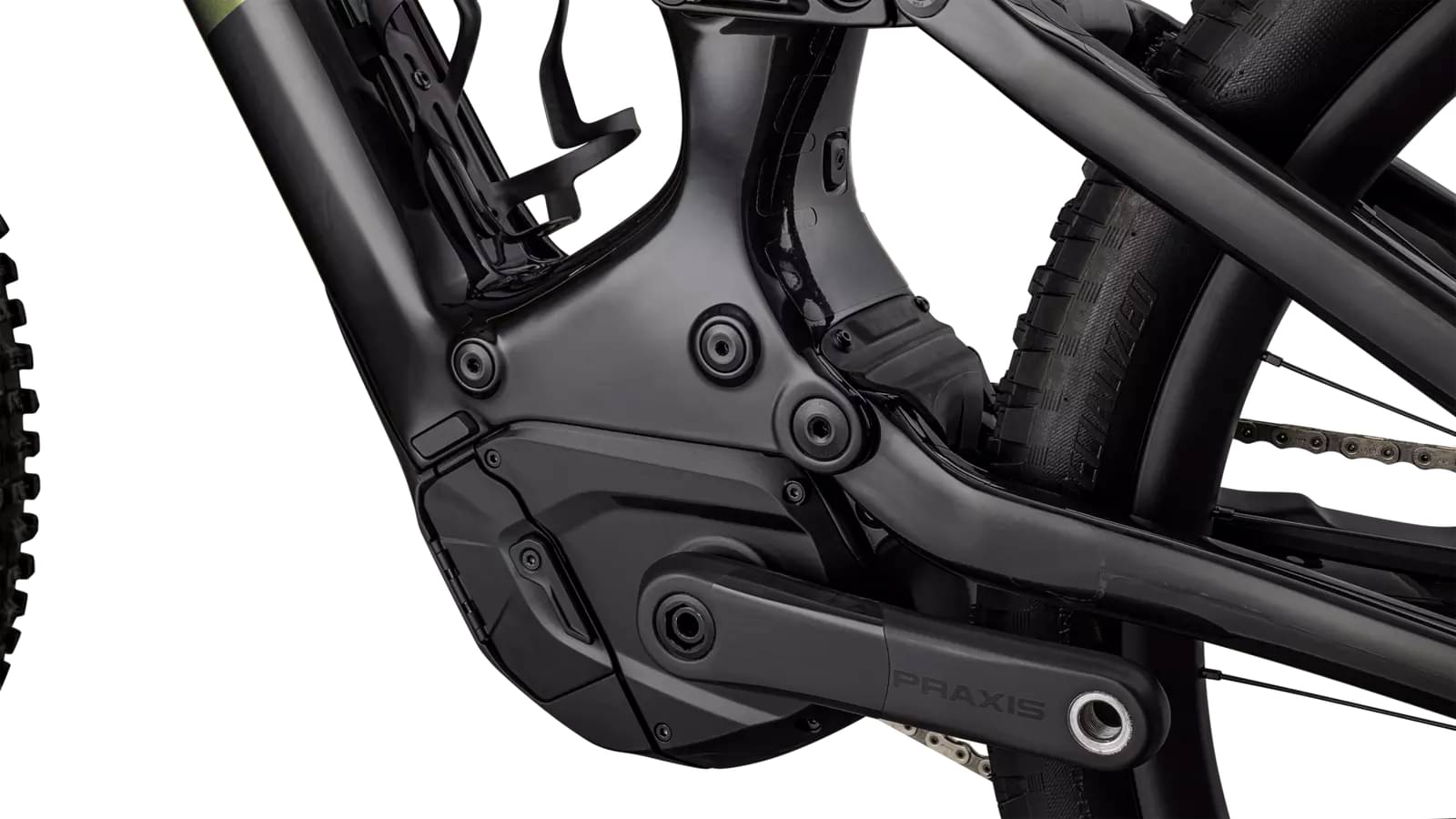

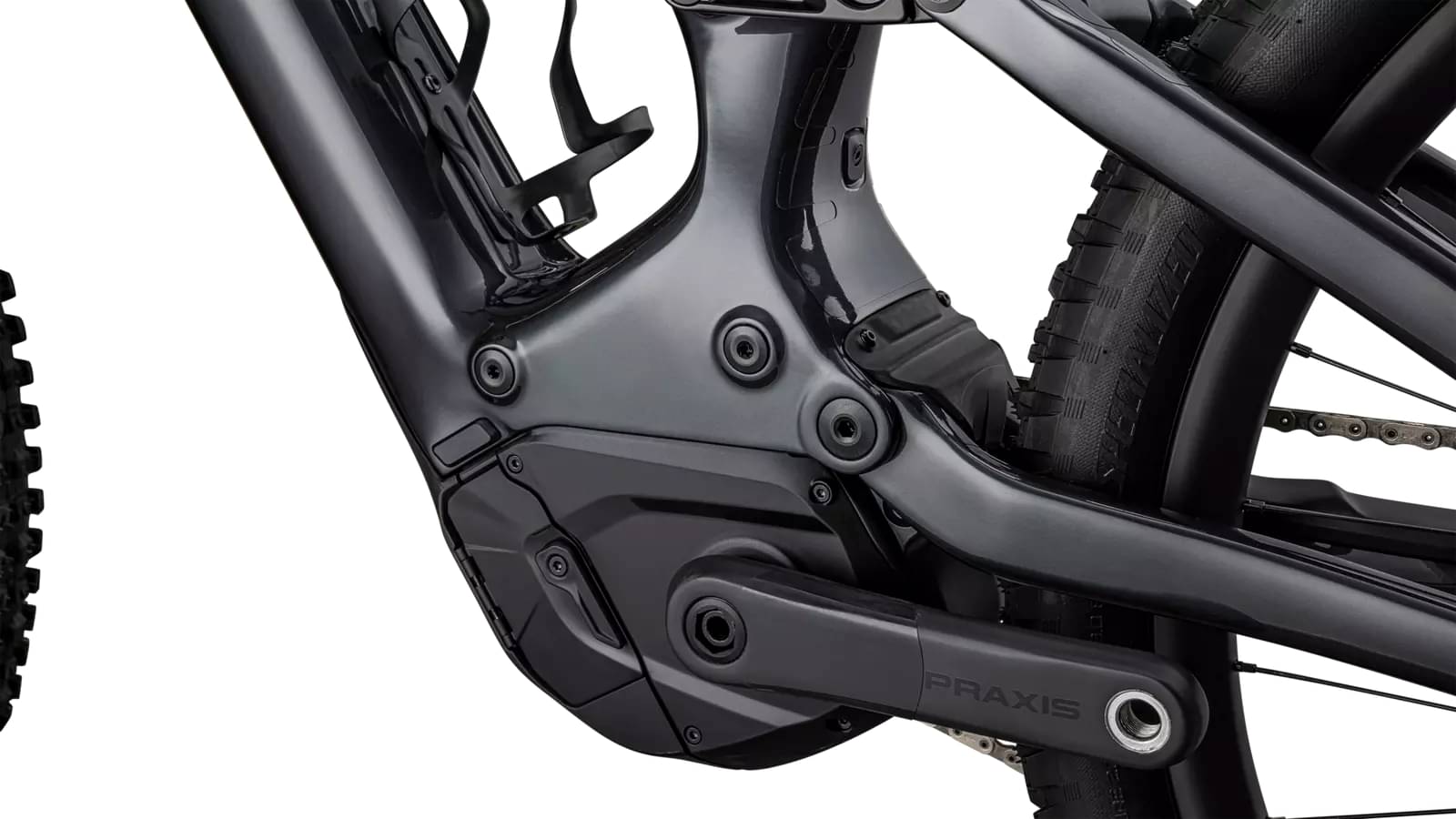

Motor
Specialized 2.2 Custom Rx Trail Tuned Motor
Battery
Specialized M3-700, Integrated battery, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.33 mm | 1.28 mm | 1.22 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 760 mm | 784 mm | 814 mm | 843 mm | 878 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 624 mm | 633 mm | 642 mm | 651 mm | 660 mm |
| Reach | 439 mm | 459 mm | 484 mm | 509 mm | 539 mm |
| Seat Tube Angle | 77.2 ° | 76.7 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1207 mm | 1232 mm | 1262 mm | 1291 mm | 1325 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 783 mm | 790 mm | 794 mm | 795 mm | 797 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
Model Overview
S-Works Turbo Levo T-Type is a Specialized E Turbo Levo model. 86 e-bikes variations carry this model name so far. Take a sneak peek at all Specialized E Turbo Levo e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Specialized Turbo Levo Alloy 2023 has a starting price of 5500$. Specialized S-Works Turbo Levo 2023 on the other hand is the most expensive at 15000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 14000$. If we compare this with the average Enduro e-bike cost we notice that the price is 192.58% more expensive.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.3 kg (51.37 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
S-Works Turbo Levo T-Type weighs 22.5 kg (49.6 lbs) and is slightly lighter than the average. To sum up, it’s 3.56% lighter than the average weight of Enduro e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
S-Works Turbo Levo T-Type components
Fork
The Fox Factory Float 38 is included from the factory. It has a travel distance of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float X2 Factory rear shock model, which has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on S-Works Turbo Levo T-Type are the 29″ carbon type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized S-Works Turbo Levo T-Type is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 5 sizes. They vary from 157 cm – 203 cm (5.15 ft – 6.66 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
