Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized FACT 11r carbon, FACT construction, aero-shaped tubing, compact race design, tapered 1-1/8"" to 1-3/8"" headtube, internal cable routing, carbon OSBB
Suspension Fork
S-Works FACT carbon full monocoque, OS race for 1-3/8"" bearing
Drivetrain
Rear Derailleur
Shimano Dura-Ace, 11-speed
Front Derailleur
Shimano Dura-Ace, braze-on, 11-speed
Shift Levers
Shimano Dura-Ace STI, 11-speed
Cassette
Shimano Dura-Ace, 11-speed, 11-28
Crank
S-Works FACT carbon, OSBB
Bottom Bracket
OS integrated, CeramicSpeed, sealed ceramic bearings
Chain
Shimano Dura-Ace, 11-speed
Pedals
Nylon flat test ride, loose ball, w/ reflectors
Wheels
Rims
Roval Rapide CLX 60, w/ CeramicSpeed bearings
Tires
S-Works Turbo, 220TPI, foldable aramid bead, BlackBelt protection, 700x24c
Brakes
Brakes
Shimano Dura-Ace
Brake Levers
Shimano Dura-Ace
Cockpit
Stem
S-Works SL, 3D forged 7050 aluminum, 4-bolt, 31.8mm
Handlebar
S-Works Tarmac Bend, FACT carbon, 140mm drop, 85mm reach
Headset
1-1/8"" upper and 1-3/8"" lower, hybrid cartridge lightweight bearings, w/ custom Venge top cap
Seat
Saddle
Body Geometry Romin Evo Pro, carbon rails, 143mm
Seatpost
S-Works Venge, FACT carbon, flippable 20/0mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.37 mm | 1.41 mm | 1.43 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 576 mm | 583 mm | 590 mm | 605 mm | 612 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 57 mm | 57 mm | 56 mm | 56 mm | 53 mm |
| Stack | 505 mm | 527 mm | 543 mm | 565 mm | 592 mm | 613 mm |
| Reach | 384 mm | 384 mm | 385 mm | 394 mm | 400 mm | 406 mm |
| Top Tube Length | 517 mm | 536 mm | 547 mm | 564 mm | 581 mm | 599 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 467 mm | 487 mm | 507 mm | 527 mm | 547 mm | 577 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 190 mm | 210 mm |
| Chainstay Length | 404 mm | 404 mm | 404 mm | 404 mm | 406 mm | 409 mm |
| Wheelbase | 969 mm | 969 mm | 977 mm | 985 mm | 1002 mm | 1012 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 740 mm | 765 mm | 788 mm | 808 mm | 833 mm | 859 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |

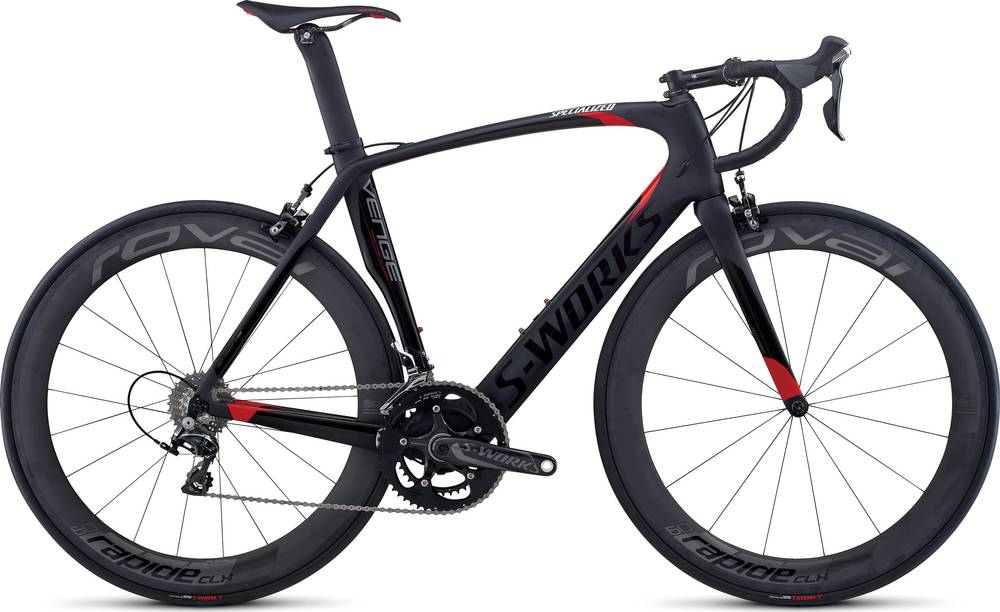

Model Overview
S-Works Venge Dura-Ace belongs to the Specialized Venge model. 62 bikes variations carry this model name so far. You can easily view all of the Specialized Venge bikes models from 2014, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Aero bikes
Our math shows that the average cost of a dependable Aero bike is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on S-Works Venge Dura-Ace are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, it won’t take much to find one that’s right for you.
