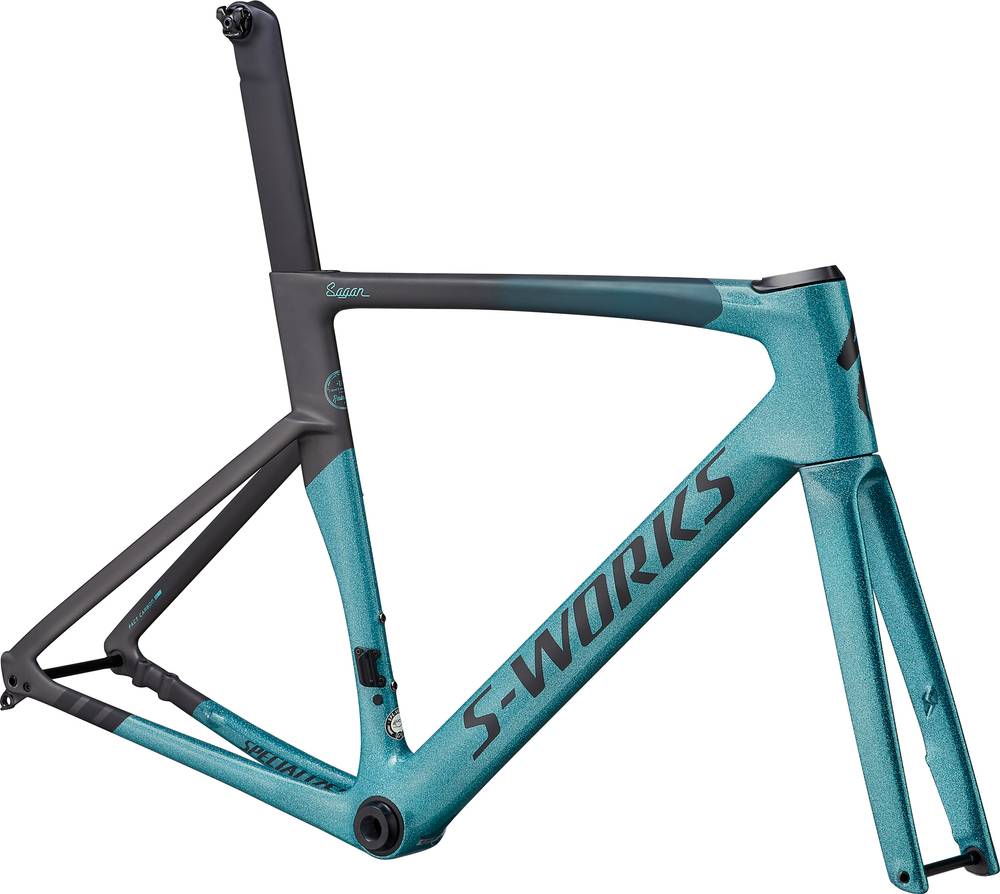

Specialized S-Works Venge Frameset – Sagan Collection 2019
2019 Road
Estimate price |
6,250$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11r carbon, Rider-First Engineered™, Win Tunnel Engineered, internal electric only cable routing, OSBB, 12x142mm thru-axle, flat-mount disc
Suspension Fork
S-Works FACT 11r carbon, 100x12mm thru-axle, flat-mount disc
Drivetrain
Bottom Bracket
OSBB, CeramicSpeed bearings
Seat
Seatpost
2019 S-Works Venge aero seatpost, FACT carbon, Di2-compatible
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.35 mm | 1.38 mm | 1.39 mm | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 574 mm | 577 mm | 579 mm | 591 mm | 606 mm | 613 mm |
| Rake | 47 mm | 47 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 63 mm | 58 mm | 58 mm | 55 mm | 55 mm | 52 mm |
| Stack | 508 mm | 521 mm | 538 mm | 559 mm | 585 mm | 606 mm |
| Reach | 382 mm | 387 mm | 391 mm | 402 mm | 409 mm | 415 mm |
| Top Tube Length | 512 mm | 535 mm | 544 mm | 566 mm | 581 mm | 599 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 455 mm | 480 mm | 495 mm | 518 mm | 537 mm | 567 mm |
| Head Tube Angle | 71.75 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 104 mm | 115 mm | 133 mm | 153 mm | 180 mm | 200 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 976 mm | 979 mm | 982 mm | 995 mm | 1009 mm | 1016 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 740 mm | 760 mm | 777 mm | 799 mm | 821 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model
S-Works Venge Frameset – Sagan Collection is a Specialized Venge model. 62 frames variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Specialized S-Works Venge Frameset 2019 has a starting price of 5500$. Specialized S-Works Venge Frameset – Sagan Collection 2019 on the other hand is the most expensive at 6250$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Aero frames
According to our math, the average price for a trustworthy Aero frame is 2657$. However, even though the average price of an Aero frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Specialized S-Works Venge Frameset – Sagan Collection price was 6250$. If we compare this with the average Aero frame cost we notice that the price is 135.23% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
S-Works Venge Frameset – Sagan Collection components
Fork material
The fork on this frame is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
S-Works Venge Frameset – Sagan Collection comes in 6 sizes, that range from 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, you can easily find one that suits you.
