Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11r carbon, FACT IS construction, aero tube shape, compact race design, tapered 1-1/8"" to 1-3/8"" head tube, internal cable routing, carbon OSBB
Suspension Fork
S-Works FACT carbon, full-monocoque, OS race for 1-3/8"" bearing
Drivetrain
Bottom Bracket
Press-in OSBB cups w/ ceramic bearings
Cockpit
Headset
1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings, w/ custom Venge top cap
Seat
Seatpost
SW Venge FACT carbon, flippable 20/0mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.37 mm | 1.41 mm | 1.43 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 576 mm | 583 mm | 590 mm | 605 mm | 612 mm |
| Rake | 45 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 57 mm | 57 mm | 56 mm | 56 mm | 53 mm |
| Stack | 505 mm | 527 mm | 543 mm | 565 mm | 592 mm | 613 mm |
| Reach | 384 mm | 384 mm | 385 mm | 394 mm | 400 mm | 406 mm |
| Top Tube Length | 517 mm | 536 mm | 547 mm | 564 mm | 581 mm | 599 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 467 mm | 487 mm | 507 mm | 527 mm | 547 mm | 577 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 190 mm | 210 mm |
| Chainstay Length | 404 mm | 404 mm | 404 mm | 404 mm | 406 mm | 409 mm |
| Wheelbase | 969 mm | 969 mm | 977 mm | 985 mm | 1002 mm | 1012 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Standover Height | 740 mm | 765 mm | 788 mm | 808 mm | 833 mm | 859 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model

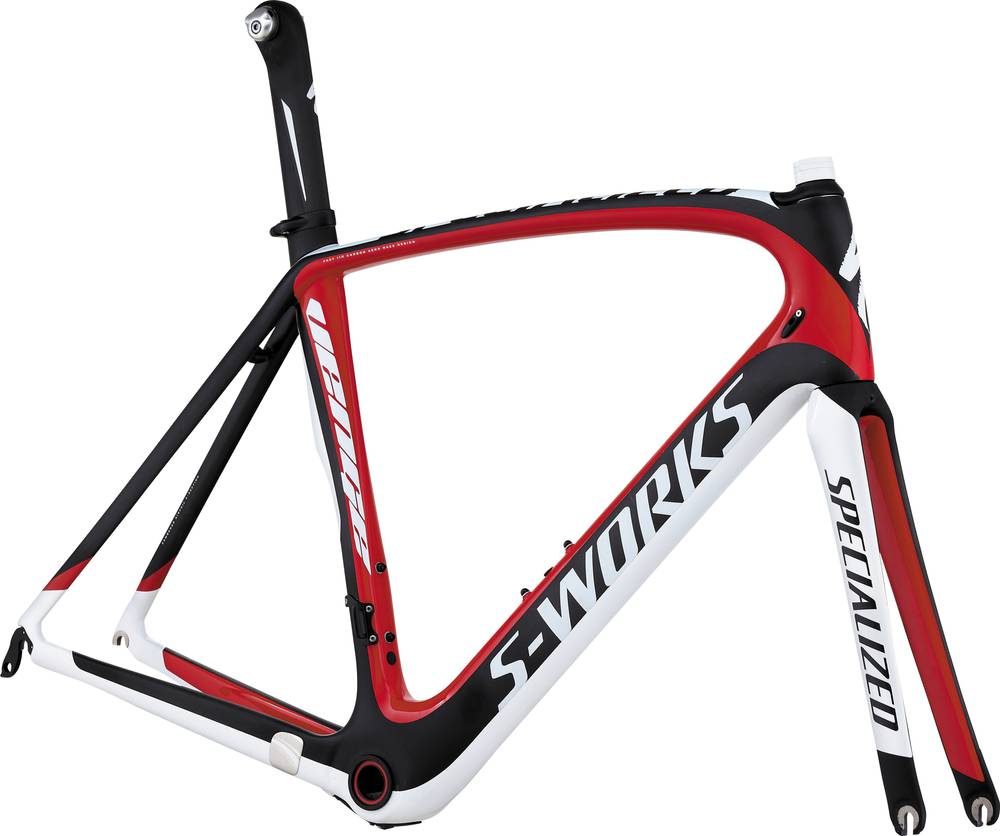

S-Works Venge OSBB Frameset is part of the Specialized Venge model. Specialized launched 62 frames of this model so far. Check out the entire range from 2012 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Aero frames
If you want to purchase a solid Aero frame, it is important to know that the average cost is 2657$. However, this doesn’t mean that if you spend less money on an Aero frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
S-Works Venge OSBB Frameset has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
This frame is available in 6 sizes. They vary from 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, you can easily find one that suits you.
