Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Travel Rear 120mm -
Fork Fox
-
Groupset XTR, SLX -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Safire FSR M5 Manipulated Alloy frame w/ Designs for Women specific ORE TT/DT, sealed cartridge bearing pivots, DMD Direct Mount F. Der, replaceable derailleur hanger, disc only, 120mm travel
Suspension Fork
Fox Talas RL w/ Talas 3, 140/120/100mm, 32mm stancions, mag lower, disc only, compression and rebound adj. w/ LO, alloy steerer
Rear Shock
Fox Triad, custom on-the-fly 3-position switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, rebound adj. 7.25x1.75""
Drivetrain
Rear Derailleur
Shimano RD-M972 Top-normal XTR, Shadow, long-carbon cage
Front Derailleur
Shimano M660 SLX, DMD, top swing, dual pull
Shift Levers
Shimano SL-M660 SLX, trigger, 9-speed
Cassette
Shimano HG61, 9-speed, 11-34t
Crank
Custom Shimano FC-M542, S/M: 170mm, L: 175mm
Bottom Bracket
Custom Shimano FC-M542
Chain
SRAM PC-971, 9-speed w/Power Link
Pedals
Shimano M520, clipless
Wheels
Front Hub
Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h
Rear Hub
Custom Shimano M525 SL, alloy QR, 32h
Rims
Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
Spokes
DT Swiss 1.8mm stainless, black, alloy nipples
Tires
S-Works The Captain, 26x2.2"", 120 TPI, Aramid bead, dual compound, tubeless ready
Brakes
Brakes
Custom Avid Elixir R SL, alloy backed organic pads, 160 mm rotor
Brake Levers
Custom Avid Elixir R SL Hydraulic, tool-less adj. reach
Cockpit
Stem
Specialized adjustable rise, 31.8mm clamp, 3D forged w/ CNC finish
Handlebar
Specialized XC low rise 31.8mm bar, 6066 butted alloy, 6 degree up, 8 degree backsweep, 620mm wide
Grips
Specialized thin lock on grip
Headset
1-1/8"" Threadless, 10mm insertion alloy cups, sealed cartridge bearing
Seat
Saddle
Specialized Women's Ariel, hollow Cr-Mo rails, 143mm
Seatpost
2014 butted alloy, single-bolt setback, 30.9x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Top Tube Length | 536 mm | 559 mm | 599 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 394 mm | 431 mm | 470 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 120 mm | 130 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm |
| Wheelbase | 1062 mm | 1087 mm | 1128 mm |
| Bottom Bracket Drop | 8 mm | 8 mm | 8 mm |
| Standover Height | 684 mm | 690 mm | 711 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

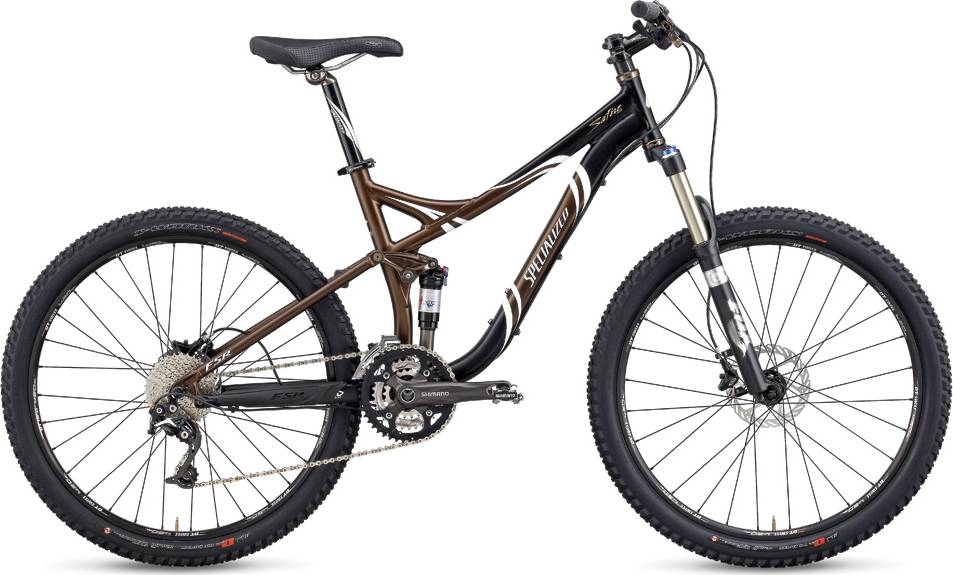

About this model
Safire FSR Elite is part of the Specialized Safire model. Specialized launched 14 bikes of this model so far. You can easily view all of the Specialized Safire bikes models from 2009, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The Safire FSR Elite comes factory-installed with the Fox fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
Safire FSR Elite has an aluminum fork, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
Specialized Safire FSR Elite bike has the Fox Triad model installed, and has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Specialized Safire FSR Elite 2009, has a 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The Safire FSR Elite has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
