Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox
-
Groupset X0, SLX -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Safire FSR FACT 9m carbon, Designs for Women specific main triangle, M5 CS/SS, sealed cartridge bearing pivots, DMD Direct Mount F. Der, replaceable derailleur hanger, disc only, 120mm travel
Suspension Fork
Fox F120 RLC, 120mm, compression and rebound adj. w/ LO, alloy steerer
Rear Shock
Specialized AFR Brain Shock w/ remote Trail Tune inertia valve, rebound adj. and Brain Fade, 7.25x1.75"", Safire tuned
Drivetrain
Rear Derailleur
SRAM X-0, 9-speed, mid cage
Front Derailleur
Shimano M660 SLX, DMD, top swing, dual pull
Shift Levers
SRAM X-9, trigger
Cassette
Shimano HG61, 9-speed, 11-34t
Crank
Custom Shimano FC-M762 XT, 2pc. S/M: 170mm, L: 175mm
Bottom Bracket
Custom Shimano M762 XT
Chain
SRAM PC-971, 9-speed w/Power Link
Pedals
Shimano M520, clipless
Wheels
Front Hub
Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h
Rear Hub
Custom DT Swiss 370 w/ DT RWS QR, 32h
Rims
Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
Spokes
DT Swiss Competition 1.8/1.6mm stainless, black, alloy nipples
Tires
S-Works The Captain, 26x2.2"", 120 TPI, Aramid bead, dual compound, tubeless ready
Brakes
Brakes
Custom Avid Elixir R Carbon SL, alloy backed organic pads, 160mm rotor
Brake Levers
Custom Avid Elixir R Carbon SL Hydraulic, tool-less adj. reach
Cockpit
Stem
Specialized adjustable rise, 31.8mm clamp, 3D forged w/ CNC finish
Handlebar
Specialized XC low rise 31.8mm bar, 2014 butted alloy, 6 degree up, 8 degree backsweep, 620mm wide
Grips
Specialized thin lock on grip
Headset
1-1/8"" to 1.5"" Threadless, Campy style upper and lower cartridge bearing w/ adapter
Seat
Saddle
Specialized Women's Ariel, hollow Cr-Mo rails, 143mm
Seatpost
2014 butted alloy, single-bolt setback, 30.9x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Top Tube Length | 535 mm | 558 mm | 598 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 431 mm | 470 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 128 mm | 148 mm | 158 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm |
| Wheelbase | 1064 mm | 1089 mm | 1130 mm |
| Bottom Bracket Drop | 8 mm | 8 mm | 8 mm |
| Standover Height | 683 mm | 694 mm | 721 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

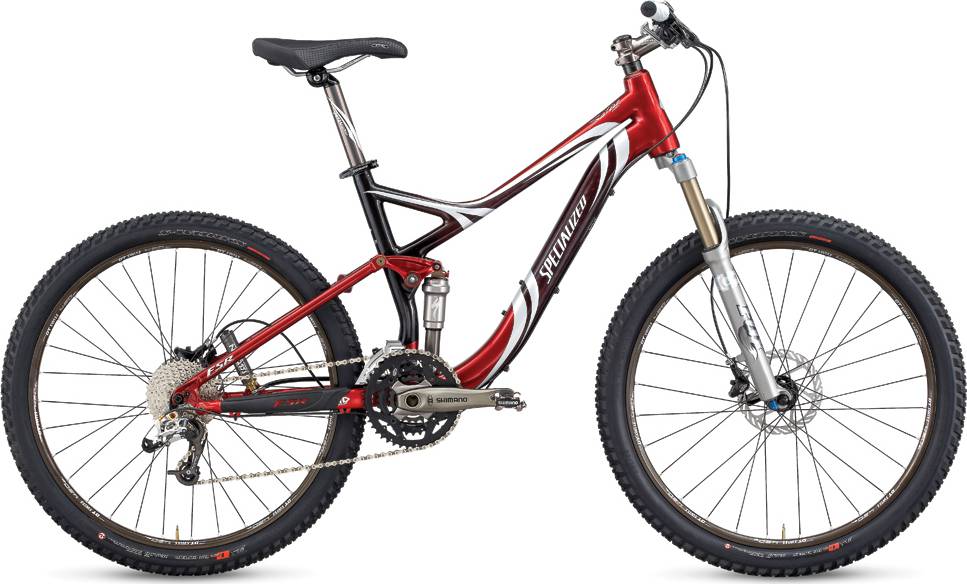

Safire FSR Expert Carbon belongs to the Specialized Safire model. There are 14 bikes that carry this model name. Check out the entire range from 2009 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The fork installed on this bike is the Fox model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
Safire FSR Expert Carbon has an aluminum fork, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
The shock that’s installed on this bike is Specialized AFR Brain Shock w/ remote Trail Tune inertia valve, with a travel distance of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Safire FSR Expert Carbon are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Safire FSR Expert Carbon comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Specialized Safire FSR Expert Carbon bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
