Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 52mm -
Groupset Deore, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized E5 aluminum, fully manipulated tubing, smooth weld, compact design, internal cable routing, integrated headset, fender/rack eyelets, center kickstand plate
Suspension Fork
Sirrus Canti, aluminum legs/crown, Cr-Mo steerer, 52mm fully integrated headset, fender/rack eyelets, internal light cable routing
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Acera, 31.8mm clamp, top swing, dual pull
Shift Levers
Shimano Acera Rapidfire, 9-speed
Cassette
Shimano CS HG-30-9, 9-speed, 11-34
Crank
Shimano Alivio, Octalink, w/ chainguard
Bottom Bracket
Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm
Chain
KMC X9 nickel plate, reusable Missing Link
Pedals
Sirrus pedal, nylon body, symmetric alloy cage, low profile bearing system, toe clip capable
Wheels
Front Hub
Shimano DH-3N30QR dynamo hub, w/ QR, 32h
Rear Hub
Joy Tech Aluminum, cassette, double sealed, QR 32h, with QR
Rims
DRX270, alloy double-wall, pinned, CNC machined, 32h
Spokes
Stainless, 14g
Tires
Specialized Nimbus Sport, 60TPI, wire bead, reflective strip, 700x32c
Brakes
Brakes
Alloy, linear pull, 60mm brake-pads
Brake Levers
Alloy, linear pull
Cockpit
Stem
3D forged alloy, 10-degree rise, 31.8mm clamp
Handlebar
Specialized PG Alloy flat bar, 2014 aluminum, 6-degree back sweep, 31.8mm
Grips
Body Geometry Targa, lock on, closed end
Headset
1-1/8"" sealed Cr-Mo bearings integrated w/ headset, 15mm alloy cone spacer with 25mm of spacers
Seat
Saddle
Body Geometry Targa Sport, 155mm
Seatpost
Alloy, 2-bolt forged head, 27.2mm, 12.5mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Front Center | 629 mm | 637 mm | 647 mm | 667 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 67 mm | 63 mm | 60 mm | 60 mm |
| Top Tube Length | 576 mm | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 73.25 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 485 mm | 530 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 150 mm | 165 mm | 190 mm | 225 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1071 mm | 1079 mm | 1088 mm | 1109 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 756 mm | 792 mm | 827 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

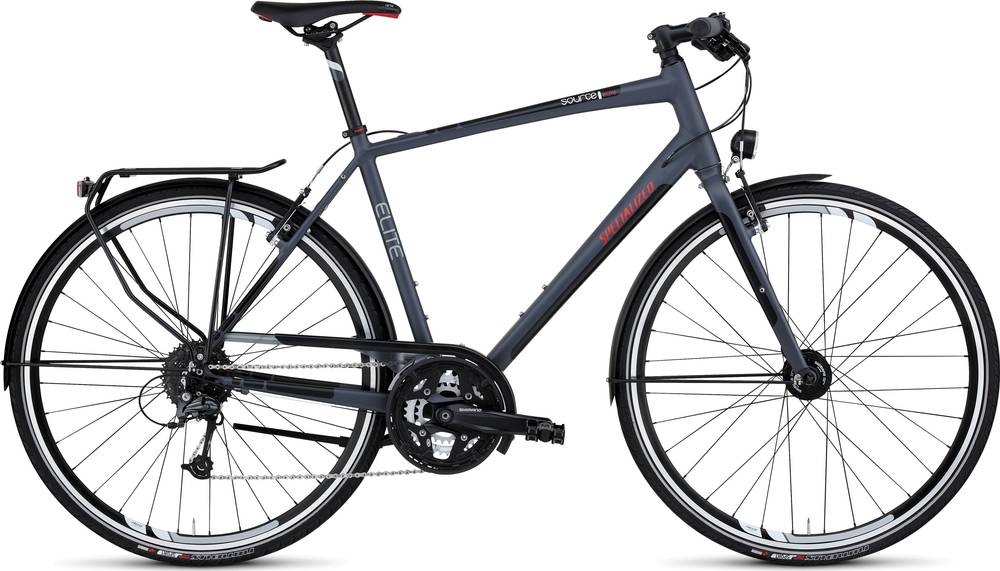

Source Elite is a Specialized Source model. Specialized launched 4 bikes of this model so far. Check out the entire range from 2013 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter bikes average price
According to our calculations, the average cost of a Commuter bike that is reliable is 762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Source Elite components
Fork material
Source Elite has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The wheels on Source Elite are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized Source Elite is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Specialized Source Elite bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
