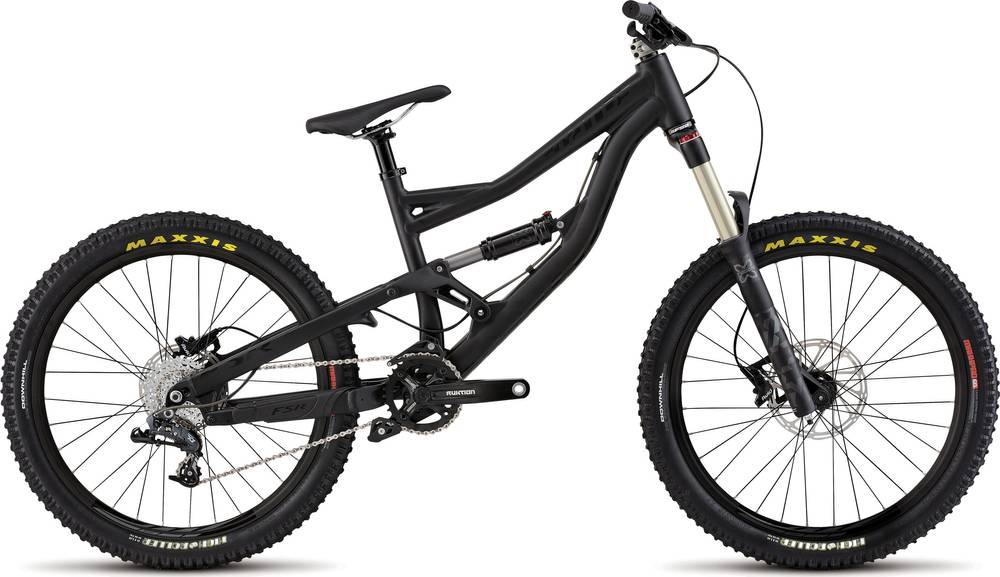

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 130mm -
Travel Rear 150mm -
Fork X Fusion
-
Groupset X7, X4 -
Suspension Full -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M4 hydroformed tubing, 1.5"" forged headtube, ISCG mounts, 135mm rear spacing, full-cartridge bearing pivots, 150mm travel, 24"" wheels
Suspension Fork
Custom X-Fusion Metric Air R, air spring, tapered steerer, rebound adj. 20mm thru-axle, 130mm travel
Rear Shock
Custom X-Fusion 02 R, air sleeve w/ adj. rebound, 8.74""x1.97""
Drivetrain
Rear Derailleur
SRAM X7, 9-speed, short cage
Shift Levers
SRAM X4, 9-speed, trigger
Cassette
SRAM PG 830, 8-speed, 11-32
Crank
Truvativ Ruktion, 165mm, 34T, w/ Status guide
Bottom Bracket
Truvativ Howitzer XR, oversize sealed outboard cartridge bearings, 73mm
Chain
KMC X8, 8-speed, reusable Missing Link
Pedals
Resin test ride, w/ toe clips, CEN std.
Wheels
Front Hub
Specialized Hi Lo disc, sealed cartridge bearings, 20mm thru-axle, 32h
Rear Hub
Specialized disc, bolt-on, 32h
Rims
Alex Supra DH, 24"", 32h
Spokes
Stainless, 14g
Tires
Maxxis High Roller DH, 60TPI, folding bead, single compound, 24x2.5""
Brakes
Brakes
Avid DB3, hydraulic disc, steel-backed metallic pads
Brake Levers
Avid DB3, w/ reach adjust
Cockpit
Stem
Specialized P.Series MTB, forged alloy, top load
Handlebar
Specialized, low rise, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 31.8mm
Grips
Specialized Sip Grip, lock-on, half-waffle
Headset
Semi-integrated alloy cups for 1-1/2"" headtube and 1-1/8"" steerer, cartridge bearings
Seat
Saddle
Specialized youth, steel rails
Seatpost
Specialized 6061 alloy, 2-bolt, 0mm setback, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | GROM | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.73 mm | 1.73 mm | 1.55 mm | 1.53 mm | 1.44 mm |
| Bottom Bracket Height | 306 mm | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 739 mm | 739 mm | 739 mm | 764 mm | 789 mm |
| Rake | 44 mm | 44 mm | 3 mm | 21 mm | 21 mm |
| Stack | 640 mm | 640 mm | 640 mm | 640 mm | 640 mm |
| Reach | 369 mm | 369 mm | 414 mm | 419 mm | 444 mm |
| Top Tube Length | 527 mm | 527 mm | 552 mm | 577 mm | 602 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 394 mm | 394 mm | 394 mm | 419 mm | 458 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1158 mm | 1158 mm | 1158 mm | 1183 mm | 1208 mm |
| Bottom Bracket Drop | -14 mm | -14 mm | -14 mm | -14 mm | -14 mm |
| Standover Height | 691 mm | 740 mm | 740 mm | 737 mm | 753 mm |
| Wheels | 24" | 24" | 24" | 24" | 24" |
About this model
Status Grom belongs to the Specialized Status model. There are 19 bikes that carry this model name. You can easily view all of the Specialized Status bikes models from 2015, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Status Grom components
Fork
The X Fusion is included from the factory. It has a travel distance of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Status Grom has a rear shock with a travel of 150mm. The model Custom X-Fusion 02 R is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Status Grom bike is equipped with the 24″ aluminum model. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized Status Grom is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
