Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Groupset XX1 -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 8m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, PM 140 rear brake, sliding dropouts
Suspension Fork
Specialized Chisel, suspension corrected carbon rigid fork, monocoque carbon structure, tapered carbon steerer, alloy dropouts, PM brake mount, OS28 end caps
Drivetrain
Cassette
20T SS Cog w/spacer kit
Crank
Custom SRAM carbon S-2200, 32T XX1 style single ring, PF30 spindle, removable spider, 15.5"": 170mm, Others: 175mm
Bottom Bracket
SRAM PF30, OS press-in bearings, sealed cartridge
Chain
SRAM PC 1051, 10-speed, PowerLink
Wheels
Front Hub
Roval Control Carbon 29, QR, OS28 endcaps, 32h
Rear Hub
Roval Control Carbon 29, DT Swiss Star Ratchet, 135mm, QR, 32h
Rims
Roval Control Carbon 29, carbon disc, hookless bead, 27mm wide, 32h
Spokes
DT Swiss Super Comp, 2.0/1.65/1.8 stainless
Tires
S-Works Renegade, 29x2.3"", foldable aramid bead, dual-compound, 120TPI
Brakes
Brakes
Magura MTS, Hi Friction pad, alloy master cylinder, alloy lever blade, alloy caliper, Storm SL rotor, 15.5""/17.5"": 160mm rotor, 19""/21"": 180mm rotor
Brake Levers
Magura MTS, alloy master cylinder, alloy lever blade, hollow lever pivot, reach adj.
Cockpit
Stem
Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp
Handlebar
S-Works XC, flat bar, carbon, 700mm wide, 8-degree backsweep, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, 15.5""/17.5"": regular, 19""/21"": XL thickness
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Saddle
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Seatpost
Specialized carbon, 2-bolt, 27.2mm, 15.5""/17.5"": 350mm, Others: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.46 mm | 1.43 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 622 mm | 645 mm | 679 mm | 705 mm |
| Rake | 45 mm | 45 mm | 54 mm | 55 mm |
| Trail | 78 mm | 78 mm | 68 mm | 67 mm |
| Stack | 588 mm | 606 mm | 621 mm | 635 mm |
| Reach | 388 mm | 404.5 mm | 424 mm | 444 mm |
| Top Tube Length | 564 mm | 586 mm | 609 mm | 634 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1043 mm | 1066 mm | 1100 mm | 1126 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 754 mm | 804 mm | 824 mm | 864 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

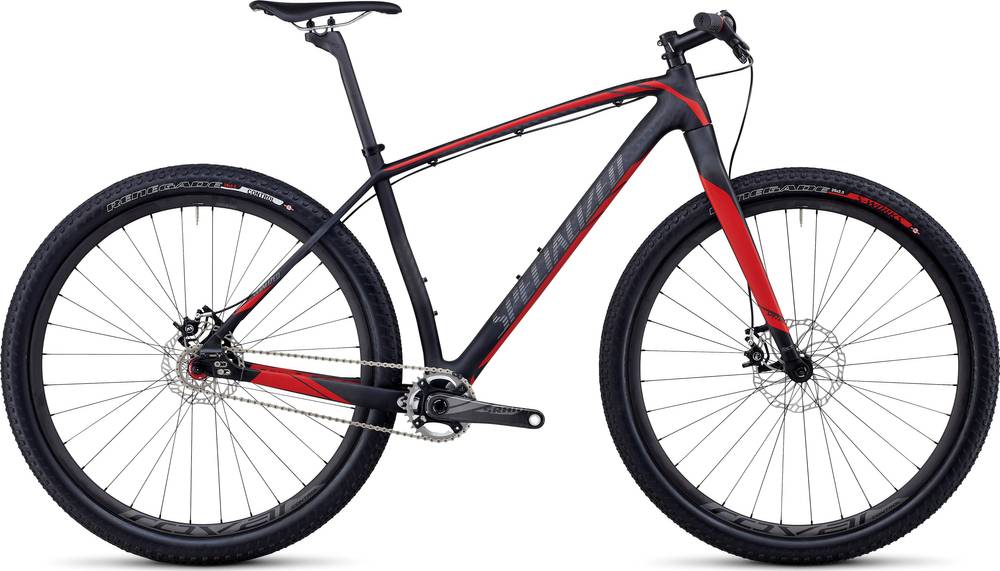

Stumpjumper Carbon 29 Singlespeed completes the Specialized Stumpjumper model. 352 bikes variations carry this model name so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
Stumpjumper Carbon 29 Singlespeed has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Stumpjumper Carbon 29 Singlespeed model has 29″ carbon wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stumpjumper Carbon 29 Singlespeed comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
