Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 90mm -
Fork Fox
-
Groupset X9, SLX -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M5 Manipulated Alloy hardtail, fully manipulated DT, TT, SS, CS, ST w/ shared tube Mono-stay seatstays, disc mount, replaceable derailleur hanger
Suspension Fork
Fox Float F90 RL, 90mm travel, air spring, compression and rebound adj. w/ LO, alloy steerer
Drivetrain
Rear Derailleur
SRAM X-9, 9-speed, mid cage
Front Derailleur
Shimano M660 SLX, 34.9mm, clamp top swing, dual pull
Shift Levers
SRAM X-7, aluminum 9-speed trigger
Cassette
Shimano HG61, 9-speed, 11-34t
Crank
Custom Shimano FC-M542, 15.5"": 170mm, others: 175mm
Bottom Bracket
Custom Shimano FC-M542
Chain
SRAM PC-971, 9-speed w/Power Link
Pedals
None
Wheels
Front Hub
Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h
Rear Hub
Custom Shimano M525 SL, alloy QR, 32h
Rims
Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
Spokes
DT Swiss 1.8mm stainless, black, alloy nipples
Tires
S-Works Fast Trak LK, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
Brakes
Brakes
Custom Avid Elixir R SL, alloy backed organic pads, 160mm rotor
Brake Levers
Custom Avid Elixir R SL Hydraulic, tool-less adj. reach
Cockpit
Stem
Specialized adjustable rise, 31.8mm clamp, 3D forged w/ CNC finish
Handlebar
Specialized XC flat 31.8mm, 2014 butted alloy, 6 degree backsweep, 600mm wide
Grips
Specialized thin lock on grip (15.5/17"") Specialized Thick lock on grip (all others)
Headset
1-1/8"" Threadless, 10mm insertion alloy cups, sealed cartridge bearing
Seat
Saddle
Specialized Phenom, hollow Cr-Mo rails, SL foam, 130mm (15.5/17"") 143mm (all others)
Seatpost
2014 butted alloy, single-bolt setback, 30.9x350/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15.5" | 17" | 18" | 19" | 21" |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Top Tube Length | 529 mm | 549 mm | 579 mm | 594 mm | 609 mm | 634 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 394 mm | 432 mm | 457 mm | 483 mm | 533 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1007 mm | 1027 mm | 1058 mm | 1073 mm | 1089 mm | 1115 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 689 mm | 722 mm | 753 mm | 767 mm | 790 mm | 826 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
About this model

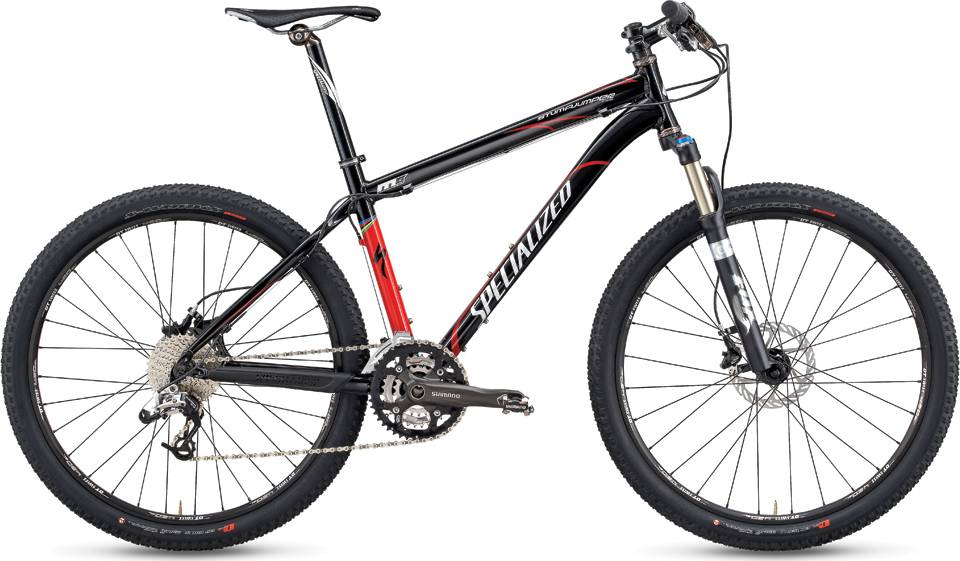

Stumpjumper Comp is part of the Specialized Stumpjumper model. Specialized released 352 bikes variations of this model so far. You can easily view all of the Specialized Stumpjumper bikes models from 2009, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The fork installed on this bike is the Fox model. The travel on this model is 90mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on Stumpjumper Comp are the 26″ aluminum type. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Stumpjumper Comp has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
