Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 90mm -
Fork Fox
-
Groupset X9, SLX -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 8M carbon, 1.5 - 1-1/8"" tapered HT, replaceable alloy derailleur hanger, alloy dropouts
Suspension Fork
Fox Float F90 RL, 90mm travel, air spring, compression and rebound adj. w/ LO, alloy steerer
Drivetrain
Rear Derailleur
SRAM X-9, 9-speed, mid cage
Front Derailleur
Shimano M660 SLX, DMD, top swing, dual pull
Shift Levers
SRAM X-7, aluminum trigger
Cassette
Shimano HG61, 9-speed, 11-34t
Crank
Custom Shimano FC-M542, 15.5: 170mm, others: 175mm
Bottom Bracket
Custom Shimano BB-91, OS, press-in bearing
Chain
SRAM PC-971, 9-speed w/Power Link
Pedals
None
Wheels
Front Hub
Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h
Rear Hub
Custom Shimano M525 SL, alloy QR, 32h
Rims
Custom DT Swiss X420SL, 24mm w/ eyelets, 28h/32h
Spokes
DT Swiss 1.8mm stainless
Tires
S-Works The Captain, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
Brakes
Brakes
Custom Avid Elixir R SL, alloy backed organic pads, S/M: 160mm rotor
Brake Levers
Custom Avid Elixir R SL Hydraulic, tool-less adj. reach
Cockpit
Stem
3D forged alloy, adjustable rise, 31.8mm clamp
Handlebar
Specialized XC low rise bar, 7050 butted alloy, 31.8mm, 660mm wide, 8 degree back sweep, 6 degree up
Grips
Specialized waffle lock on grip (15.5/17) Specialized Thick lock on grip (others)
Headset
1-1/8"" Threadless, Campy style upper and lower cartridge bearing
Seat
Saddle
Specialized Phenom, hollow Cr-Mo rails, thin foam, S/M: 130mm, L/XL: 143mm
Seatpost
2014 butted alloy, single bolt setback, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17" | 18" | 19" | 21" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.46 mm | 1.41 mm | 1.39 mm | 1.37 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 301 mm | 301 mm |
| Stack | 573 mm | 583 mm | 583 mm | 592 mm | 611 mm |
| Reach | 372 mm | 399 mm | 414 mm | 426 mm | 445 mm |
| Top Tube Length | 549 mm | 579 mm | 594 mm | 609 mm | 634 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 457 mm | 483 mm | 533 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 135 mm | 135 mm | 145 mm | 165 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1022 mm | 1052 mm | 1067 mm | 1083 mm | 1109 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 755 mm | 776 mm | 787 mm | 804 mm | 837 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
About this model

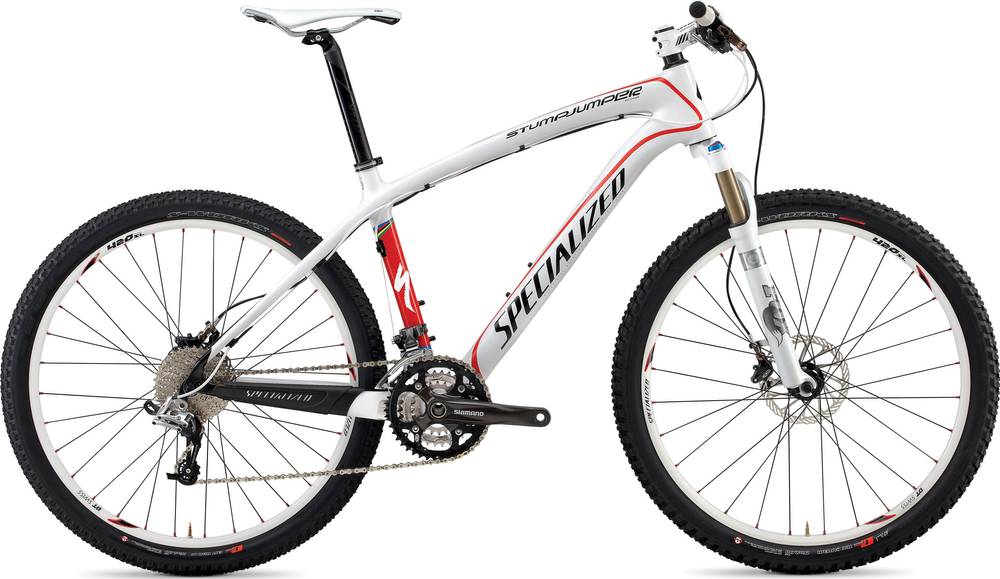

Stumpjumper Comp Carbon belongs to the Specialized Stumpjumper model. 352 bikes variations carry this model name so far. Check out the entire range from 2010 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The Stumpjumper Comp Carbon comes factory-installed with the Fox fork. This has a travel range of 90mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
When leaving the production line, the Stumpjumper Comp Carbon model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
