Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 80mm -
Fork RockShox Reba
-
Groupset XT, X7 -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142mm dropouts, PM 160 rear brake, replaceable alloy rear derailleur hanger
Suspension Fork
RockShox Reba RL 29, Solo Air spring, tapered alloy steerer, w/ lockout, compression, rebound adjust, 15mm thru-axle, S: 80mm travel, Others: 90mm
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus, 10-speed, SGS long cage
Front Derailleur
SRAM X7, 10-speed, top pull
Shift Levers
Shimano SLX, 10-speed, trigger
Cassette
SRAM PG 1030, 10-speed, 11-36
Crank
Custom SRAM S-1250, 7050 alloy arms, 10-speed XC double, PF30 spindle, 36/22, 104/64mm BCD spider
Bottom Bracket
SRAM, PF30, OS press-in bearings, sealed cartridge
Chain
SRAM PC 1031, 10-speed, w/ PowerLink, nickel finish
Pedals
Resin test ride, w/ toe clips, CEN std.
Wheels
Front Hub
Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
Rear Hub
Specialized Hi Lo disc, 4 sealed cartridge bearings, 12mm thru-axle, 32h
Rims
Roval 29, alloy, 21mm inner width, 32h
Spokes
DT Swiss Industry, stainless
Tires
S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.2""
Brakes
Brakes
Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, Storm SL rotor, S/M: 180mm rotor, Others: 160mm
Brake Levers
Magura MTS, alloy lever
Cockpit
Stem
Specialized, forged alloy, 6-degree rise
Handlebar
Specialized flat, 8-degree backsweep, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL
Headset
1-1/8"" and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Saddle
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Seatpost
Specialized alloy, single bolt, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.48 mm | 1.44 mm | 1.4 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 624 mm | 655 mm | 682 mm | 708 mm |
| Rake | 46 mm | 47 mm | 46 mm | 46 mm |
| Trail | 80 mm | 79 mm | 80 mm | 80 mm |
| Stack | 586 mm | 604 mm | 619 mm | 633 mm |
| Reach | 384 mm | 408 mm | 431 mm | 452 mm |
| Top Tube Length | 559 mm | 587 mm | 614 mm | 637 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 394 mm | 434 mm | 470 mm | 505 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1041 mm | 1072 mm | 1099 mm | 1125 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 754 mm | 793 mm | 820 mm | 843 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

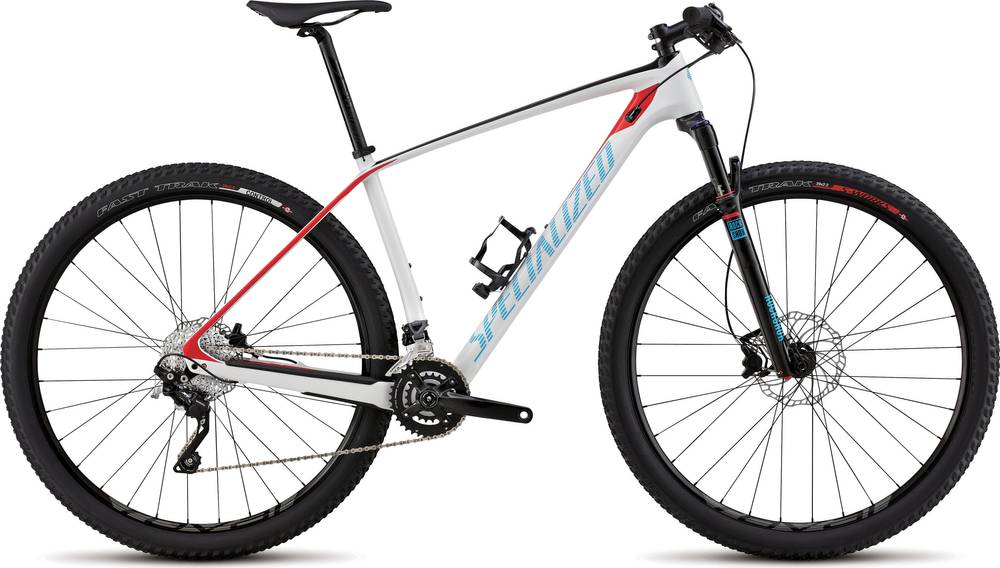

Stumpjumper Comp Carbon 29 completes the Specialized Stumpjumper model. Specialized released 352 bikes variations of this model so far. You can easily view all of the Specialized Stumpjumper bikes models from 2015, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Stumpjumper Comp Carbon 29 components
Fork
The RockShox Reba is included from the factory. It has a travel distance of 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Stumpjumper Comp Carbon 29 has an aluminum fork, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
When leaving the production line, the Stumpjumper Comp Carbon 29 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized Stumpjumper Comp Carbon 29 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
