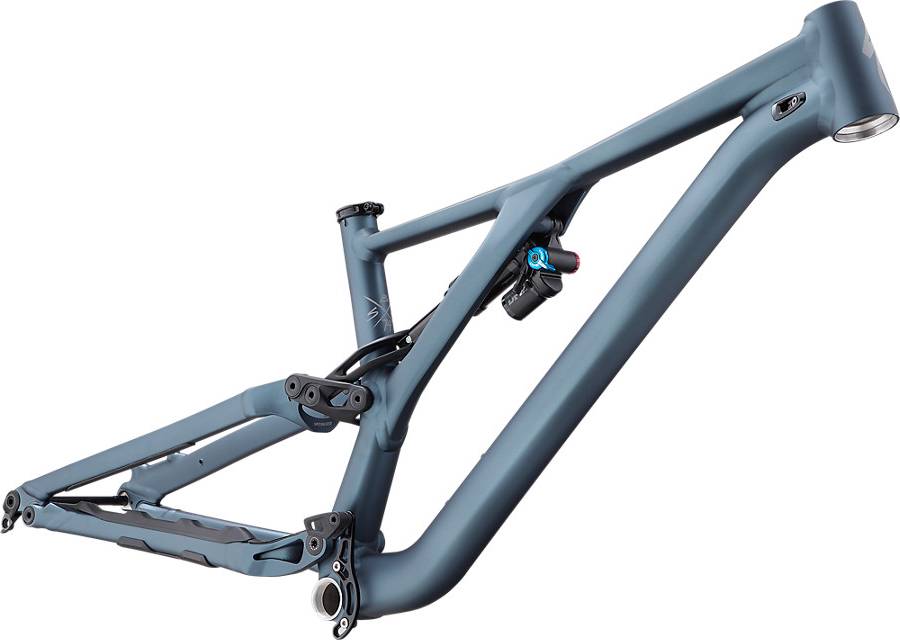

Specialized Stumpjumper EVO Alloy 27.5 – Frameset 2020
2020 Mountain
Estimate price |
1,700$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Rear 150mm -
Suspension Full
Sizing
Recommended size guide.
S2
157cm - 172cm
S3
165cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M5 alloy frame, asymmetrical design, 27.5 style-specific EVO Trail Geometry, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Rear Shock
FOX FLOAT DPX2 Performance, Rx Trail Tune, EVOL Air Sleeve, 3-position adjustment, 210x52.5mm
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S2 | S3 |
|---|---|---|
| Stack Reach Ratio | 1.292 mm | 1.245 mm |
| Bottom Bracket Height | 324 mm | 324 mm |
| Front Center | 790 mm | 820 mm |
| Rake | 37 mm | 37 mm |
| Trail | 137 mm | 137 mm |
| Stack | 601 mm | 610 mm |
| Reach | 465 mm | 490 mm |
| Top Tube Length | 615 mm | 647 mm |
| Seat Tube Angle | 76 ° | 75.6 ° |
| Seat Tube Length | 400 mm | 450 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm |
| Wheelbase | 1228 mm | 1258 mm |
| Bottom Bracket Drop | 33 mm | 33 mm |
| Standover Height | 743 mm | 764 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm |
| Rider Max Height | 172 cm | 180 cm |
About this model
Stumpjumper EVO Alloy 27.5 – Frameset is a Specialized Stumpjumper model. Specialized launched 352 frames of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Specialized Stumpjumper EVO Alloy 27.5 – Frameset 2020 is the most economical model, with a starting price of 1700$. Specialized Stumpjumper Troy Lee Designs 29 Frameset – Limited-Edition 2020 on the other hand costs 3200$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro frames
Our math shows that the average cost of a dependable Enduro frame is 1895$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
When Specialized released this model in 2020, its price was 1700$. In conclusion, this frame price is 11.47% lower than the price of the average Enduro frame.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Rear Shock
From the factory, it comes with the FOX FLOAT DPX2 Performance rear shock model, which has a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Sizes
Specialized Stumpjumper EVO Alloy 27.5 – Frameset frame has 2 sizes, in the range of 157 cm – 180 cm (5.15 ft – 5.91 ft). In short, it won’t be difficult to find the right one for you.
