Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 90mm -
Fork RockShox SID
-
Groupset X0, SLX -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 8M carbon, 1.5 - 1 1/8"" tapered HT, replaceable alloy derailleur hanger, alloy dropouts
Suspension Fork
RockShox SID Race for Specialized, 90mm travel, air spring, rebound and floodgate compression adj.w/ LO, alloy steerer
Drivetrain
Rear Derailleur
SRAM X-0, 9-speed mid cage
Front Derailleur
Shimano M660 SLX, 34.9mm clamp, top swing, top pull
Shift Levers
SRAM X-9 aluminum trigger
Cassette
Shimano HG61, 9-speed, 11-34t
Crank
Custom Shimano FC-M762, 2pc. 15.5:170mm, others: 175mm
Bottom Bracket
Custom Shimano BB-91, OS, press-in bearing
Chain
SRAM PC-971, 9-speed w/Power Link
Pedals
None
Wheels
Front Hub
Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, oversized end caps, 9mm DT RWS, alloy QR, 28h
Rear Hub
Custom DT Swiss 330SL w/ alloy freehub, QR, 32h
Rims
Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
Spokes
DT Swiss Competition 1.8/1.6mm stainless
Tires
S-Works The Captain, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
Brakes
Brakes
Custom Avid Elixir CR SL, alloy backed semi-met pads, 160mm rotor
Brake Levers
Custom Avid Elixir CR SL Hydraulic, tool-less adj. reach and pad contact
Cockpit
Stem
3D forged alloy, adjustable rise, 31.8mm clamp
Handlebar
Specialized XC low rise bar, 7050 butted alloy, 31.8mm, 660mm wide, 8 degree back sweep, 6 degree up
Grips
Specialized waffle lock on grip (15.5/17) Specialized Thick lock on grip (others)
Headset
Campy style cartridge bearings for integrated alloy HT
Seat
Saddle
Specialized Phenom, hollow Cr-Mo rails, thin foam, 15.5/17: 130mm, others: 143mm
Seatpost
2014 butted alloy, single bolt setback, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17" | 18" | 19" | 21" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.46 mm | 1.41 mm | 1.39 mm | 1.37 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 301 mm | 301 mm |
| Stack | 573 mm | 583 mm | 583 mm | 592 mm | 611 mm |
| Reach | 372 mm | 399 mm | 414 mm | 426 mm | 445 mm |
| Top Tube Length | 549 mm | 579 mm | 594 mm | 609 mm | 634 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 457 mm | 483 mm | 533 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 135 mm | 135 mm | 145 mm | 165 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1022 mm | 1052 mm | 1067 mm | 1083 mm | 1109 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 755 mm | 776 mm | 787 mm | 804 mm | 837 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview

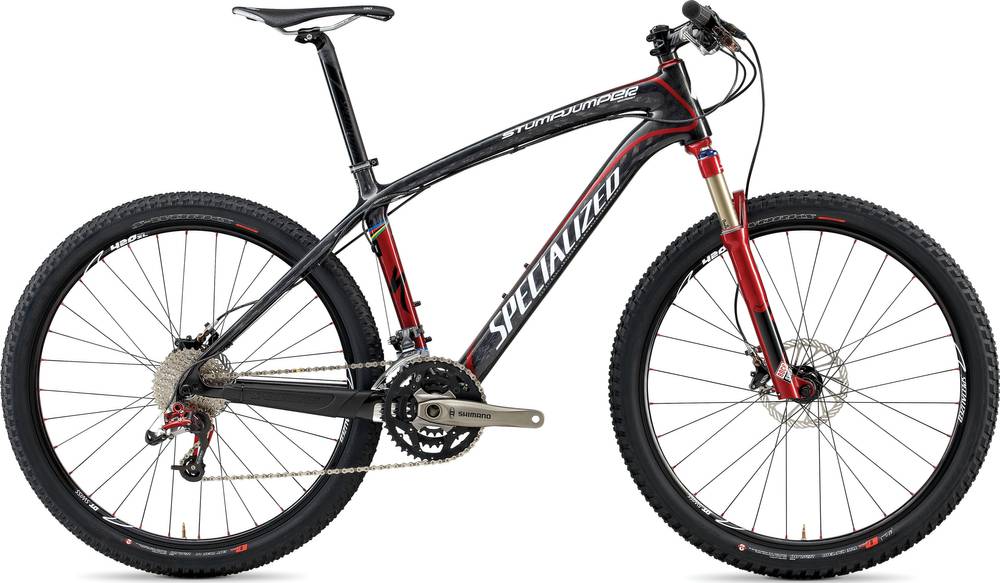

Stumpjumper Expert Carbon belongs to the Specialized Stumpjumper model. Specialized launched 352 bikes of this model so far. Check out the entire range from 2010 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Stumpjumper Expert Carbon components
Fork
The RockShox SID is included from the factory. It has a travel distance of 90mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The Stumpjumper Expert Carbon 2010 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
