Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox
-
Groupset X9, Deore -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All new Stumpjumper FSR M5 manipulated alloy frame w/ ORE TT/DT, sealed cartridge bearing pivots, DMD Direct Mount F. Der, replaceable derailleur hanger, disc only, 120mm travel
Suspension Fork
Fox Float 120 RL, 120mm travel, rebound/compression adjust, lock out, alloy steerer
Rear Shock
Fox Triad, custom on-the-fly 3-position switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, adjustable rebound, 7.25x1.75""
Drivetrain
Rear Derailleur
SRAM X-9, 9-speed, mid cage
Front Derailleur
Shimano M581 LX, DMD, top swing, dual pull
Shift Levers
SRAM X-7, aluminum 9-speed trigger
Crank
Shimano A/A/S 2pc custom
Bottom Bracket
Shimano M542, 2pc custom for Specialized
Chain
SRAM PC-971 w/ Power Link
Pedals
Crank Brothers Smarty custom for Specialized
Wheels
Front Hub
Specialized Hi Lo disc, 28h CNC flange and disc mount, sealed cartridge bearing, 9mm DT RWS alloy QR
Rear Hub
Shimano custom M525SL hub for Specialized, 32h, alloy QR
Rims
DT Swiss custom for Specialized X420, 24mm w/ eyelets, 28/32h
Spokes
DT Swiss 1.8mm stainless, alloy nipples
Tires
S-Works The Captain 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
Brakes
Brakes
Custom Avid Juicy 5 SL, hydraulic disc, 185 and 203mm rotor
Brake Levers
Custom Avid Juicy 5 SL, hydraulic disc
Cockpit
Stem
Specialized adjustable rise, 31.8mm clamp, 3D forged w/CNC finish
Handlebar
Specialized XC low rise 31.8mm bar, 6066 butted alloy, 6 degree up, 8 degree backsweep, 640mm wide
Headset
1 1/8"" threadless, alloy cups w/ 10mm insertion, sealed cartridge bearing
Seat
Saddle
Specialized XC MTB, hollow Cr-Mo rails, SL foam
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Top Tube Length | 562 mm | 596 mm | 631 mm | 651 mm | 671 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 406 mm | 445 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 160 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1090 mm | 1121 mm | 1161 mm | 1183 mm | 1203 mm |
| Bottom Bracket Drop | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm |
| Standover Height | 727 mm | 734 mm | 761 mm | 770 mm | 784 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview

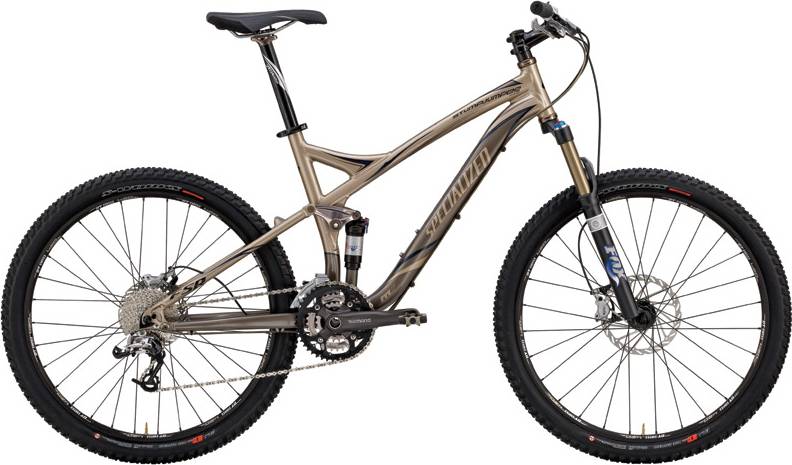

Stumpjumper FSR Comp completes the Specialized Stumpjumper model. Specialized launched 352 bikes of this model so far. You can get a glimpse at all models from 2008, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
This bike has the Fox fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
As for the rear shock, this bike has the Fox Triad model, with a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Stumpjumper FSR Comp 2008 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The Stumpjumper FSR Comp has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
