Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset X9, X7 -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M5 manipulated alloy w/ ORE TT/DT, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm travel
Suspension Fork
RockShox Revelation RL, Dual Air, 140mm travel, disc only, alloy steerer, Motion Control damper, rebound and compression adj. w/LO
Rear Shock
Custom Fox Triad II for Specialized, custom on-the-fly 3-position switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, rebound adj. 7.875x1.9""
Drivetrain
Rear Derailleur
SRAM X.9, 10-speed, long cage
Front Derailleur
SRAM X.7, 10-speed, S1 direct mount for DMD, bottom pull
Shift Levers
SRAM X.7, 10-speed, aluminum trigger
Cassette
Shimano HG81, 10-speed, 11-36t
Crank
Custom SRAM S-1250, GXP spindle, 10-speed, 7050 alloy arms, S: 170mm, others: 175mm
Bottom Bracket
SRAM GXP, outboard bearing
Chain
KMC X10, 10-speed, w/ reuseable Missing Link, nickel plates
Pedals
Resin Test Ride Pedals with toe clips, CEN std.
Wheels
Front Hub
Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, 28h, 9mm thru-axle QR
Rear Hub
Specialized Hi Lo disc, double sealed cartridge bearing, OS contact side, 32h, QR
Rims
Custom DT Swiss X420SL, 24mm w/ eyelets, 28h
Spokes
DT Swiss Champion 1.8mm (15g) stainless
Tires
S-Works Purgatory, 120 TPI, 2Bliss ready aramid bead, dual compound, 26x2.2""
Brakes
Brakes
Custom Avid Elixir R SL, hydraulic disc, alloy backed semi-metallic pads, reach adjust, stainless hardware, S/M: 185mm, L/XL: 203mm rotor
Brake Levers
Custom Avid Elixir R SL hydraulic, tool-less reach adj.
Cockpit
Stem
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
Handlebar
Specialized XC low-rise bar, 2014 butted alloy, 680mm wide, 8 degree back sweep, 6 degree up, 31.8mm
Grips
Specialized lock-on, S/M: Grappler, Other: Rocca
Headset
1 1/8"" upper and lower campy style cartridge bearings for integrated alloy HT
Seat
Saddle
Specialized BG Henge Comp, hollow Cr-Mo rails, 143mm width
Seatpost
2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, others: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.31 mm | 1.27 mm | 1.21 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Stack | 571 mm | 590 mm | 600 mm | 609 mm | 609 mm |
| Reach | 404 mm | 430 mm | 458 mm | 480 mm | 503 mm |
| Top Tube Length | 562 mm | 593 mm | 623 mm | 648 mm | 671 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 406 mm | 445 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 118 mm | 138 mm | 148 mm | 158 mm | 158 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1089 mm | 1122 mm | 1153 mm | 1179 mm | 1202 mm |
| Bottom Bracket Drop | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm |
| Standover Height | 747 mm | 752 mm | 759 mm | 772 mm | 776 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview

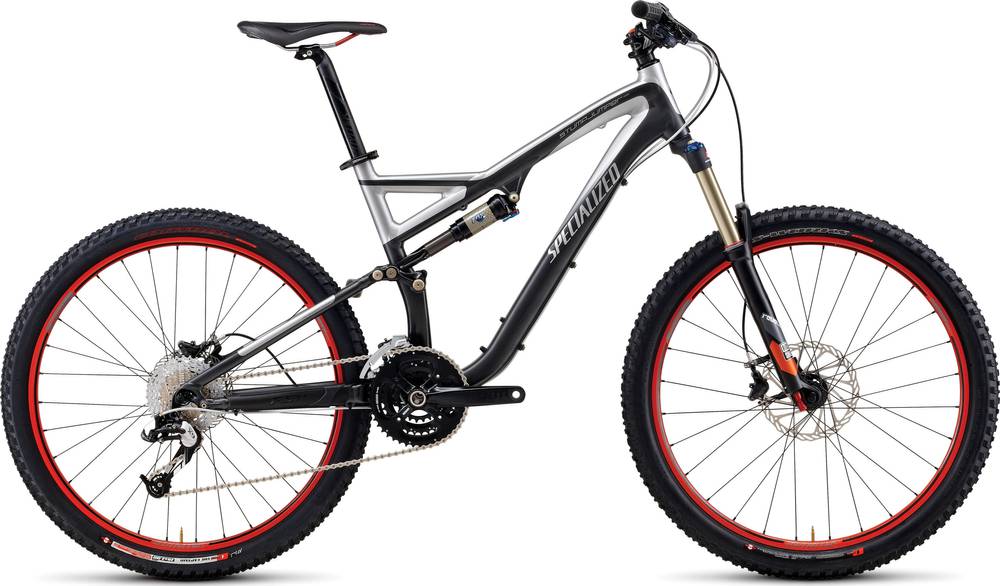

Stumpjumper FSR Comp completes the Specialized Stumpjumper model. There are 352 bikes that carry this model name. Take a sneak peek at all Specialized Stumpjumper bikes models from 2011, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
Specialized Stumpjumper FSR Comp 2011 bike is equipped with the RockShox Revelation RC fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
The shock that’s installed on this bike is Custom Fox Triad II for Specialized, with a travel distance of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Stumpjumper FSR Comp model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Stumpjumper FSR Comp has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
