Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Revelation RC
-
Groupset GX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M5 alloy, Trail Geometry, PF30 BB, internal cable routing, ManFu link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Suspension Fork
RockShox Revelation RL 27.5, Solo Air spring, lockout and rebound adjust, 15x110mm Maxle Lite thru-axle, 46mm offset, 150mm travel
Rear Shock
RockShox Monarch RT, Rx Trail Tune, AUTOSAG, rebound and 2-position compression adjust, 197x48mm
Drivetrain
Rear Derailleur
SRAM GX, long cage, 11-speed
Shift Levers
SRAM GX, 11-speed, trigger
Cassette
SRAM XG-1150, 11-speed, 10-42t
Crank
RaceFace Aeffect, 6000-series alloy, 24mm spindle, 52mm chainline, 30T
Bottom Bracket
PF30, press-fit
Chain
SRAM PC-1110, 11-speed w/PowerLink
Pedals
Resin Test Ride w/toe clips
Wheels
Front Hub
Specialized disc, alloy, sealed cartridge bearings,15x110mm thru-axle, 24h
Rear Hub
Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Rims
Roval Traverse 650b, hookless alloy, 29mm inner width, 24/28h, tubeless ready
Spokes
DT Swiss Industry, stainless, 3x, 2.0""
Tires
Butcher, GRID casing, 650x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
Brakes
Brakes
SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200/180mm rotor
Cockpit
Stem
Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise
Handlebar
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width
Grips
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Seat
Saddle
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Seatpost
Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.45 mm | 1.38 mm | 1.33 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 677 mm | 706 mm | 738 mm | 764 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 104 mm | 104 mm | 104 mm | 104 mm |
| Stack | 586 mm | 595 mm | 604 mm | 613 mm |
| Reach | 384 mm | 410 mm | 438 mm | 460 mm |
| Top Tube Length | 549 mm | 581 mm | 614 mm | 642 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 1092 mm | 1122 mm | 1154 mm | 1180 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 738 mm | 744 mm | 758 mm | 770 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

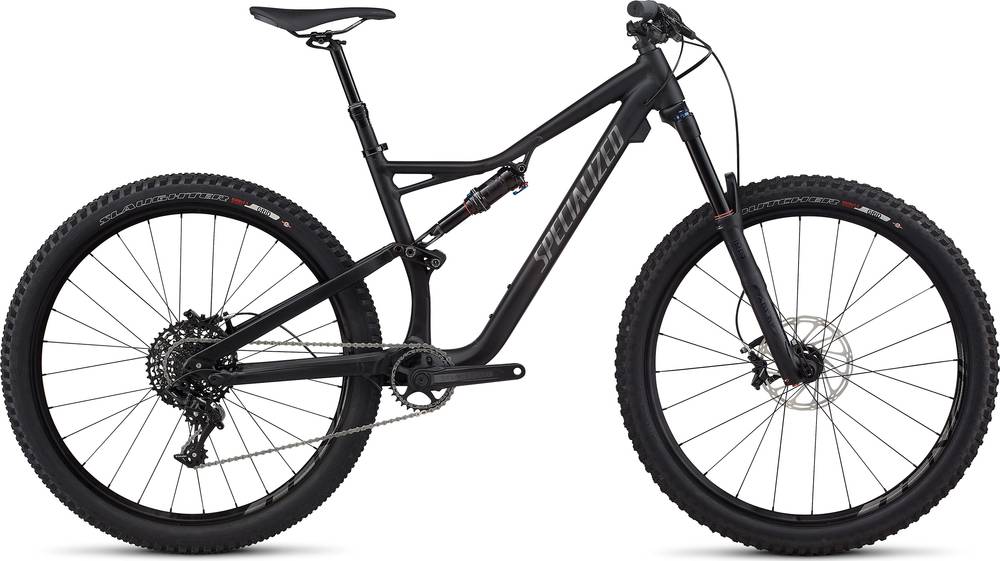

Stumpjumper FSR Comp 650b is part of the Specialized Stumpjumper model. There are 352 bikes that carry this model name. You can easily view all of the Specialized Stumpjumper bikes models from 2017, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Stumpjumper FSR Comp 650b components
Fork
The fork installed on this bike is the RockShox Revelation RC model. The travel on this model is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Specialized Stumpjumper FSR Comp 650b bike has the RockShox Monarch RT model installed, and has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Specialized Stumpjumper FSR Comp 650b 2017, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Stumpjumper FSR Comp 650b has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Specialized model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
