Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Revelation RC
-
Groupset XT, X7 -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m carbon front triangle, 29"" geometry, FACT IS construction, M5 alloy rear triangle, tapered headtube, carbon PF30 BB, ISCG ’05, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm travel
Suspension Fork
Custom RockShox Revelation 29 RC3, damper, tapered alloy steerer, 3-position compression and reb adj. 15mm thru-axle, 130mm travel
Rear Shock
Custom FOX Float CTD Evolution w/ AUTOSAG, Climb, Trail, Descend settings and reb adj. 195x48mm
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus, 10-speed, SGS long cage
Front Derailleur
SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
Shift Levers
Shimano SLX, 10-speed, trigger
Cassette
SRAM PG-1030, 10-speed, 11-36
Crank
Custom SRAM S-1250, 10-speed Trail double, PF30 spindle, S: 170mm, Others: 175mm
Bottom Bracket
SRAM PF30, OS press-in bearings, sealed cartridge
Chain
SRAM PC 1031, 10-speed, PowerLink
Wheels
Front Hub
Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
Rear Hub
Specialized Hi Lo disc, 4x-sealed cartridge bearings, 12mm thru-axle, 142mm spacing, 32h
Rims
Roval 29, alloy disc, 21mm internal width, 32h
Spokes
DT Industry Stainless, 3X front/rear 2.0mm
Tires
Specialized Purgatory Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, dual-compound, 60TPI
Brakes
Brakes
Formula C1, alloy caliper, metallic pad, S/M: 180mm, L/XL: 200mm rotor
Brake Levers
Formula C1, hydraulic disc, tooled reach adj.
Cockpit
Stem
Specialized Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm clamp
Handlebar
Specialized XC Mini-Riser, 6000 butted alloy, 720mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Saddle
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Seatpost
Specialized 2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, Others: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.44 mm | 1.44 mm | 1.41 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 669 mm | 699 mm | 727 mm | 755 mm |
| Rake | 47 mm | 45 mm | 46 mm | 46 mm |
| Trail | 93 mm | 96 mm | 94 mm | 94 mm |
| Stack | 601 mm | 610 mm | 634 mm | 652 mm |
| Reach | 395 mm | 423 mm | 441 mm | 462 mm |
| Top Tube Length | 563 mm | 592 mm | 618 mm | 644 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 100 mm | 125 mm | 145 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1113 mm | 1143 mm | 1171 mm | 1199 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 746 mm | 737 mm | 746 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

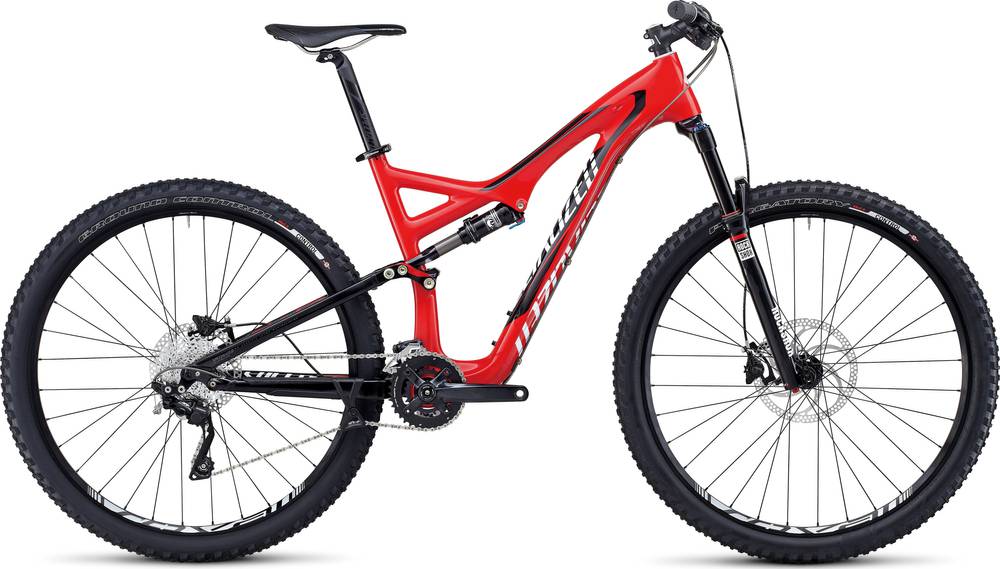

Stumpjumper FSR Comp Carbon 29 completes the Specialized Stumpjumper model. 352 bikes variations carry this model name so far. You can easily view all of the Specialized Stumpjumper bikes models from 2014, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The Stumpjumper FSR Comp Carbon 29 comes factory-installed with the RockShox Revelation RC fork. This has a travel range of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Stumpjumper FSR Comp Carbon 29 has an aluminum fork, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
As for the rear shock, this bike has the Custom FOX Float CTD Evolution w/ AUTOSAG model, with a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Stumpjumper FSR Comp Carbon 29 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized Stumpjumper FSR Comp Carbon 29 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Stumpjumper FSR Comp Carbon 29 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
