Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset GX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m, carbon front chassis, M5 alloy rear end, Trail Geometry, SWAT™ Door integration, PF30 BB, fully enclosed internal cable routing, ManFu link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Suspension Fork
RockShox Yari RC 27.5, Solo Air, rebound & compression adjust, 15x110mm Maxle Ultimate thru-axle, 150mm travel
Rear Shock
RockShox Monarch RT, Rx Trail Tune, AUTOSAG, rebound and 2-position compression adjust, 197x48mm
Drivetrain
Rear Derailleur
SRAM GX, long cage, 11-speed
Shift Levers
SRAM GX, 11-speed, trigger
Cassette
SRAM XG-1150, 11-speed, 10-42t
Crank
RaceFace Aeffect, 6000-series alloy, 24mm spindle, 52mm chainline, 30T
Bottom Bracket
PF30, press-fit
Chain
SRAM PC-1110, 11-speed w/PowerLink
Pedals
Resin Test Ride w/toe clips
Wheels
Front Hub
Specialized disc, alloy, sealed cartridge bearings,15x110mm thru-axle, 24h
Rear Hub
Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Rims
Roval Traverse 650b, hookless alloy, 29mm inner width, 24/28h, tubeless ready
Spokes
DT Swiss Industry, stainless, 3x, 2.0""
Tires
Butcher, GRID casing, 650x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
Brakes
Brakes
SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200/180mm rotor
Cockpit
Stem
Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise
Handlebar
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width
Grips
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Seat
Saddle
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Seatpost
Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.45 mm | 1.38 mm | 1.33 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 677 mm | 706 mm | 738 mm | 764 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 104 mm | 104 mm | 104 mm | 104 mm |
| Stack | 586 mm | 595 mm | 604 mm | 613 mm |
| Reach | 384 mm | 410 mm | 438 mm | 460 mm |
| Top Tube Length | 554 mm | 583 mm | 614 mm | 642 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 1092 mm | 1122 mm | 1154 mm | 1180 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 738 mm | 744 mm | 758 mm | 760 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

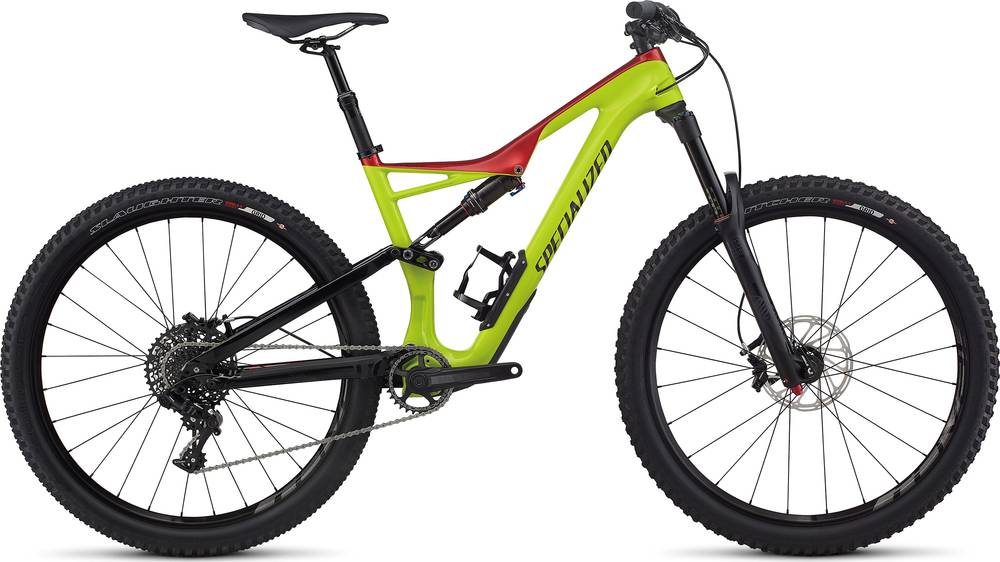

Stumpjumper FSR Comp Carbon 650b completes the Specialized Stumpjumper model. 352 bikes variations carry this model name so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Stumpjumper FSR Comp Carbon 650b components
Fork
The Stumpjumper FSR Comp Carbon 650b comes factory-installed with the RockShox Yari RC fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Stumpjumper FSR Comp Carbon 650b has a rear shock with a travel of 150mm. The model RockShox Monarch RT is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Specialized Stumpjumper FSR Comp Carbon 650b 2017, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stumpjumper FSR Comp Carbon 650b comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Specialized Stumpjumper FSR Comp Carbon 650b bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
