Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 135mm -
Fork RockShox Yari RC
-
Groupset GX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m, carbon front chassis, M5 alloy rear end, Trail Geometry, SWAT™ Door integration, PF30 BB, fully enclosed internal cable routing, ManFu link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm of travel
Suspension Fork
RockShox Yari 29/27.5+, Solo Air, rebound & compression adjust, 15x110mm Maxle Ultimate thru-axle, 150mm travel
Rear Shock
RockShox Monarch RT, Rx Trail Tune, AUTOSAG, rebound and 2-position compression adjust, 197x48mm
Drivetrain
Rear Derailleur
SRAM GX, long cage, 11-speed
Shift Levers
SRAM GX, 11-speed, trigger
Cassette
SRAM XG-1150, 11-speed, 10-42t
Crank
RaceFace Aeffect, 6000-series alloy, 24mm spindle, 52mm chainline, 28T, 28T, direct mount
Bottom Bracket
PF30
Chain
SRAM PC-1110, 11-speed w/PowerLink
Pedals
Resin Test Ride w/toe clips
Wheels
Front Hub
Specialized disc, alloy, sealed cartridge bearings,15x110mm thru-axle, 24h
Rear Hub
Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Rims
Roval Traverse 650b, hookless alloy, 29mm inner width, 24/28h, tubeless ready
Spokes
DT Swiss Industry, stainless, 3x, 2.0""
Tires
Purgatory, GRID casing, 650bx3.0"", 60TPI, Aramid folding bead, 2Bliss Ready
Brakes
Brakes
SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200/180mm rotor
Cockpit
Stem
Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise
Handlebar
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width
Grips
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Seat
Saddle
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Seatpost
Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.5 mm | 1.5 mm | 1.46 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 687 mm | 714 mm | 744 mm | 777 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96.5 mm | 96.5 mm | 96.5 mm | 96.5 mm |
| Stack | 614 mm | 614 mm | 642 mm | 660 mm |
| Reach | 382 mm | 409 mm | 427 mm | 453 mm |
| Top Tube Length | 559 mm | 586 mm | 612 mm | 644 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 95 mm | 125 mm | 145 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1118 mm | 1145 mm | 1175 mm | 1208 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 750 mm | 757 mm | 766 mm | 773 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

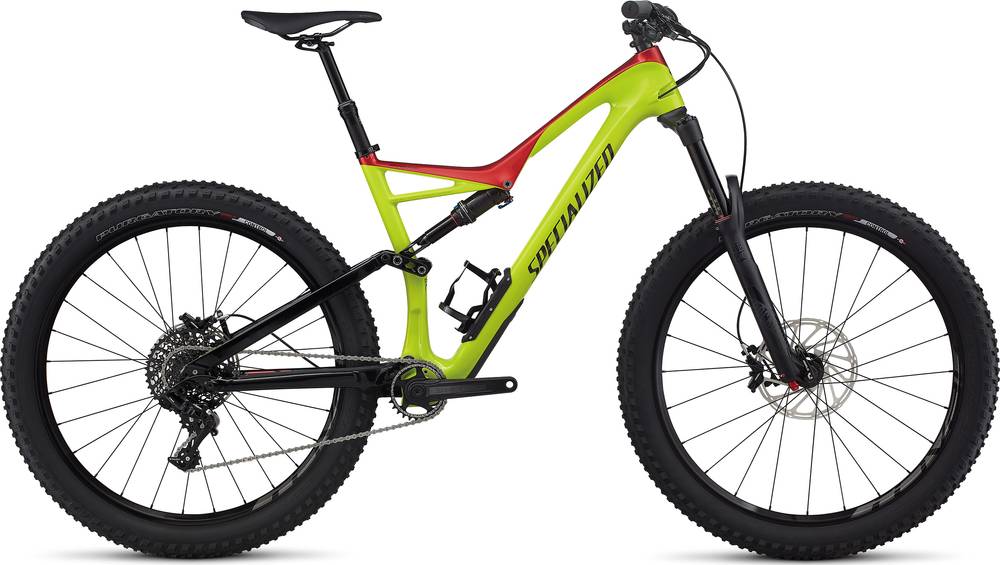

Stumpjumper FSR Comp Carbon 6Fattie is part of the Specialized Stumpjumper model. Specialized released 352 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Stumpjumper FSR Comp Carbon 6Fattie components
Fork
Specialized Stumpjumper FSR Comp Carbon 6Fattie 2017 bike is equipped with the RockShox Yari RC fork, and has 150mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the RockShox Monarch RT rear shock model, which has a travel of 135mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Stumpjumper FSR Comp Carbon 6Fattie are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Specialized Stumpjumper FSR Comp Carbon 6Fattie bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
