Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Rear 135mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components

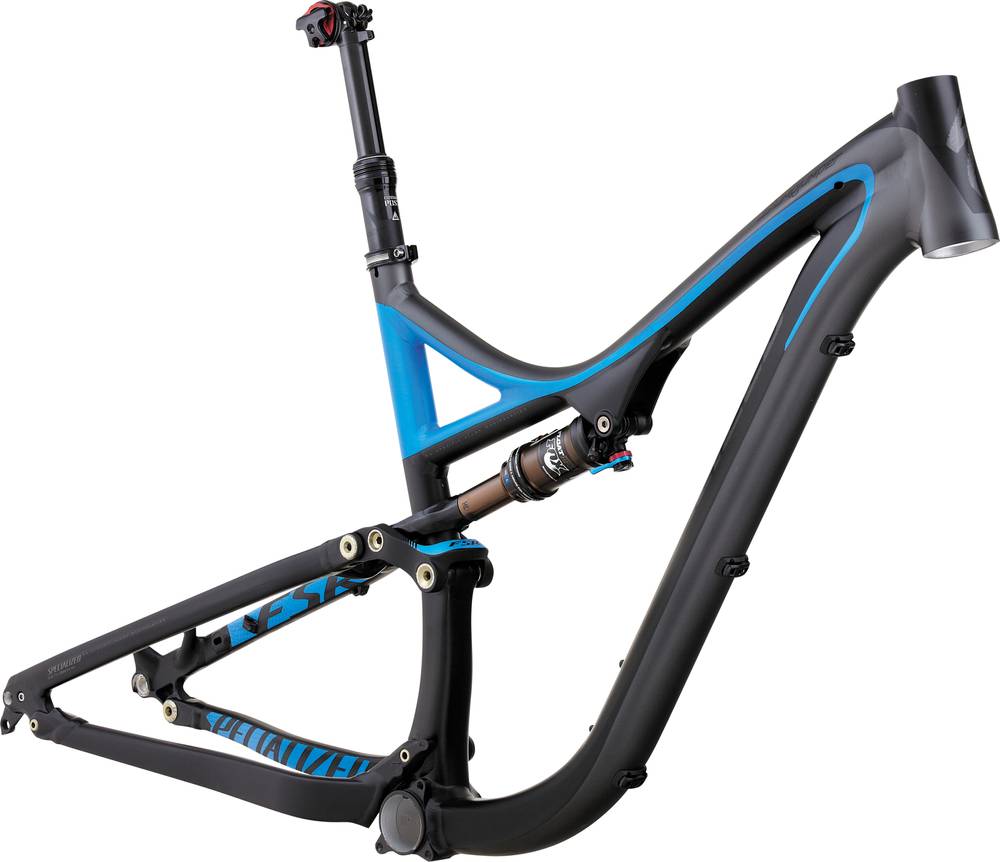

Frame
Frame
M5 hydroformed tubing, 29"" EVO geometry, tapered HT, PF30 BB, ISCG ’05, Command Post rouing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm travel
Rear Shock
Fox RP23 Adaptive Logic with AUTOSAG, Kashima coating, rebound adj. separate climbing setting and custom 3-position open comp adj. 197x46mm
Drivetrain
Bottom Bracket
PF30, press-fit
Cockpit
Headset
1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Seatpost
Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.53 mm | 1.48 mm | 1.45 mm | 1.46 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 674 mm | 703 mm | 730 mm | 758 mm | 781 mm |
| Rake | 47 mm | 47 mm | 46 mm | 46 mm | 46 mm |
| Trail | 101 mm | 101 mm | 102 mm | 102 mm | 102 mm |
| Stack | 615 mm | 625 mm | 639 mm | 657 mm | 681 mm |
| Reach | 383 mm | 409 mm | 431 mm | 452 mm | 465 mm |
| Top Tube Length | 563 mm | 592 mm | 618 mm | 644 mm | 664 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm | 565 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 145 mm | 170 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1122 mm | 1152 mm | 1179 mm | 1207 mm | 1230 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 746 mm | 737 mm | 746 mm | 760 mm | 775 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Stumpjumper FSR EVO 29 Frame belongs to the Specialized Stumpjumper model. Specialized launched 352 frames of this model so far. You can get a glimpse at all models from 2012, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail frames average price
Our math shows that the average cost of a dependable Trail frame is 1736$. However, even though the average price of a Trail frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Stumpjumper FSR EVO 29 Frame components
Rear Shock
From the factory, it comes with the Fox RP23 Adaptive Logic with AUTOSAG rear shock model, which has a travel of 135mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Dropper post
A dropper post is included with the Stumpjumper FSR EVO 29 Frame. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
