Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Rear 150mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M5 hydroformed tubing, EVO geometry, tapered HT, PF30 BB, ISCG ’05, Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm travel
Rear Shock
Fox RP23 Adaptive Logic with AUTOSAG, Kashima coating, rebound adj. separate climbing setting and custom 3-position open comp adj. 197x51mm
Drivetrain
Bottom Bracket
PF30, press-fit
Cockpit
Headset
1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Seatpost
Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.43 mm | 1.37 mm | 1.32 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 675 mm | 709 mm | 740 mm | 766 mm |
| Rake | 42 mm | 42 mm | 41 mm | 41 mm |
| Trail | 113 mm | 113 mm | 114 mm | 114 mm |
| Stack | 568 mm | 588 mm | 598 mm | 607 mm |
| Reach | 384 mm | 410 mm | 438 mm | 460 mm |
| Top Tube Length | 552 mm | 583 mm | 613 mm | 638 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 1091 mm | 1125 mm | 1156 mm | 1182 mm |
| Bottom Bracket Drop | 4 mm | 4 mm | 4 mm | 4 mm |
| Standover Height | 741 mm | 740 mm | 748 mm | 757 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

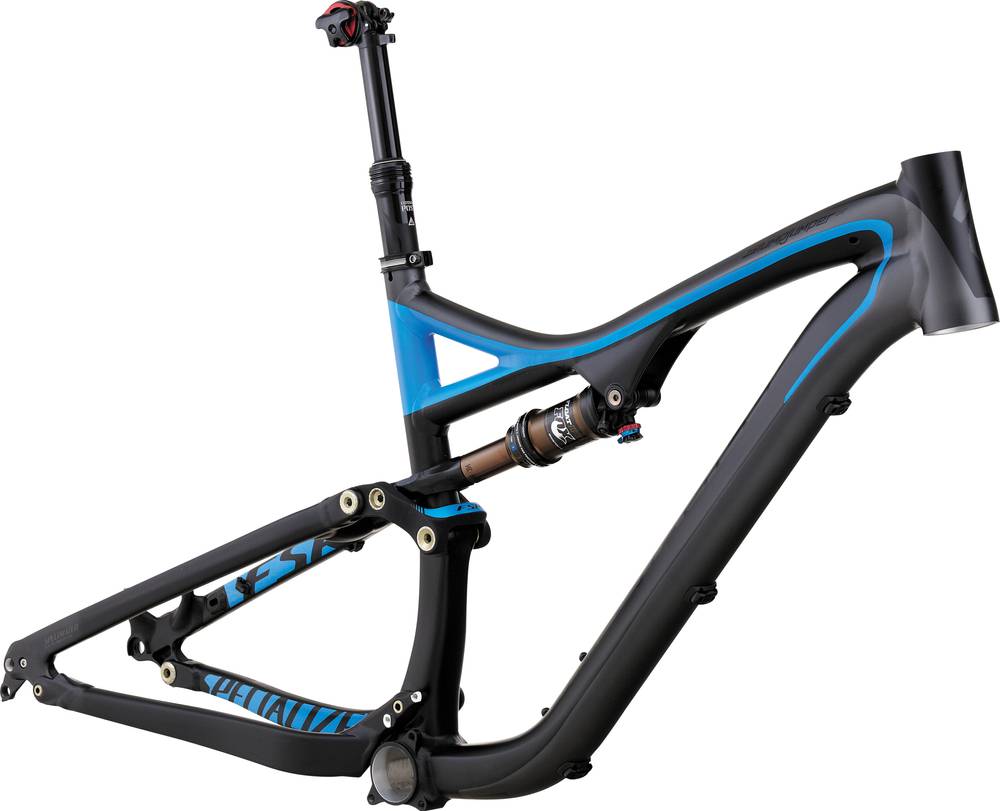

Stumpjumper FSR EVO Frame is a Specialized Stumpjumper model. Specialized released 352 frames variations of this model so far. You can easily view all of the Specialized Stumpjumper frames models from 2012, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro frames average price
According to our calculations, the average cost of an Enduro frame that is reliable is 1895$. However, even though the average price of an Enduro frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Rear Shock
The shock that’s installed on this frame is Fox RP23 Adaptive Logic with AUTOSAG, with a travel distance of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Specialized model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
