Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox
-
Groupset X0, Deore -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All new Stumpjumper FSR M5 manipulated alloy frame w/ ORE TT/DT, sealed cartridge bearing pivots, DMD Direct Mount F. Der, replaceable derailleur hanger, disc only, 120mm travel
Suspension Fork
Fox F120 RLC, 120mm travel, rebound/compression adjust, lock out w/ threashold adjust, alloy steerer
Rear Shock
Specialized AFR Shock w/ remote Trail Tune inertia valve, adj rebound and Brain Fade, 7.25x1.75""
Drivetrain
Rear Derailleur
SRAM X-0, 9-speed, mid cage
Front Derailleur
Shimano M581 LX, DMD, top swing, dual pull
Shift Levers
SRAM X-9, aluminum 9-speed trigger
Crank
Shimano M762 XT custom for Specialized
Bottom Bracket
Shimano M762 XT custom for Specialized
Chain
SRAM PC-971 w/ Power Link
Pedals
Crank Brothers Smarty custom for Specialized
Wheels
Front Hub
Specialized Hi Lo disc, 28h CNC flange and disc mount, sealed cartridge bearing, 9mm DT RWS alloy QR
Rear Hub
DT Swiss custom for Specialized 370 with DT RWS QR, 32h
Rims
DT Swiss custom for Specialized X420, 24mm w/ eyelets, 28/32h
Spokes
DT Swiss Competition 1.8/1.6mm
Tires
S-Works The Captain 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
Brakes
Brakes
Custom Avid Ultimate 7, hydraulic disc, 185 and 203mm rotor
Brake Levers
Custom Avid Ultimate 7, hydraulic disc
Cockpit
Stem
Specialized adjustable rise, 31.8mm clamp, 3D forged w/CNC finish
Handlebar
Specialized XC low rise 31.8mm bar, 2014 butted alloy, 6 degree up, 8 degree backsweep, 640mm wide
Headset
1 1/8"" threadless, alloy cups w/ 10mm insertion, sealed cartridge bearing
Seat
Saddle
Specialized XC MTB, hollow Cr-Mo rails, SL foam
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Top Tube Length | 562 mm | 596 mm | 631 mm | 651 mm | 671 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 406 mm | 445 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 160 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1090 mm | 1121 mm | 1161 mm | 1183 mm | 1203 mm |
| Bottom Bracket Drop | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm |
| Standover Height | 727 mm | 734 mm | 761 mm | 770 mm | 784 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview

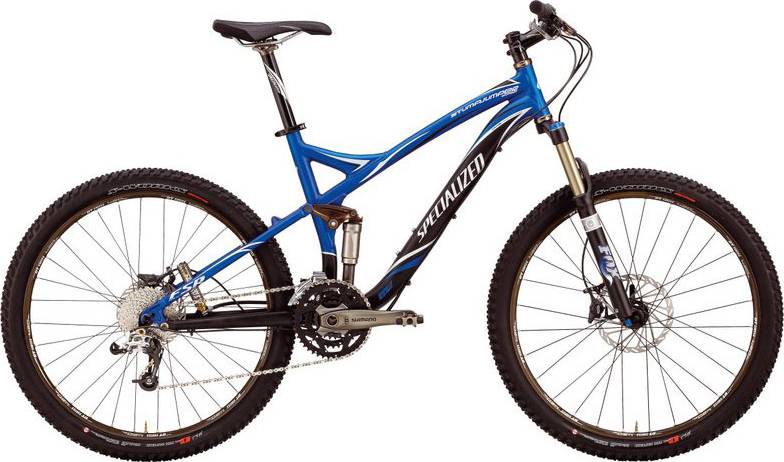

Stumpjumper FSR Expert is part of the Specialized Stumpjumper model. Specialized released 352 bikes variations of this model so far. Take a sneak peek at all Specialized Stumpjumper bikes models from 2008, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
Specialized Stumpjumper FSR Expert 2008 bike is equipped with the Fox fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
As for the rear shock, this bike has the Specialized AFR Shock w/ remote Trail Tune inertia valve model, with a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Stumpjumper FSR Expert bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Stumpjumper FSR Expert has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
