Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Rear 105mm -
Groupset SLX -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

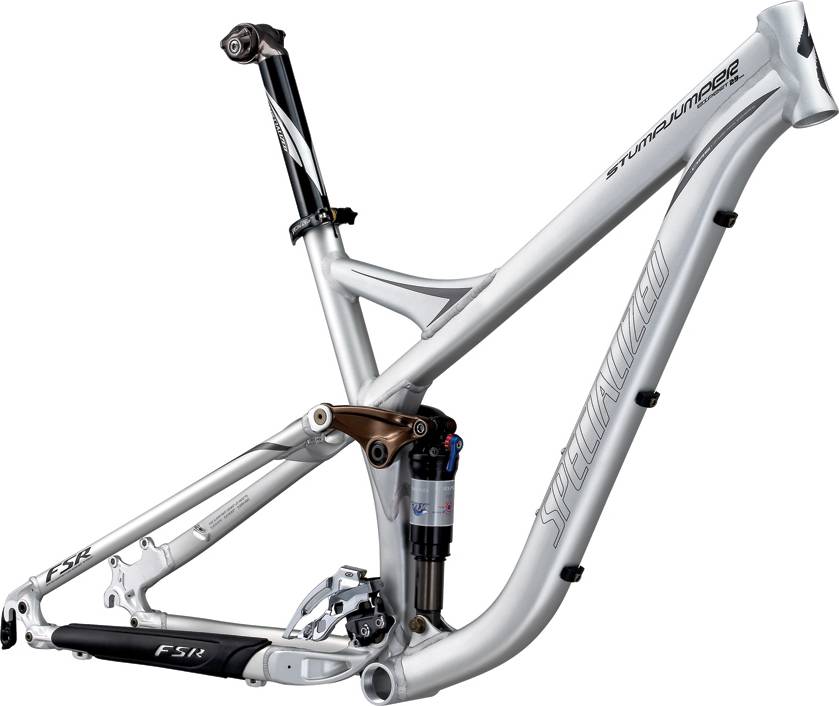

Stumpjumper FSR M5 Manipulated Alloy frame w/ ORE TT/DT for 29"" wheel, sealed cartridge bearing pivots, DMD Direct Mount Der, replaceable derailleur hanger, disc only, 105mm travel
Rear Shock
Fox Triad, custom on-the-fly 3-position switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, rebound adj. 7.25x1.5""
Drivetrain
Front Derailleur
Shimano M660 SLX, DMD, top swing, dual pull
Seat
Seatpost
2014 butted alloy, single-bolt setback, 30.9x350/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Bottom Bracket Height | 328 mm | 328 mm | 328 mm | 328 mm |
| Top Tube Length | 589 mm | 624 mm | 644 mm | 664 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 445 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1123 mm | 1160 mm | 1182 mm | 1202 mm |
| Bottom Bracket Drop | 46 mm | 46 mm | 46 mm | 46 mm |
| Standover Height | 712 mm | 719 mm | 761 mm | 780 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
Stumpjumper FSR Expert 29 Frame is part of the Specialized Stumpjumper model. There are 352 frames that carry this model name. You can easily view all of the Specialized Stumpjumper frames models from 2009, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry frames
Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, this doesn’t mean that if you spend less money on a Crosscountry frame, you couldn’t get a decent one. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Stumpjumper FSR Expert 29 Frame components
Rear Shock
The shock that’s installed on this frame is Fox Triad, with a travel distance of 105mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
