Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox
-
Groupset XTR, X7 -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m carbon front triangle, 29"" geometry, FACT IS construction, M5 alloy rear triangle, tapered headtube, carbon PF30 BB, ISCG ’05, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm travel
Suspension Fork
FOX Float CTD Performance 29, FIT damper, air spring, tapered steerer, comp, lockout, and reb adj. 15mm thru-axle, 130mm travel
Rear Shock
FOX/Specialized remote Brain w/ AUTOSAG, smaller Brain reservoir, inertia valve w/ Trail Tune, BrainFade adjust, 195x48mm
Drivetrain
Rear Derailleur
Shimano XTR Shadow Plus, 10-speed, SGS long cage
Front Derailleur
SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
Shift Levers
Shimano SLX, 10-speed, trigger
Cassette
SRAM PG-1050, 10-speed, 11-36
Crank
Custom SRAM carbon S-2200, 10-speed Trail double w/ carbon guard, PF30 spindle, removable spider, S: 170mm, Others: 175mm
Bottom Bracket
SRAM PF30, OS press-in bearings, sealed cartridge
Chain
SRAM PC 1051, 10-speed, PowerLink
Wheels
Front Hub
Roval Control Carbon 29, 15mm thru-axle, 32h
Rear Hub
Roval Control Carbon 29 142+, DT Swiss Star Ratchet, 12mm thru-axle, 32h
Rims
Roval Control Carbon 29, carbon disc, hookless bead, 22mm internal width, 32h
Spokes
DT Swiss Revolution, 2.0/1.5/2.0mm stainless
Tires
Specialized Purgatory Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, dual-compound, 60TPI
Brakes
Brakes
Shimano XT, hydraulic disc, Ice Tech metal pad, S/M: 180mm, Others: 200mm rotor
Brake Levers
Shimano XT, hydraulic
Cockpit
Stem
Specialized Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm clamp
Handlebar
Specialized XC Mini-Riser, 7050 butted alloy, 720mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Saddle
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Seatpost
Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.44 mm | 1.44 mm | 1.41 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 669 mm | 699 mm | 727 mm | 755 mm |
| Rake | 47 mm | 45 mm | 46 mm | 46 mm |
| Trail | 93 mm | 96 mm | 94 mm | 94 mm |
| Stack | 601 mm | 610 mm | 634 mm | 652 mm |
| Reach | 395 mm | 423 mm | 441 mm | 462 mm |
| Top Tube Length | 563 mm | 592 mm | 618 mm | 644 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 100 mm | 125 mm | 145 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1113 mm | 1143 mm | 1171 mm | 1199 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 746 mm | 737 mm | 746 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

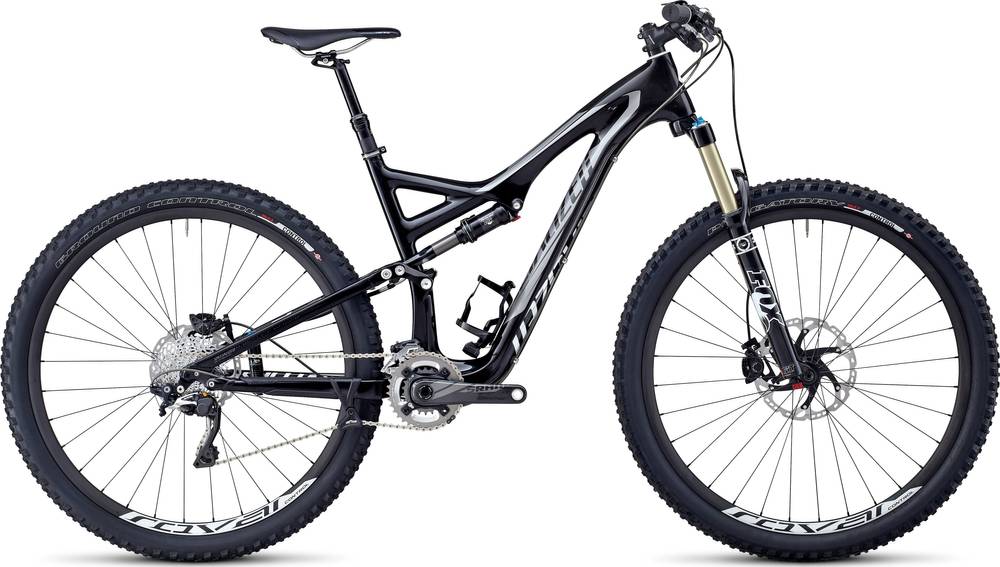

Stumpjumper FSR Expert Carbon 29 completes the Specialized Stumpjumper model. Specialized launched 352 bikes of this model so far. You can easily view all of the Specialized Stumpjumper bikes models from 2014, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Stumpjumper FSR Expert Carbon 29 components
Fork
The Stumpjumper FSR Expert Carbon 29 comes factory-installed with the Fox fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the FOX/Specialized remote Brain w/ AUTOSAG model, with a travel of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Stumpjumper FSR Expert Carbon 29 model has 29″ carbon wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Stumpjumper FSR Expert Carbon 29 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Specialized Stumpjumper FSR Expert Carbon 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Specialized Stumpjumper FSR Expert Carbon 29 comes with a dropper post. Therefore, climbing or descending will be a breeze.
