Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Pike RC
-
Groupset XTR, X7 -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m carbon, 29"" Trail Geometry, FACT IS construction, tapered headtube, PF30 BB, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm travel
Suspension Fork
RockShox Pike RC 29, Solo Air spring, tapered alloy steerer, w/ lockout, compression, rebound adj. 15mm thru-axle, 130mm travel
Rear Shock
FOX/Specialized remote Brain w/ AUTOSAG, smaller Brain reservoir, inertia valve w/ Trail Tune, BrainFade adjust, 195x48mm
Drivetrain
Rear Derailleur
Shimano XTR Shadow Plus, 10-speed, GS mid cage
Front Derailleur
SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
Shift Levers
Shimano SLX, 10-speed, trigger
Cassette
SRAM PG 1050, 10-speed, 11-36
Crank
Custom SRAM S-2200, carbon, PF30 spindle, 36/22, 104/64mm BCD spider
Bottom Bracket
SRAM, PF30, OS press-in bearings, sealed cartridge
Chain
SRAM PC 1051, 10-speed, w/ PowerLink
Pedals
Resin test ride, w/ toe clips, CEN std.
Wheels
Front Hub
Roval Control Carbon 29, 15mm thru-axle, 32h
Rear Hub
Roval Control Carbon 29 142+, DT Swiss Star Ratchet, 12mm thru-axle, 32h
Rims
Roval Control Carbon 29, carbon disc, hookless bead, 22mm internal width, 32h
Spokes
DT Swiss Revolution
Tires
Specialized Purgatory Control, 60TPI, 2Bliss Ready, folding bead, 29x2.3""
Brakes
Brakes
Shimano XT BR-M785, hydraulic disc, metallic pads, S/M: 180mm rotor, Others: 200mm
Brake Levers
Shimano XT BL-M785, hydraulic, alloy lever
Cockpit
Stem
Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise
Handlebar
Specialized XC, mini rise, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 31.8mm
Grips
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL
Headset
1-1/8"" and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Saddle
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Seatpost
Command Post IR, 3-position height adjustable, alien head design, bottom mount cable routing, w/ remote adjust standard lever, 30.9mm, S: 100mm travel, Others: 125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.44 mm | 1.44 mm | 1.41 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 669 mm | 699 mm | 727 mm | 755 mm |
| Rake | 47 mm | 45 mm | 46 mm | 46 mm |
| Trail | 93 mm | 96 mm | 94 mm | 94 mm |
| Stack | 601 mm | 610 mm | 634 mm | 652 mm |
| Reach | 395 mm | 423 mm | 441 mm | 462 mm |
| Top Tube Length | 563 mm | 592 mm | 618 mm | 644 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 100 mm | 125 mm | 145 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1113 mm | 1143 mm | 1171 mm | 1199 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 746 mm | 737 mm | 746 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

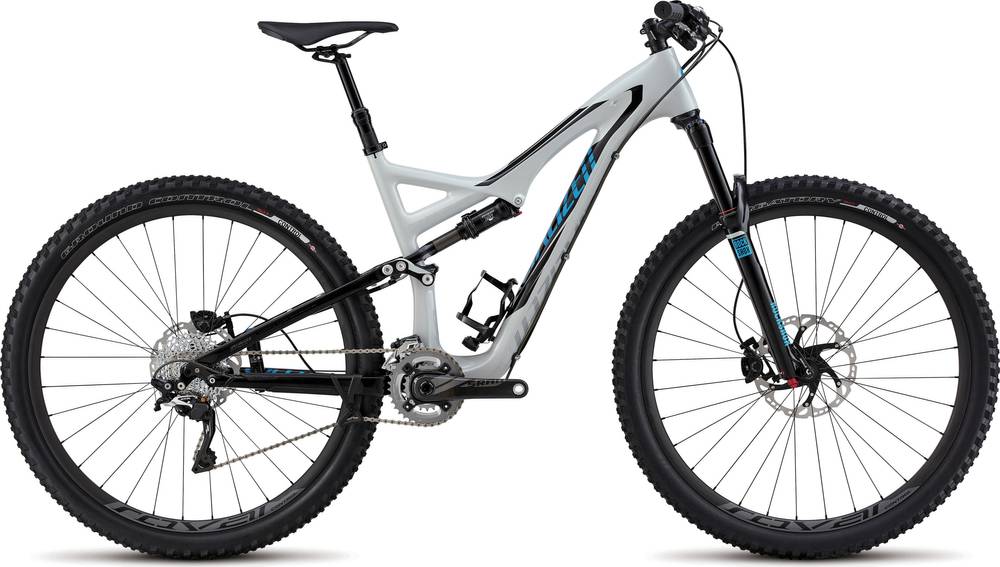

Stumpjumper FSR Expert Carbon 29 is a Specialized Stumpjumper model. Specialized released 352 bikes variations of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Stumpjumper FSR Expert Carbon 29 components
Fork
Specialized Stumpjumper FSR Expert Carbon 29 2015 bike is equipped with the RockShox Pike RC fork, and has 130mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
Stumpjumper FSR Expert Carbon 29 has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
The Stumpjumper FSR Expert Carbon 29 has a rear shock with a travel of 130mm. The model FOX/Specialized remote Brain w/ AUTOSAG is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Stumpjumper FSR Expert Carbon 29 model has 29″ carbon wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Specialized Stumpjumper FSR Expert Carbon 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Stumpjumper FSR Expert Carbon 29. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
