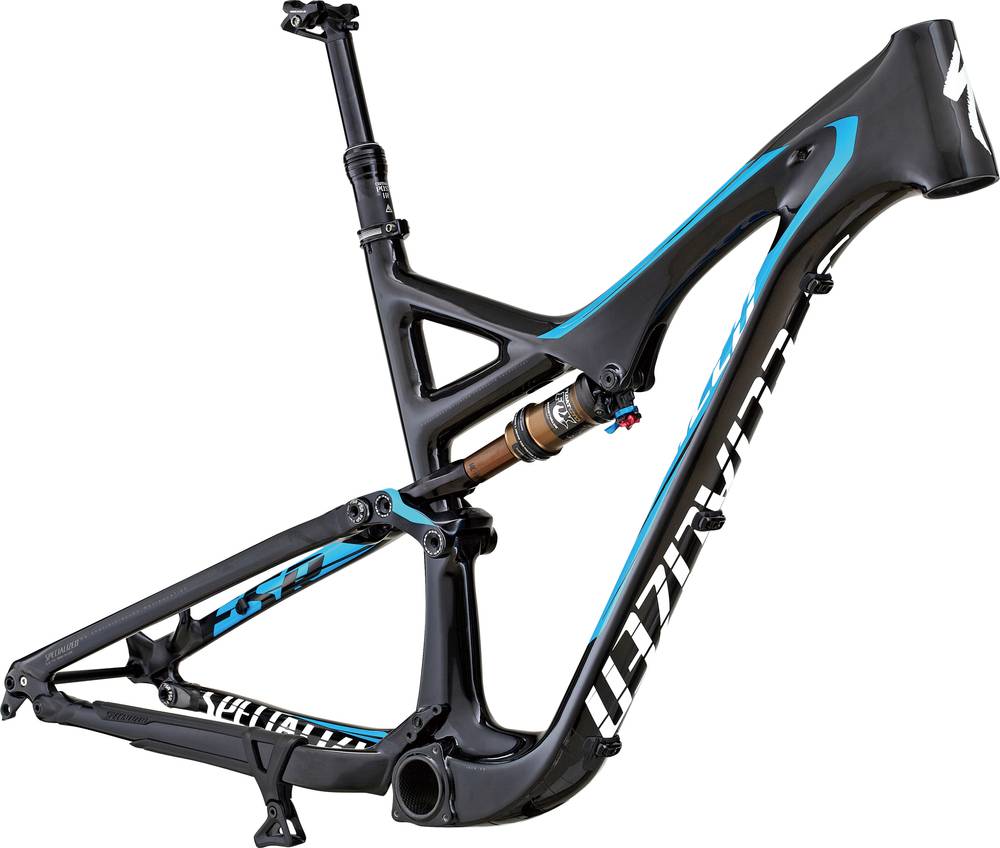

Specialized Stumpjumper FSR Expert Carbon EVO 29 Frame 2014
2014 Mountain
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 135mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m carbon front triangle, 29"" EVO geometry, FACT IS construction, M5 alloy rear triangle, tapered headtube, PF30 BB, ISCG ’05, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm travel
Rear Shock
Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, Kashima coating, Climb, Trail, Descend settings and reb adj. 195x46mm
Drivetrain
Bottom Bracket
PF30, press-fit
Cockpit
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Seatpost
Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.49 mm | 1.48 mm | 1.45 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 673 mm | 702 mm | 730 mm | 758 mm |
| Rake | 47 mm | 47 mm | 46 mm | 46 mm |
| Trail | 101 mm | 101 mm | 102 mm | 102 mm |
| Stack | 606 mm | 615 mm | 639 mm | 657 mm |
| Reach | 385 mm | 412 mm | 431 mm | 452 mm |
| Top Tube Length | 563 mm | 592 mm | 618 mm | 644 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 125 mm | 145 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1121 mm | 1151 mm | 1179 mm | 1207 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 746 mm | 737 mm | 746 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Stumpjumper FSR Expert Carbon EVO 29 Frame is a Specialized Stumpjumper model. Specialized launched 352 frames of this model so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail frames average price
Our math shows that the average cost of a dependable Trail frame is 1736$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Rear Shock
As for the rear shock, this frame has the Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve model, with a travel of 135mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Stumpjumper FSR Expert Carbon EVO 29 Frame. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
