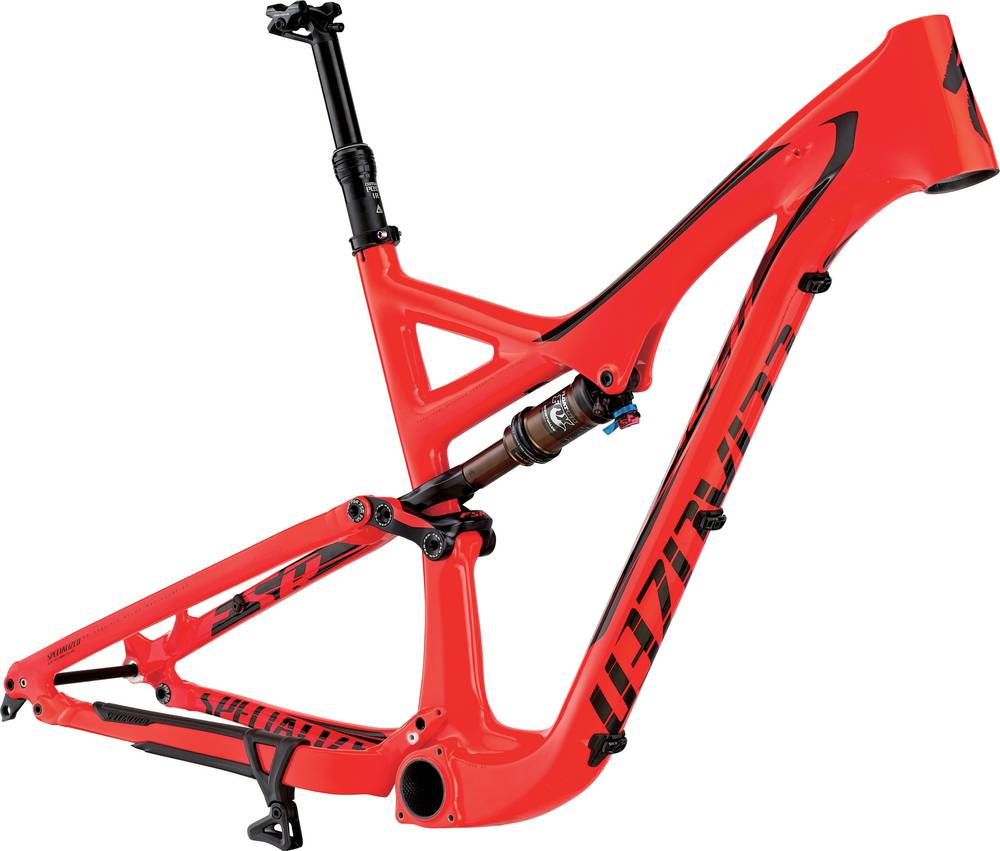

Specialized Stumpjumper FSR Expert Carbon EVO 29 Frame 2015
2015 Mountain
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 135mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m carbon, 29"" EVO geometry, FACT IS construction, FACT carbon front triangle, M5 alloy rear triangle, tapered headtube, PF30 BB, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm travel
Rear Shock
Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, Kashima coating, Climb, Trail, Descend settings and rebound adj. 195x46mm
Drivetrain
Bottom Bracket
PF30, press-fit
Cockpit
Headset
1-1/8"" and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Seatpost
Command Post IR w/ new SRL lever, 3-position height adjustable, alien head design, bottom mount cable routing, w/ remote adjust lever, 30.9mm, S: 100mm travel, Others: 125mm, includes standard/SRL levers
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.49 mm | 1.48 mm | 1.45 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 673 mm | 702 mm | 730 mm | 758 mm |
| Rake | 47 mm | 47 mm | 46 mm | 46 mm |
| Trail | 101 mm | 101 mm | 102 mm | 102 mm |
| Stack | 606 mm | 615 mm | 639 mm | 657 mm |
| Reach | 385 mm | 412 mm | 431 mm | 452 mm |
| Top Tube Length | 563 mm | 592 mm | 618 mm | 644 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 125 mm | 145 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1121 mm | 1151 mm | 1179 mm | 1207 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 746 mm | 737 mm | 746 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Stumpjumper FSR Expert Carbon EVO 29 Frame is part of the Specialized Stumpjumper model. Specialized released 352 frames variations of this model so far. Take a sneak peek at all Specialized Stumpjumper frames models from 2015, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail frames average price
According to our math, the average price for a trustworthy Trail frame is 1736$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Rear Shock
The shock that’s installed on this frame is Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, with a travel distance of 135mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
Specialized Stumpjumper FSR Expert Carbon EVO 29 Frame frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Stumpjumper FSR Expert Carbon EVO 29 Frame. Therefore, climbing or descending will be a breeze.
