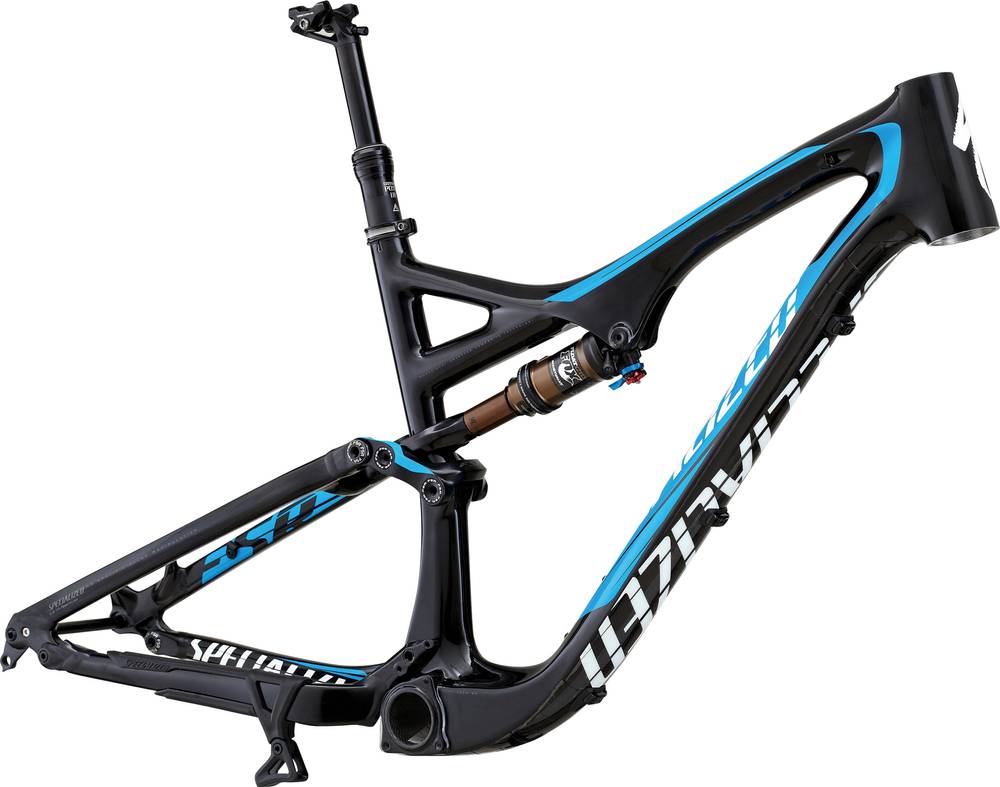

Specialized Stumpjumper FSR Expert Carbon EVO Frame 2014
2014 Mountain
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 150mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m carbon front triangle, EVO geometry, FACT IS construction, M5 alloy rear triangle, tapered headtube, carbon PF30 BB, ISCG ’05, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm travel
Rear Shock
Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, Kashima coating, Climb, Trail, Descend settings and reb adj. 195x51mm
Drivetrain
Bottom Bracket
PF30, press-fit
Cockpit
Headset
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
Seat
Seatpost
Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.43 mm | 1.37 mm | 1.32 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 675 mm | 709 mm | 740 mm | 766 mm |
| Rake | 42 mm | 42 mm | 41 mm | 41 mm |
| Trail | 113 mm | 113 mm | 114 mm | 114 mm |
| Stack | 568 mm | 588 mm | 598 mm | 607 mm |
| Reach | 384 mm | 410 mm | 438 mm | 460 mm |
| Top Tube Length | 552 mm | 583 mm | 613 mm | 638 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 1091 mm | 1125 mm | 1156 mm | 1182 mm |
| Bottom Bracket Drop | 4 mm | 4 mm | 4 mm | 4 mm |
| Standover Height | 741 mm | 740 mm | 748 mm | 757 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Stumpjumper FSR Expert Carbon EVO Frame is a Specialized Stumpjumper model. Specialized launched 352 frames of this model so far. You can easily view all of the Specialized Stumpjumper frames models from 2014, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro frames
According to our math, the average price for a trustworthy Enduro frame is 1895$. However, you could also get a good Enduro frame even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Rear Shock
The shock that’s installed on this frame is Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, with a travel distance of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
Stumpjumper FSR Expert Carbon EVO Frame comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
