Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork RockShox Pike RC
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m, full carbon chassis and rear end, Trail Geometry, SWAT™ Door integration, PF30 BB, fully enclosed internal cable routing, ManFu link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm of travel
Suspension Fork
RockShox Pike RC 29/27.5+, Solo Air, compression and rebound adjust, tapered steerer, 15x110mm Maxle Stealth thru-axle, 51mm offset, 150mm travel
Rear Shock
Custom Öhlins STX, Single Tube design, Rx Trail Tune, 3rd Chamber air spring technology, AUTOSAG, adjustable compression & rebound damping, 197x48mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Shift Levers
SRAM X01 Eagle, 12-speed, trigger
Cassette
SRAM XG-1295, 12-speed, 10-50t
Crank
Custom SRAM X1, alloy, 30mm spindle, 52mm chainline, 30T
Bottom Bracket
SRAM PF30, OS press-in bearings
Chain
SRAM X01 Eagle, silver, 12-speed w/PowerLink
Pedals
Resin Test Ride w/toe clips
Wheels
Front Hub
Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h
Rear Hub
Roval Traverse, DT Swiss internals, sealed cartridge bearings, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Rims
Roval Traverse 29, hookless alloy, 29mm inner width, 24/28h, tubeless ready
Spokes
DT Swiss Revolution
Tires
Butcher, GRID casing, 29x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
Brakes
Brakes
SRAM Guide RS, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200mm rotor
Cockpit
Stem
Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise
Handlebar
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 25mm rise, 750mm width, 31.8mm
Grips
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Seat
Saddle
Body Geometry Henge Expert, hollow titanium rails, 143mm
Seatpost
Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.5 mm | 1.5 mm | 1.46 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 687 mm | 714 mm | 744 mm | 777 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96.5 mm | 96.5 mm | 96.5 mm | 96.5 mm |
| Stack | 614 mm | 614 mm | 642 mm | 660 mm |
| Reach | 382 mm | 409 mm | 427 mm | 453 mm |
| Top Tube Length | 559 mm | 586 mm | 612 mm | 644 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 95 mm | 125 mm | 145 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1118 mm | 1145 mm | 1175 mm | 1208 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 750 mm | 757 mm | 766 mm | 773 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

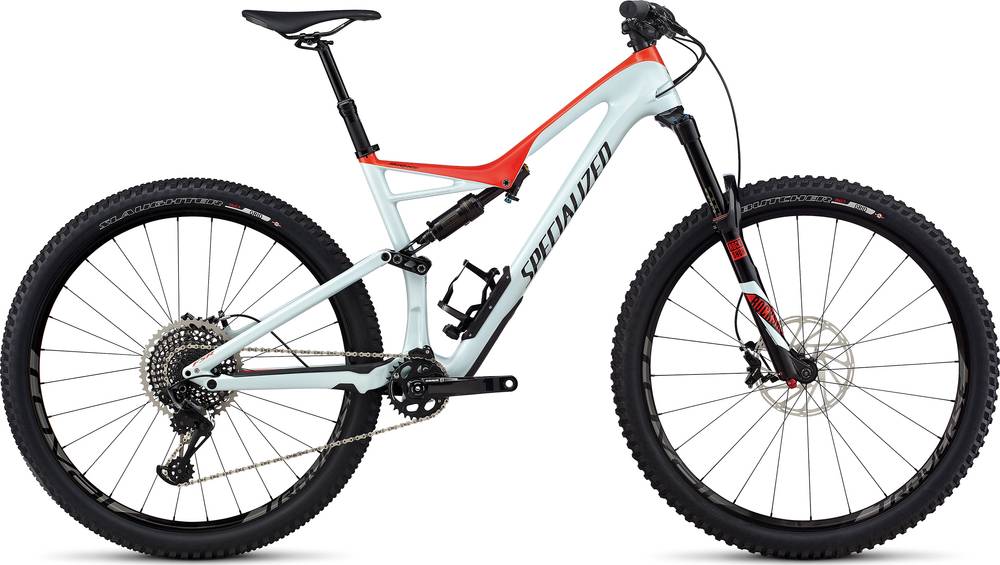

Stumpjumper FSR Pro Carbon 29 completes the Specialized Stumpjumper model. Specialized launched 352 bikes of this model so far. Take a sneak peek at all Specialized Stumpjumper bikes models from 2017, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The Stumpjumper FSR Pro Carbon 29 comes factory-installed with the RockShox Pike RC fork. This has a travel range of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Custom Öhlins STX, with a travel distance of 135mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Stumpjumper FSR Pro Carbon 29 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stumpjumper FSR Pro Carbon 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Specialized Stumpjumper FSR Pro Carbon 29 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
