Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Rear 140mm -
Groupset XT -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

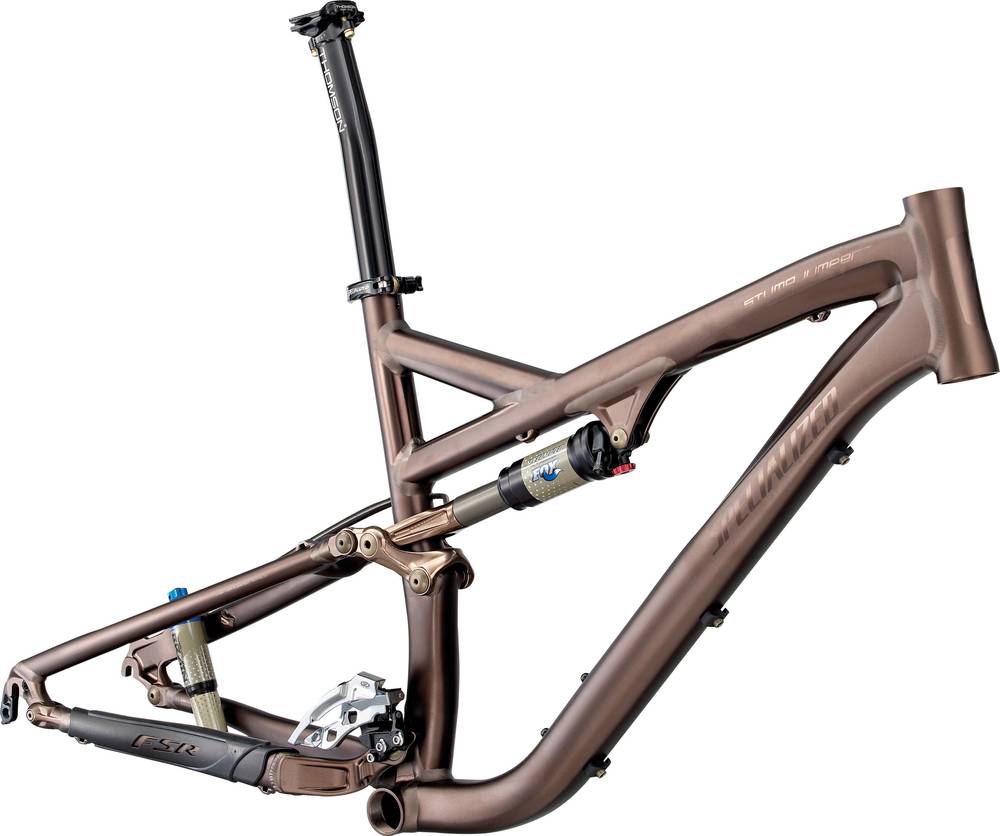

Stumpjumper FSR M5 manipulated alloy frame, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm travel
Rear Shock
Specialized/Fox AFR Brain Shock w/ remote Trail Tune inertia valve, rebound adj. and Brain Fade, 7.875x1.9"" Integrated cartridge bearing shock mount.
Drivetrain
Front Derailleur
Shimano M770 XT, DMD, top swing, dual pull
Cockpit
Headset
Campy style cartridge bearings for integrated alloy HT
Seat
Seatpost
Thomson Elite Setback w/ 12 degree clamp, S/M: 367mm L/XL:410mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.31 mm | 1.27 mm | 1.21 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Stack | 571 mm | 590 mm | 600 mm | 609 mm | 609 mm |
| Reach | 404 mm | 430 mm | 458 mm | 480 mm | 503 mm |
| Top Tube Length | 562 mm | 593 mm | 623 mm | 648 mm | 671 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 406 mm | 445 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 118 mm | 138 mm | 148 mm | 158 mm | 158 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1089 mm | 1122 mm | 1153 mm | 1179 mm | 1202 mm |
| Bottom Bracket Drop | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm |
| Standover Height | 747 mm | 752 mm | 759 mm | 772 mm | 776 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
About this model
Stumpjumper FSR Pro Frame M5 is a Specialized Stumpjumper model. Specialized launched 352 frames of this model so far. Check out the entire range from 2010 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail frames
According to our math, the average price for a trustworthy Trail frame is 1736$. However, even though the average price of a Trail frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Rear Shock
The shock that’s installed on this frame is Specialized/Fox AFR Brain Shock w/ remote, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
