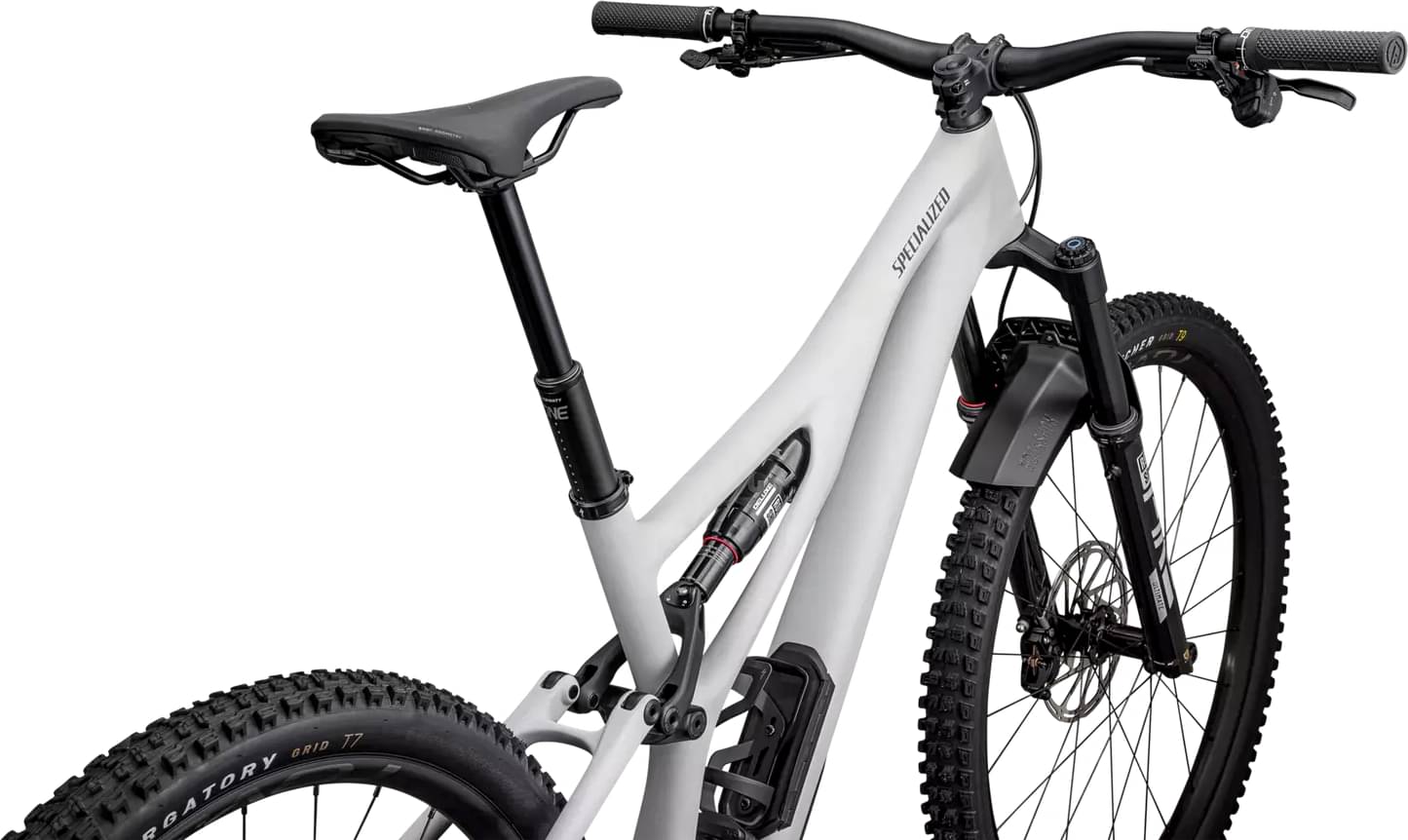

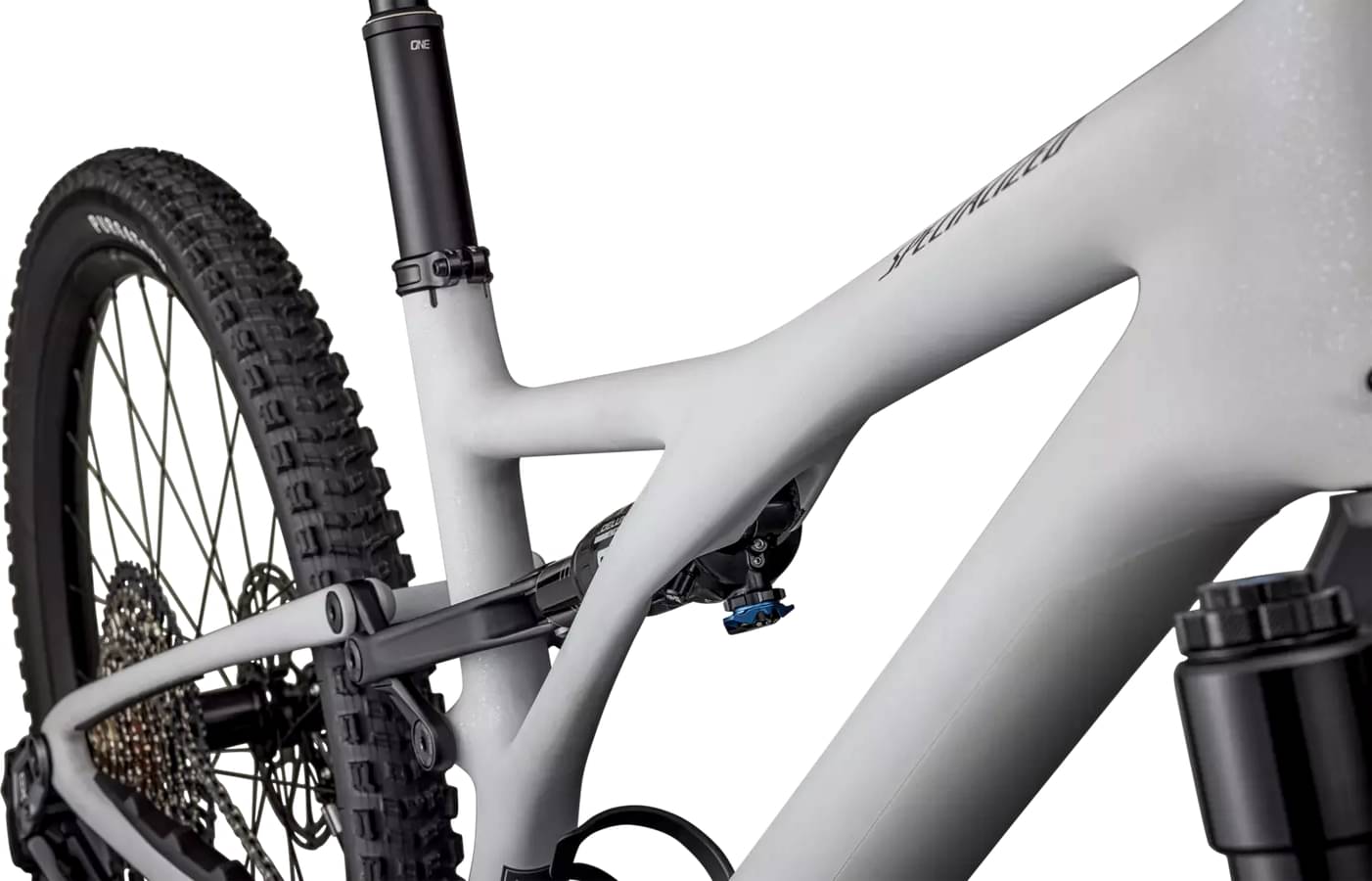

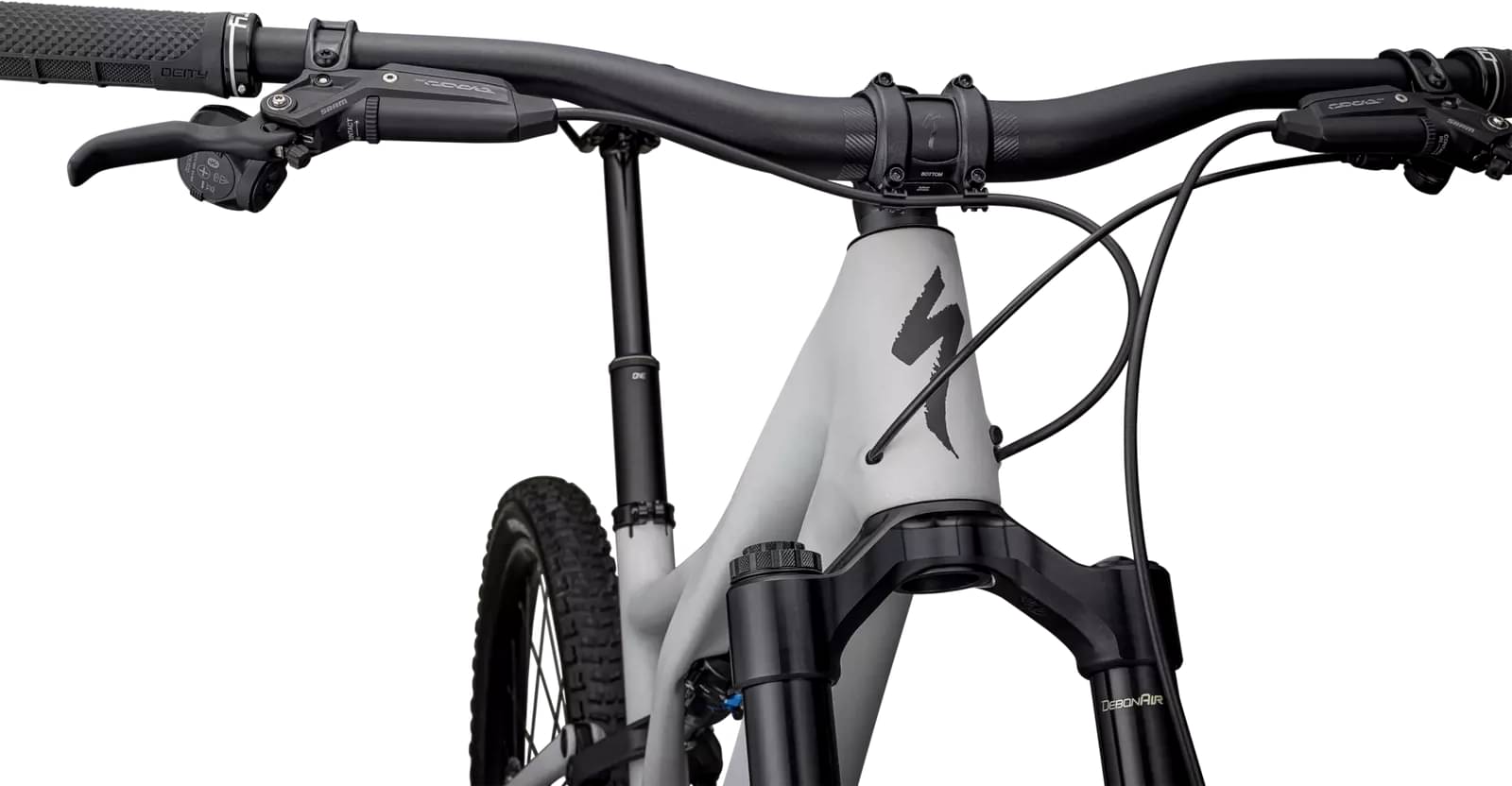

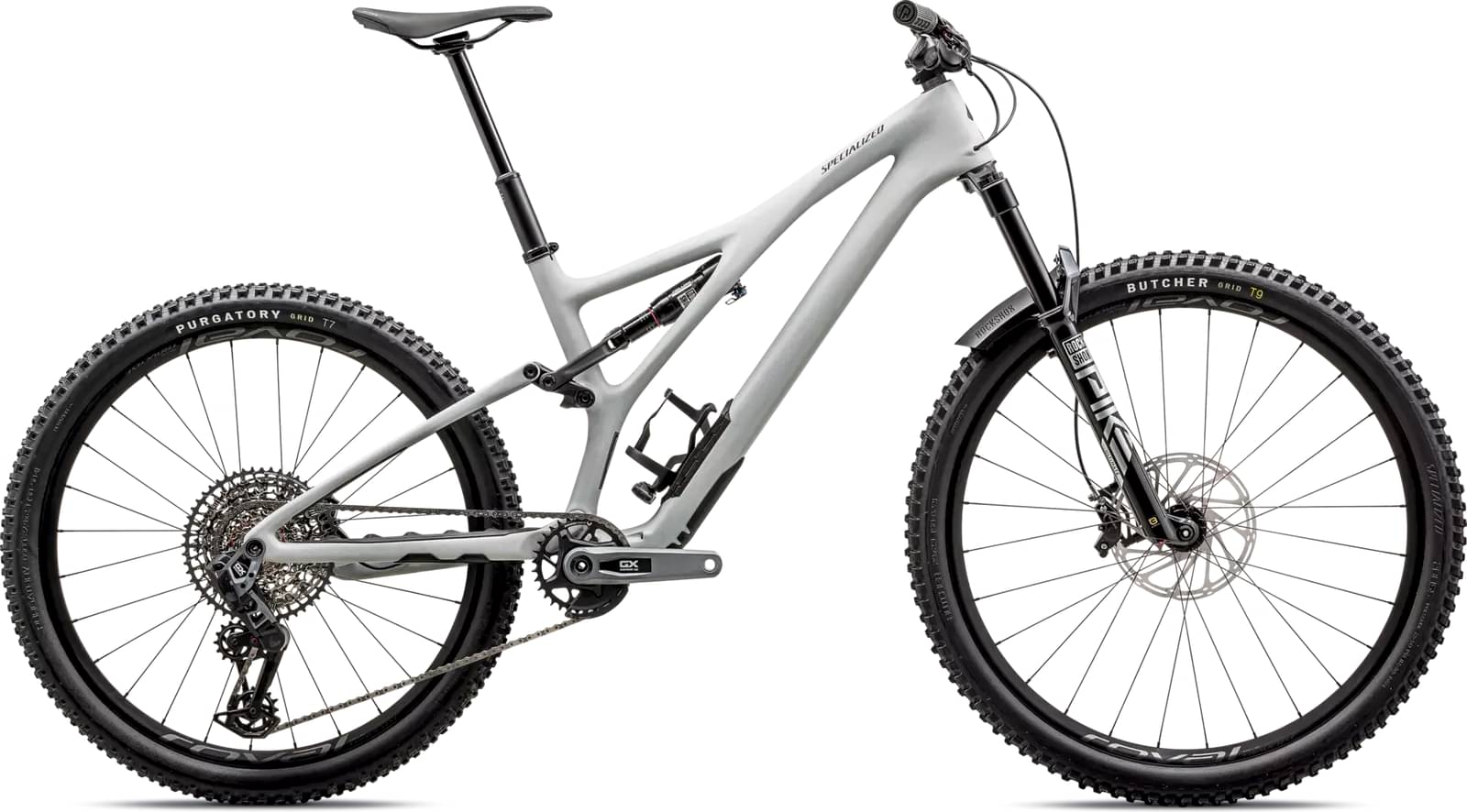

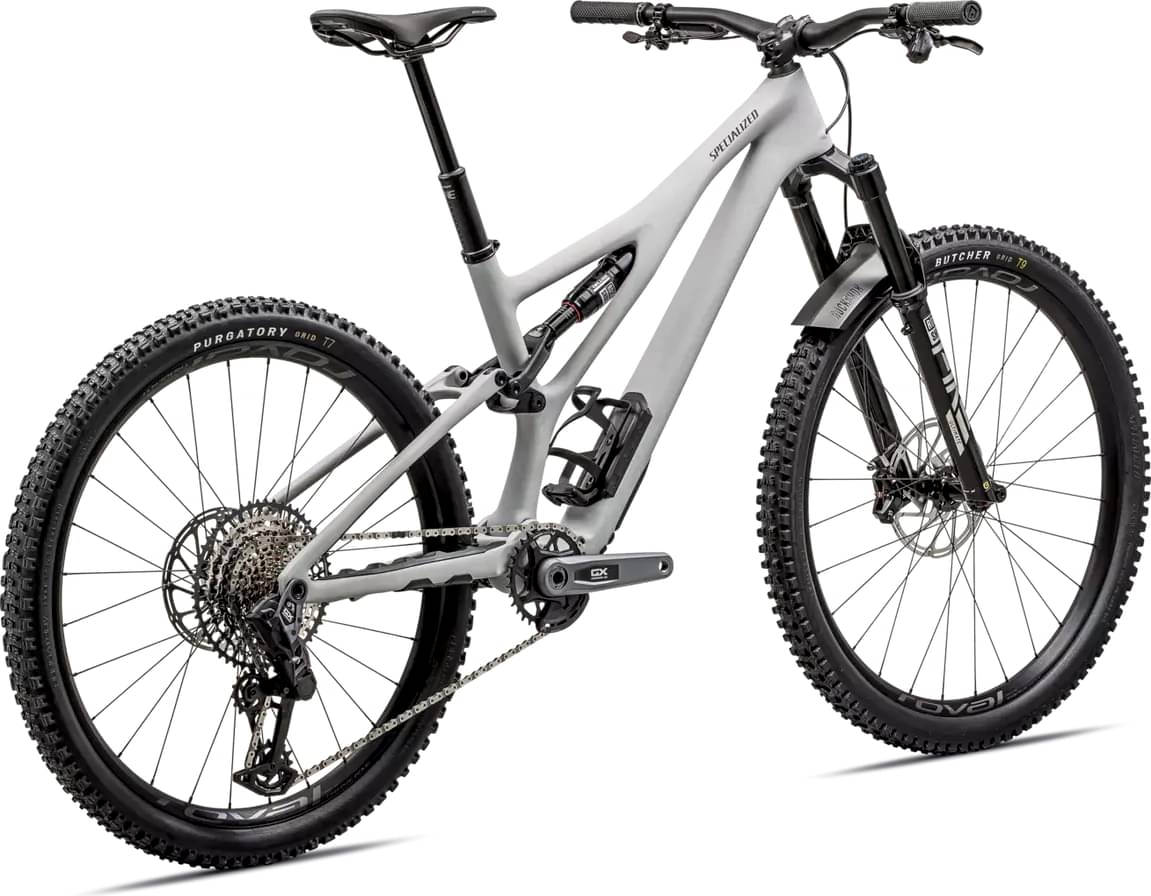

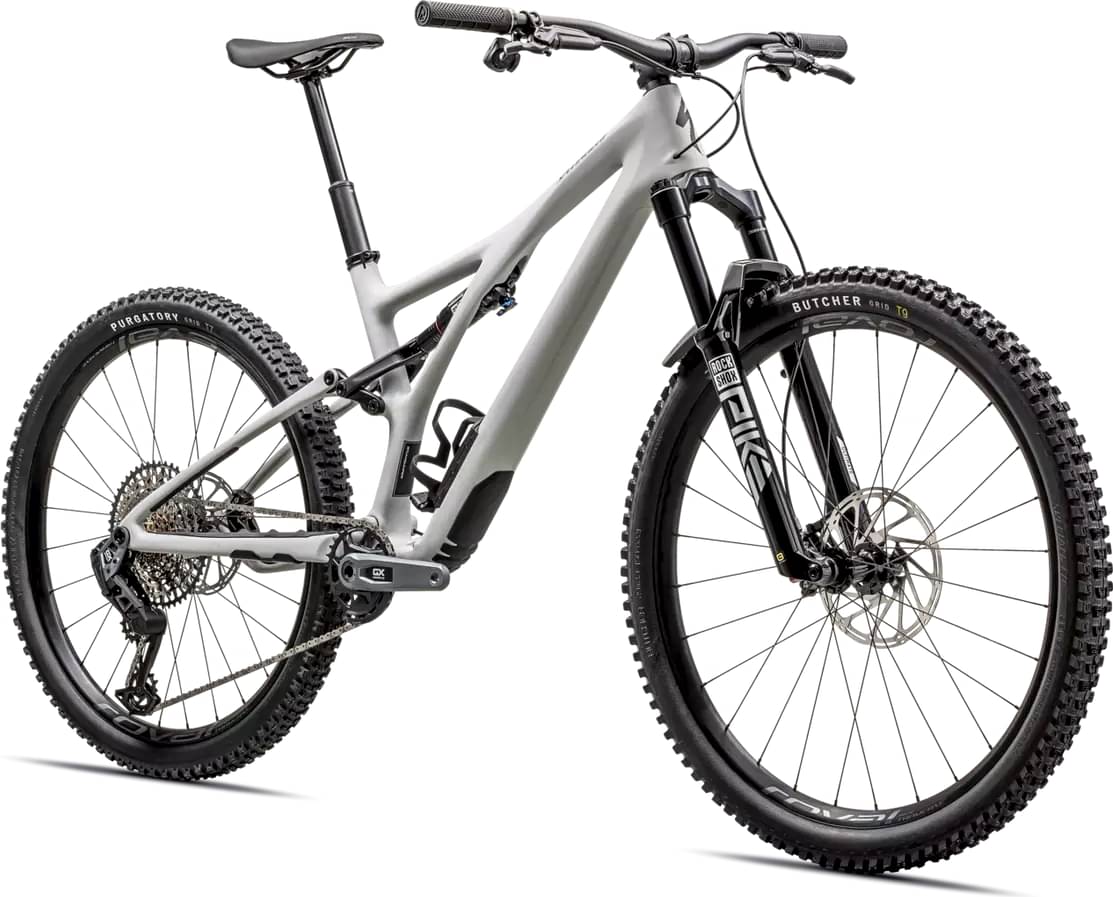

Specialized Stumpjumper LTD 2024
2024 Mountain
Estimate price |
6,000$
Weight | 13.68 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Ultimate
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
S1
149cm - 160cm
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m carbon chassis and rear-end, asymmetrical design, 29/27.5 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
Suspension Fork
RockShox Pike Ultimate, Charger 3 RC2 Damper w/Buttercups, 15x110mm axle, 44mm offset, 140mm of travel
Rear Shock
RockShox Deluxe Ultimate, Rx Trail Tune, 190x45
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Shift Levers
SRAM AXS POD Controller
Cassette
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Crank
SRAM GX Eagle Crankset, Alloy, Integrated Guard, 55mm Chainline, S1:165mm, S2-S5: 170mm, S6: 175mm, 32T
Bottom Bracket
SRAM DUB, BSA 73mm Wide, Threaded
Chain
SRAM GX Eagle Transmission Flattop Chain
Wheels
Front Hub
Roval, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub
Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Rims
Roval Traverse 29F/27.5R Alloy, 30mm inner width, hand-built, 2Bliss Ready
Spokes
DT Swiss Competition Race
Tires
Front: Butcher, GRID casing, GRIPTON® T9 compound, 29x2.3", Rear: Purgatory, GRID casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"
Brakes
Brakes
Front: SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm, Rear: SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebar
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
Grips
Deity Lockjaw
Seat
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Seatpost
OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.42 mm | 1.38 mm | 1.33 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 328 mm | 333 mm | 333 mm | 333 mm | 333 mm | 333 mm |
| Front Center | 724 mm | 746 mm | 770 mm | 800 mm | 829 mm | 863 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 616 mm | 615 mm | 624 mm | 634 mm | 643 mm | 652 mm |
| Reach | 412 mm | 432 mm | 452 mm | 477 mm | 502 mm | 532 mm |
| Top Tube Length | 565 mm | 585 mm | 607 mm | 634 mm | 662 mm | 694 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 385 mm | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 444 mm | 444 mm |
| Wheelbase | 1154 mm | 1177 mm | 1202 mm | 1230 mm | 1270 mm | 1304 mm |
| Bottom Bracket Drop | 47 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 732 mm | 736 mm | 746 mm | 751 mm | 759 mm | 759 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 160 cm | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
Model Overview
Stumpjumper LTD is a Specialized Stumpjumper model. There are 352 bikes that carry this model name. You can easily view all of the Specialized Stumpjumper bikes models from 2024, here.
Model range prices
Specialized Stumpjumper Comp 2024 is the most economical model, with a starting price of 5000$. Specialized S-Works Stumpjumper 2024 on the other hand costs 11000$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Specialized released this model in 2024, its price was 6000$. Comparing the average cost of a Trail bike to this one, you will see that Stumpjumper LTD price is 117.23% higher.
Trail bikes average weight
Trail bikes have an average weight of 12.88 kg (28.4 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit heavier than average, Stumpjumper LTD has a weight of 13.68 kg (30.16 lbs). In short, the average Trail bike weight is 6.21% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Stumpjumper LTD components
Fork
Specialized Stumpjumper LTD 2024 bike is equipped with the RockShox Pike Ultimate fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the RockShox Deluxe Ultimate rear shock model, which has a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Stumpjumper LTD model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Stumpjumper LTD has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Specialized Stumpjumper LTD bike has 6 sizes, in the range of 149 cm – 203 cm (4.89 ft – 6.66 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Stumpjumper LTD. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
