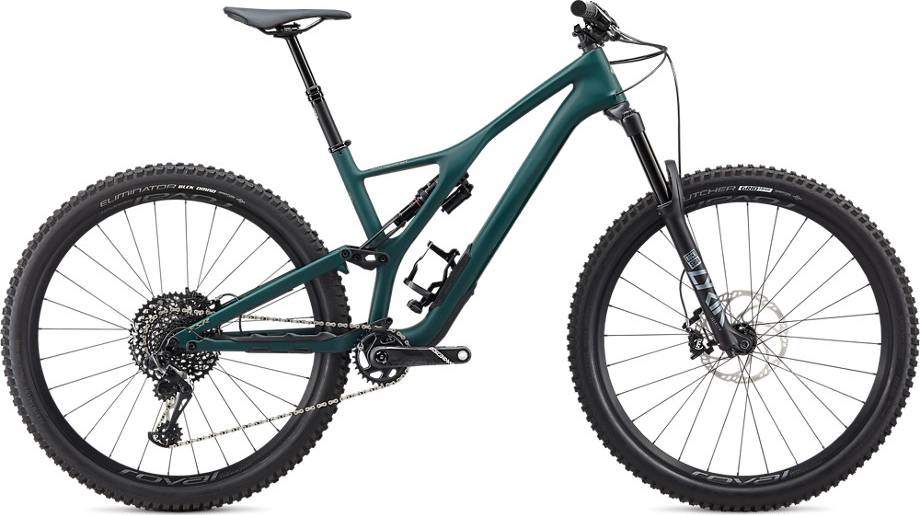

Specialized Stumpjumper ST LTD Downieville Carbon 29 2020
2020 Mountain
Estimate price |
6,220$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork RockShox Lyrik Select
-
Groupset X01 Eagle, SRAM -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m, full carbon chassis and rear end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm of travel
Suspension Fork
RockShox Lyrik Select Plus, DebonAir, rebound adjust, low-speed compression adjust, tapered steerer, 51mm offset, 15mm Maxle® Stealth thru-axle, 15x110mm Boost™, 140mm of travel
Rear Shock
RockShox Super Deluxe Select Plus, Rx Trail Tune, 3-position low-speed compression adjust, rebound adjust, 190x45mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Shift Levers
SRAM X01 Eagle, trigger, 12-speed
Cassette
SRAM XG-1275 Eagle, 12-speed, 10-50t
Crank
SRAM Decsendant Carbon, Boost™ 148, DUB, 170mm crankarm, 30T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Chain
SRAM GX Eagle, 12-speed
Wheels
Front Hub
Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 28h
Rear Hub
Roval Traverse, DT Swiss 3-Pawl System, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Rims
Roval Traverse 29, hookless alloy, 30mm inner width, 2Bliss Ready
Spokes
DT Competition Race
Tires
Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
Brakes
Brakes
Magura MT5, 4-piston caliper, hydraulic disc, 200mm
Cockpit
Stem
Specialized Trail, forged alloy, 4-bolt, 5mm rise, 40mm
Handlebar
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp
Grips
Deity, Knuckleduster, Black
Seat
Saddle
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Seatpost
RockShox Reverb Stealth, 30.9, 1X remote, (S: 125mm, M: 150mm, L/XL:175mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.42 mm | 1.42 mm | 1.38 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 710 mm | 730 mm | 762 mm | 793 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 103 mm | 103 mm | 103 mm | 103 mm |
| Stack | 608 mm | 608 mm | 635 mm | 649 mm |
| Reach | 407 mm | 427 mm | 447 mm | 472 mm |
| Top Tube Length | 567 mm | 591 mm | 623 mm | 657 mm |
| Seat Tube Angle | 75.3 ° | 75 ° | 74.6 ° | 74.2 ° |
| Seat Tube Length | 380 mm | 410 mm | 455 mm | 505 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 95 mm | 125 mm | 140 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1142 mm | 1162 mm | 1194 mm | 1224 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 369 mm | 779 mm | 369 mm | 369 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Stumpjumper ST LTD Downieville Carbon 29 is a Specialized Stumpjumper model. Specialized launched 352 bikes of this model so far. You can easily view all of the Specialized Stumpjumper bikes models from 2020, here.
Model range prices
Specialized Stumpjumper ST Alloy 27.5 2020 is the most affordable bike of this model and has a price of 2010$. On the other hand, Specialized S-Works Stumpjumper SRAM AXS 29 2020, is the most expensive and costs 10520$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6220$. Comparing this to the average Trail bike price, we see that the price is 125.2% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Stumpjumper ST LTD Downieville Carbon 29 components
Fork
The Stumpjumper ST LTD Downieville Carbon 29 comes factory-installed with the RockShox Lyrik Select fork. This has a travel range of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is RockShox Super Deluxe Select Plus, with a travel distance of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Specialized Stumpjumper ST LTD Downieville Carbon 29 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Stumpjumper ST LTD Downieville Carbon 29 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Stumpjumper ST LTD Downieville Carbon 29 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
