Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Rear 170mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

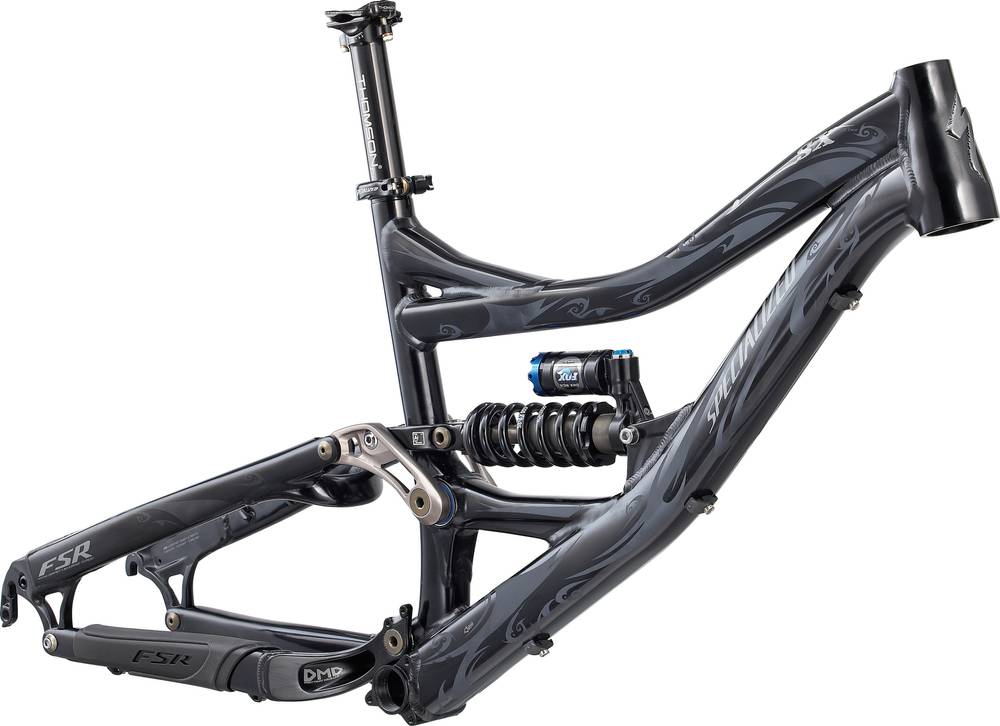

SX Trail M5 Premium Aluminum frame, ORE TT/DT, forged HT, full cartridge bearing pivots and shock yoke, ISCG mount, replaceable derailleur hanger, derailleur guard, 170mm travel
Rear Shock
Specialized DHX RC4 coil 7.875x2.25"" for SX Trail, rebound adj. High and low speed compression adj. and bottom out control, S:500, M:550, L:600
Seat
Seatpost
Thomson straight w/ 12 degree clamp, 367mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.3 mm |
| Bottom Bracket Height | 356 mm | 356 mm | 356 mm |
| Stack | 580 mm | 580 mm | 580 mm |
| Reach | 405 mm | 423 mm | 446 mm |
| Top Tube Length | 568 mm | 586 mm | 609 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 394 mm | 419 mm | 470 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm |
| Wheelbase | 1143 mm | 1161 mm | 1184 mm |
| Bottom Bracket Drop | -13 mm | -13 mm | -13 mm |
| Standover Height | 694 mm | 693 mm | 729 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
SX Trail Frame completes the Specialized Sx model. Specialized launched 15 frames of this model so far. Check out the entire range from 2010 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Downhill frames average price
According to our math, the average price for a trustworthy Downhill frame is 1923$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Overview of components
Rear Shock
The shock that’s installed on this frame is Specialized DHX RC4 coil 7.875×2.25″” for SX Trail, with a travel distance of 170mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
Specialized SX Trail Frame frame has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
