Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Rear 180mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components

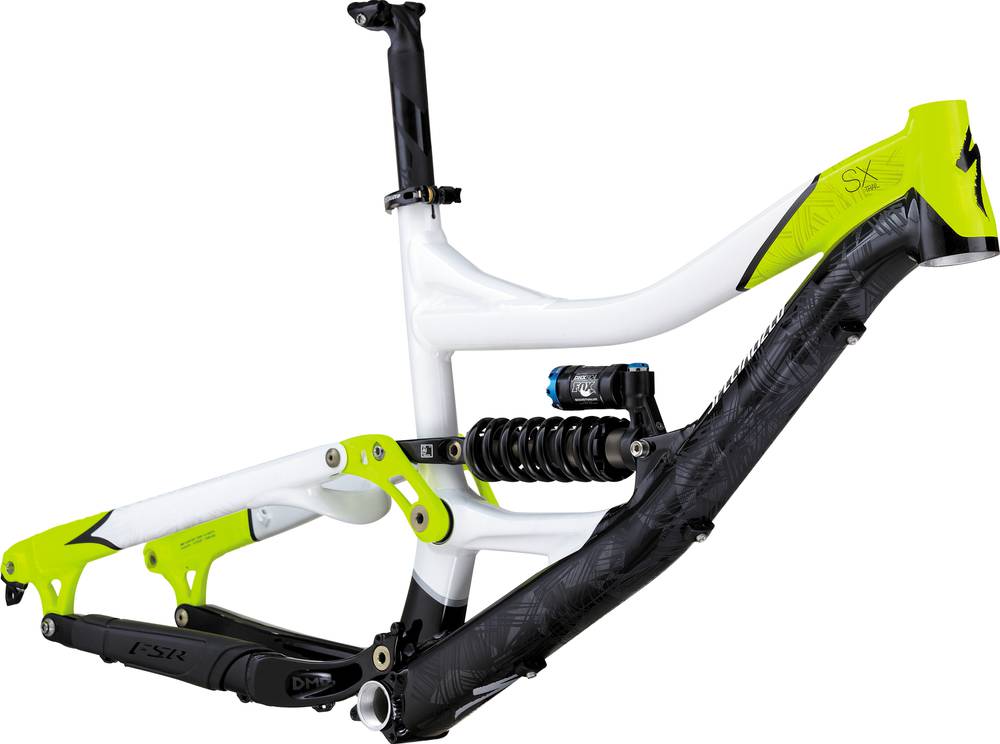

Frame
Frame
M5 manipulated alloy, ORE TT/DT, tapered and forged HT, ISCG mount, 142mm dropouts, full cartridge bearing pivots and shock yoke, replaceable derailleur hanger, derailleur guard, 180mm travel
Rear Shock
Fox DHX RC4, coil over w/piggy back, rebound and High/Low speed compression and bottom-out control adj. 8.5x2.5"", S:450, M:500, L:550
Seat
Seatpost
2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, others: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.32 mm |
| Bottom Bracket Height | 356 mm | 356 mm | 356 mm |
| Stack | 588 mm | 588 mm | 588 mm |
| Reach | 406 mm | 423 mm | 447 mm |
| Top Tube Length | 570 mm | 588 mm | 611 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 394 mm | 419 mm | 458 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 112 mm | 112 mm | 112 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm |
| Wheelbase | 1153 mm | 1171 mm | 1194 mm |
| Bottom Bracket Drop | -13 mm | -13 mm | -13 mm |
| Standover Height | 725 mm | 728 mm | 734 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
SX Trail Frame is part of the Specialized Sx model. There are 15 frames that carry this model name. Check out the entire range from 2012 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill frames
If you want an acceptable Downhill frame you should know that the average price is 1923$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
SX Trail Frame components
Rear Shock
Specialized SX Trail Frame frame has the Fox DHX RC4 model installed, and has a travel of 180mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
SX Trail Frame comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
