Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Praxis -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9r carbon, threaded BB, full internal cable routing, internally integrated seat clamp, 130mm rear spacing
Suspension Fork
S-Works FACT carbon, full monocoque, size-specific taper
Drivetrain
Rear Derailleur
Shimano Ultegra 6800, 11-speed
Front Derailleur
Shimano Ultegra 6800, 11-speed, braze-on
Shift Levers
Shimano Ultegra 6800, 11-speed
Cassette
Shimano 105 5800, 11-speed, 11-28t
Crank
Praxis Zayante, Praxis 7075 alloy, 50/34T
Bottom Bracket
Praxis BB
Chain
KMC X11, 11-speed
Wheels
Rims
Axis Elite, QR
Tires
Specialized Espoir Elite, 700x23mm, 60TPI
Brakes
Brakes
Shimano Ultegra
Cockpit
Stem
3D-forged alloy, 7-degree rise
Handlebar
Specialized Shallow Drop, alloy, 125mm drop, 70mm short-reach
Seat
Saddle
Body Geometry Toupé Sport, steel rails, 143mm
Seatpost
Specialized Comp carbon, single bolt
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.37 mm | 1.41 mm | 1.44 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272.5 mm | 272.5 mm | 274 mm | 274 mm |
| Front Center | 575 mm | 576 mm | 582 mm | 591 mm | 607 mm | 614 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 63 mm | 58 mm | 58 mm | 55 mm | 55 mm | 52 mm |
| Stack | 497 mm | 518 mm | 535 mm | 556 mm | 583 mm | 604 mm |
| Reach | 378 mm | 378 mm | 379 mm | 387 mm | 394 mm | 400 mm |
| Top Tube Length | 509 mm | 529 mm | 540 mm | 557 mm | 575 mm | 593 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 72.25 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 190 mm | 210 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 399 mm | 402 mm |
| Wheelbase | 962 mm | 962 mm | 969 mm | 979 mm | 996 mm | 1006 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 69 mm | 69 mm | 68 mm | 68 mm |
| Standover Height | 722 mm | 747 mm | 767 mm | 787 mm | 818 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview

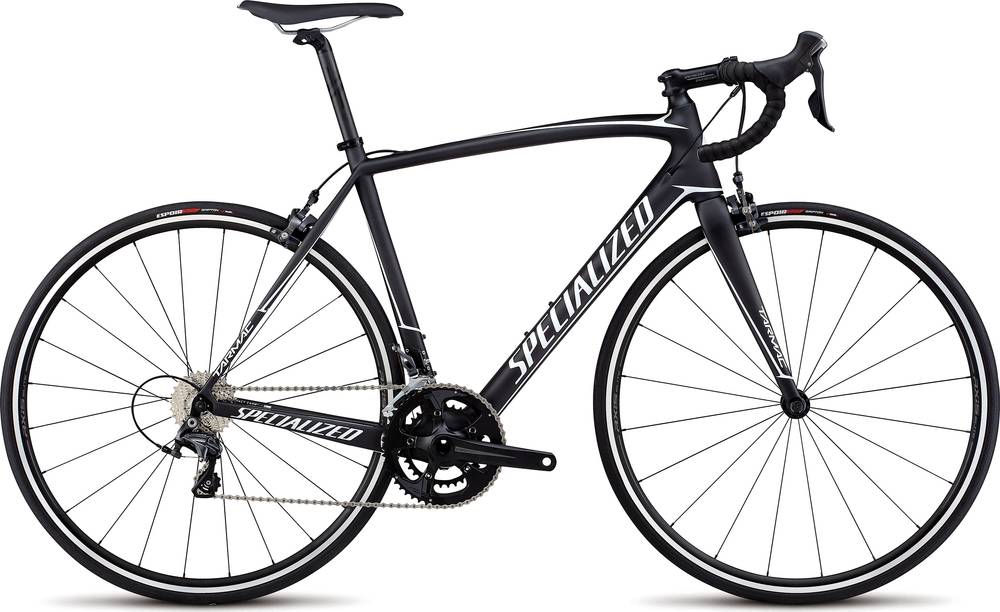

Tarmac SL4 Elite is a Specialized Tarmac model. Specialized released 279 bikes variations of this model so far. You can easily view all of the Specialized Tarmac bikes models from 2017, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Tarmac SL4 Elite components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Tarmac SL4 Elite are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Tarmac SL4 Elite has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Specialized Tarmac SL4 Elite bike has 6 sizes, in the range of 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
