Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized Transition Elite, smooth weld A1 alloy aero tubing
Suspension Fork
Transition full monocoque fork, 1 1/8"" steerer
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano Bar Con shifters
Cassette
Shimano 105, 10-speed, 12-27t
Crank
Shimano FCR-550
Bottom Bracket
With Crankset
Chain
KMC DX10 SC
Pedals
Silver cage/black body, w/ black toe clips and strap
Wheels
Front Hub
Forged alloy, sealed, 28h for J bend round spokes
Rear Hub
Forged alloy, sealed, cassette, QR, 32h
Rims
Alex Race 32, aluminum, sleeve joint, CNC machined sidewalls
Spokes
Stainless 14g
Tires
Specialized Mondo Pro II 700x21c, aramid bead, 120TPI, w/ Flak Jacket protection
Brakes
Brakes
Tektro cold-forged, dual pivot brake w/ cartridge pads
Brake Levers
Aero lever
Cockpit
Stem
Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
Handlebar
Profile T2+ Aerobar
Headset
Cage bearings integrated HS. w/ 20mm of spacers w/ top cap
Seat
Saddle
Body Geometry Rival road, w/ Cr-Mo rails
Seatpost
Carbon wrapped, two-bolt clamp, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.32 mm | 1.3 mm | 1.33 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 576 mm | 592 mm | 602 mm | 629 mm | 660 mm |
| Rake | 49 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 75 mm | 66 mm | 63 mm | 62 mm | 62 mm | 62 mm |
| Stack | 486 mm | 505 mm | 518 mm | 540 mm | 562 mm | 585 mm |
| Reach | 367 mm | 382 mm | 397 mm | 407 mm | 427 mm | 452 mm |
| Top Tube Length | 481 mm | 506 mm | 525 mm | 541 mm | 566 mm | 595 mm |
| Seat Tube Angle | 77 ° | 76.25 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 470 mm | 480 mm | 490 mm | 500 mm | 520 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 135 mm | 160 mm | 185 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 407 mm | 407 mm | 412 mm |
| Wheelbase | 967 mm | 967 mm | 983 mm | 998 mm | 1026 mm | 1063 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm |
| Standover Height | 714 mm | 727 mm | 740 mm | 756 mm | 778 mm | 805 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview

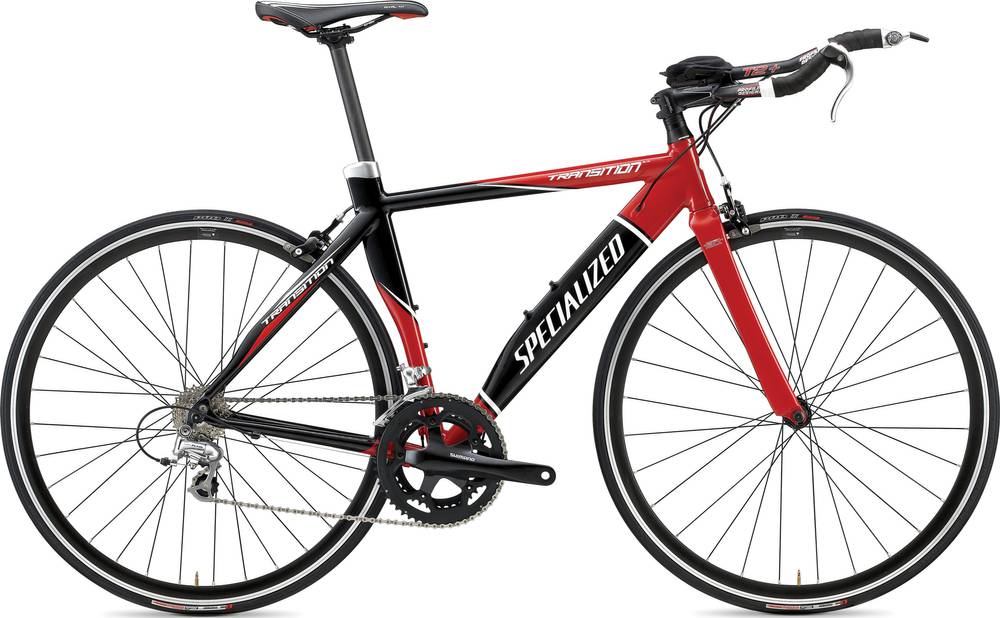

Transition A1 Elite is a Specialized Transition model. 21 bikes variations carry this model name so far. Take a sneak peek at all Specialized Transition bikes models from 2010, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Triathlon bikes average price
According to our math, the average price for a trustworthy Triathlon bike is 4177$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Transition A1 Elite components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Specialized Transition A1 Elite 2010, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized Transition A1 Elite has Rim brakes installed. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
Specialized Transition A1 Elite bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, you can easily find one that suits you.
