Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex, SRAM -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized A1 Premium Aluminum, smooth weld alloy, aero tubing
Suspension Fork
Specialized FACT carbon fork, 1 1/8"" steerer
Drivetrain
Rear Derailleur
SRAM Apex
Front Derailleur
SRAM Apex
Shift Levers
SRAM TT500 SL
Cassette
Shimano 105, 10-speed, 11-28t
Crank
SRAM S100
Bottom Bracket
With Crankset
Chain
KMC DX10SC
Pedals
Black cage, body & toe clips w/ strap
Wheels
Front Hub
Forged alloy Hub, sealed bearings, 28 hole, for J bend round spokes
Rear Hub
Forged alloy, sealed, cassette, QR, 32h
Rims
Mavic CXP22 w/ eyelets
Spokes
Stainless 14g
Tires
Specialized Turbo Comp, 700x23c, Aramid bead, 120TPI, w/ Double Black Belt protection
Brakes
Brakes
Tektro cold-forged, dual pivot brake w/ cartridge pads
Brake Levers
TRP Aero lever
Cockpit
Stem
Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
Handlebar
Profile T2+ Aerobar
Headset
1 1/8"" sealed Cr-Mo bearings integrated w/ headset, 20mm alloy cone spacer with 20mm of spacers
Seat
Saddle
Body Geometry Riva Road, w/ steel rails
Seatpost
Specialized Elite, carbon wrapped alloy, two-bolt clamp, 27.2mm, Zero setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.32 mm | 1.3 mm | 1.33 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 576 mm | 592 mm | 602 mm | 629 mm | 660 mm |
| Rake | 49 mm | 45 mm | 45 mm | 43 mm | 43 mm | 43 mm |
| Trail | 75 mm | 66 mm | 63 mm | 62 mm | 62 mm | 62 mm |
| Stack | 486 mm | 505 mm | 518 mm | 540 mm | 562 mm | 585 mm |
| Reach | 367 mm | 382 mm | 397 mm | 407 mm | 427 mm | 452 mm |
| Top Tube Length | 481 mm | 506 mm | 525 mm | 541 mm | 566 mm | 595 mm |
| Seat Tube Angle | 77 ° | 76.25 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 470 mm | 480 mm | 490 mm | 500 mm | 520 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 135 mm | 160 mm | 185 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 407 mm | 407 mm | 412 mm |
| Wheelbase | 967 mm | 967 mm | 983 mm | 998 mm | 1026 mm | 1063 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm |
| Standover Height | 714 mm | 727 mm | 740 mm | 756 mm | 778 mm | 805 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model

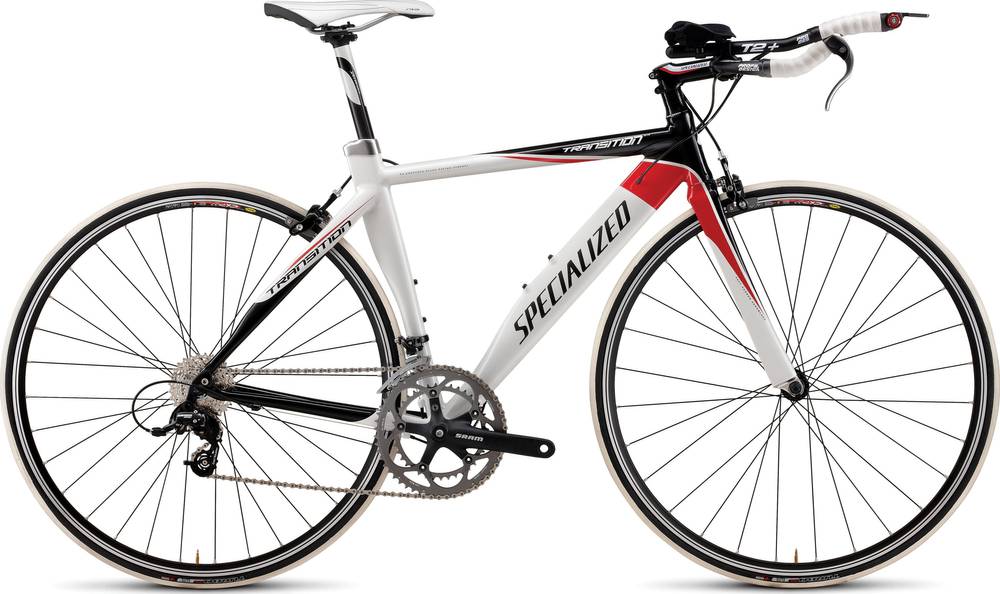

Transition Elite AL belongs to the Specialized Transition model. Specialized released 21 bikes variations of this model so far. Check out the entire range from 2011 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Triathlon bikes
If you want to purchase a solid Triathlon bike, it is important to know that the average cost is 4177$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Transition Elite AL model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Transition Elite AL has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
