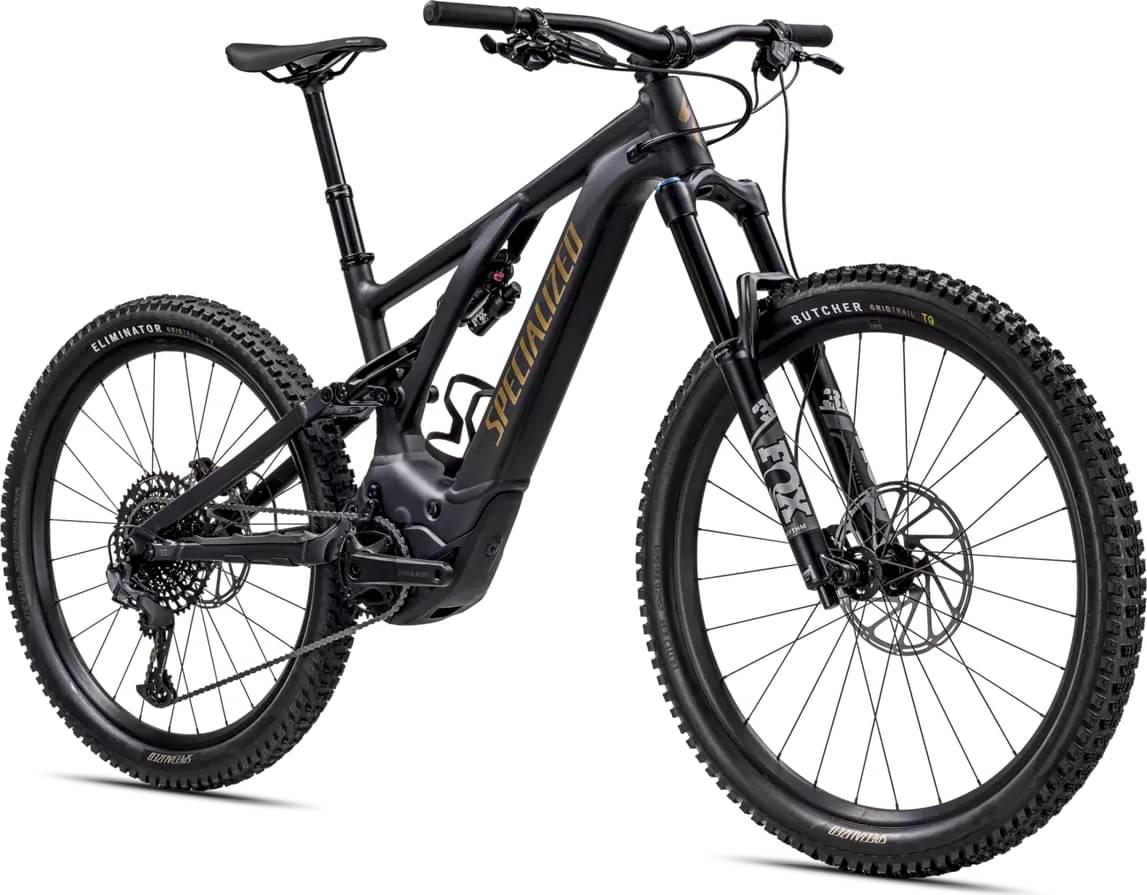

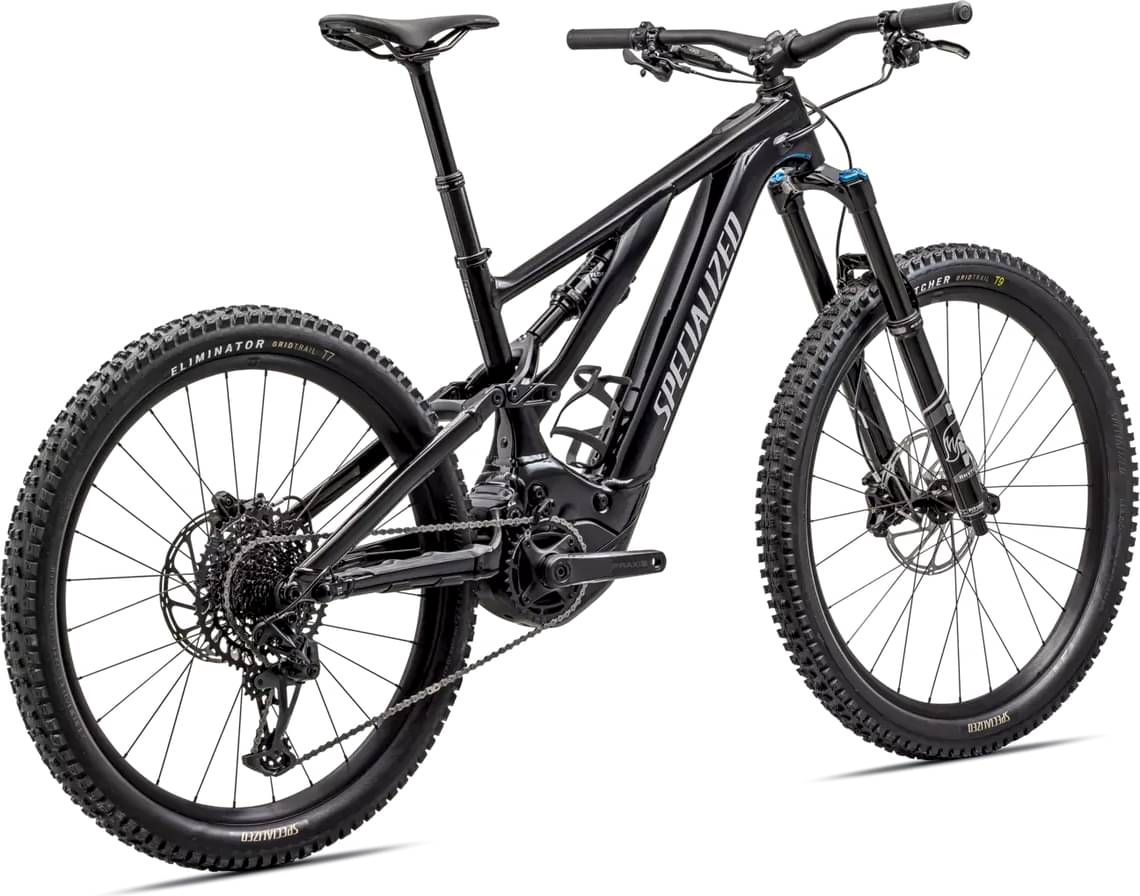

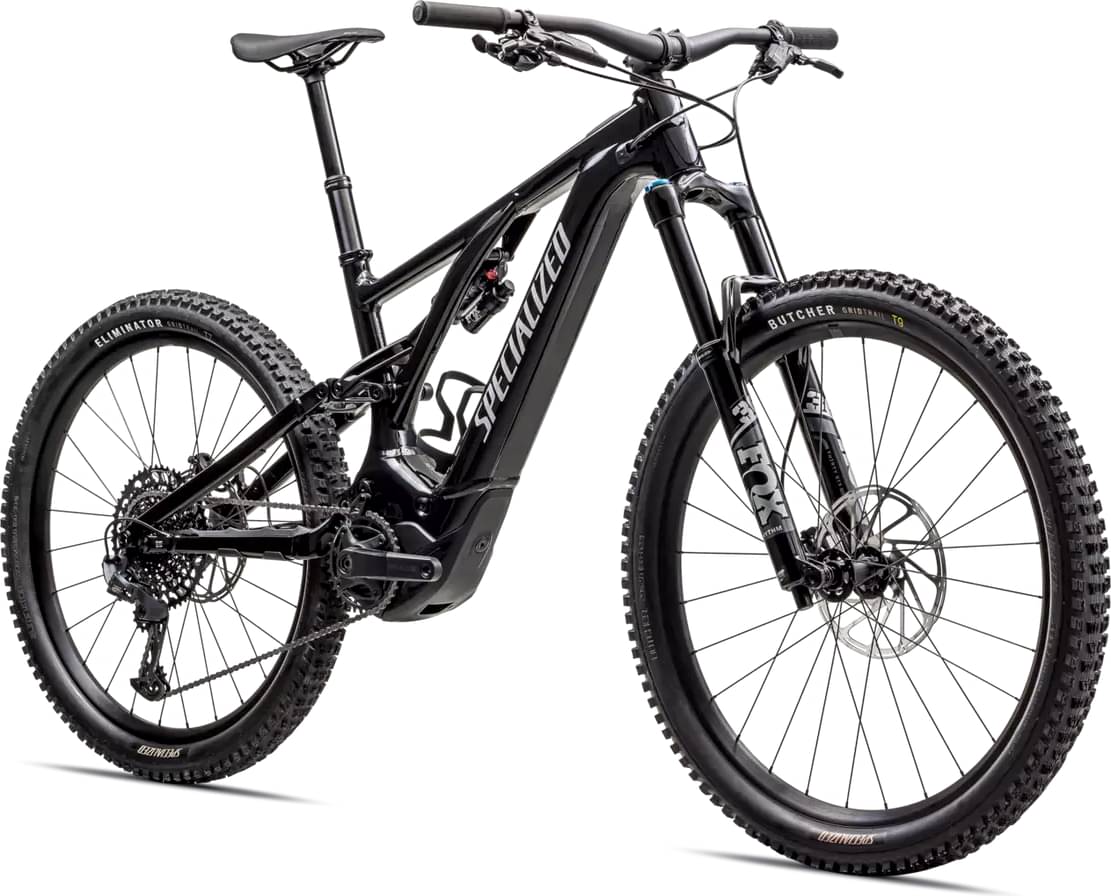

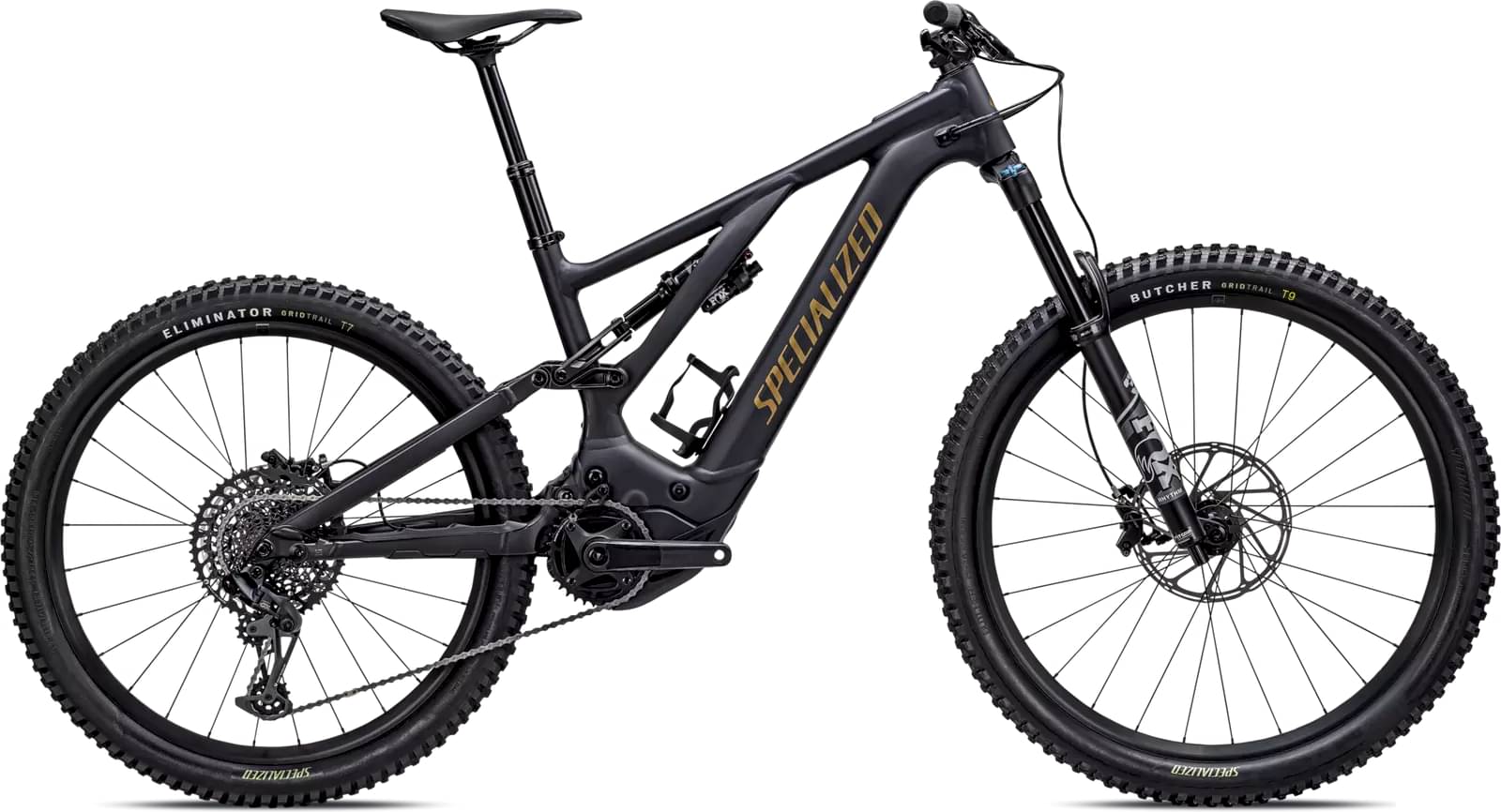

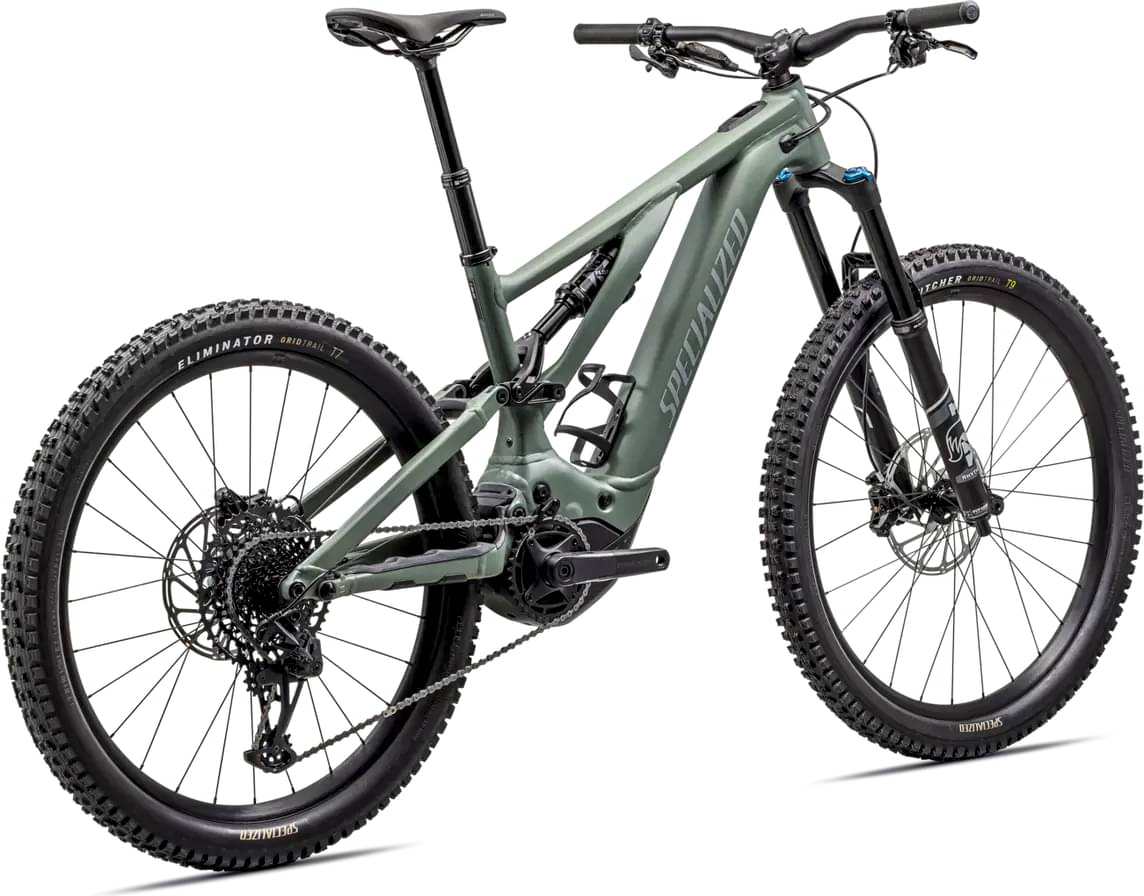

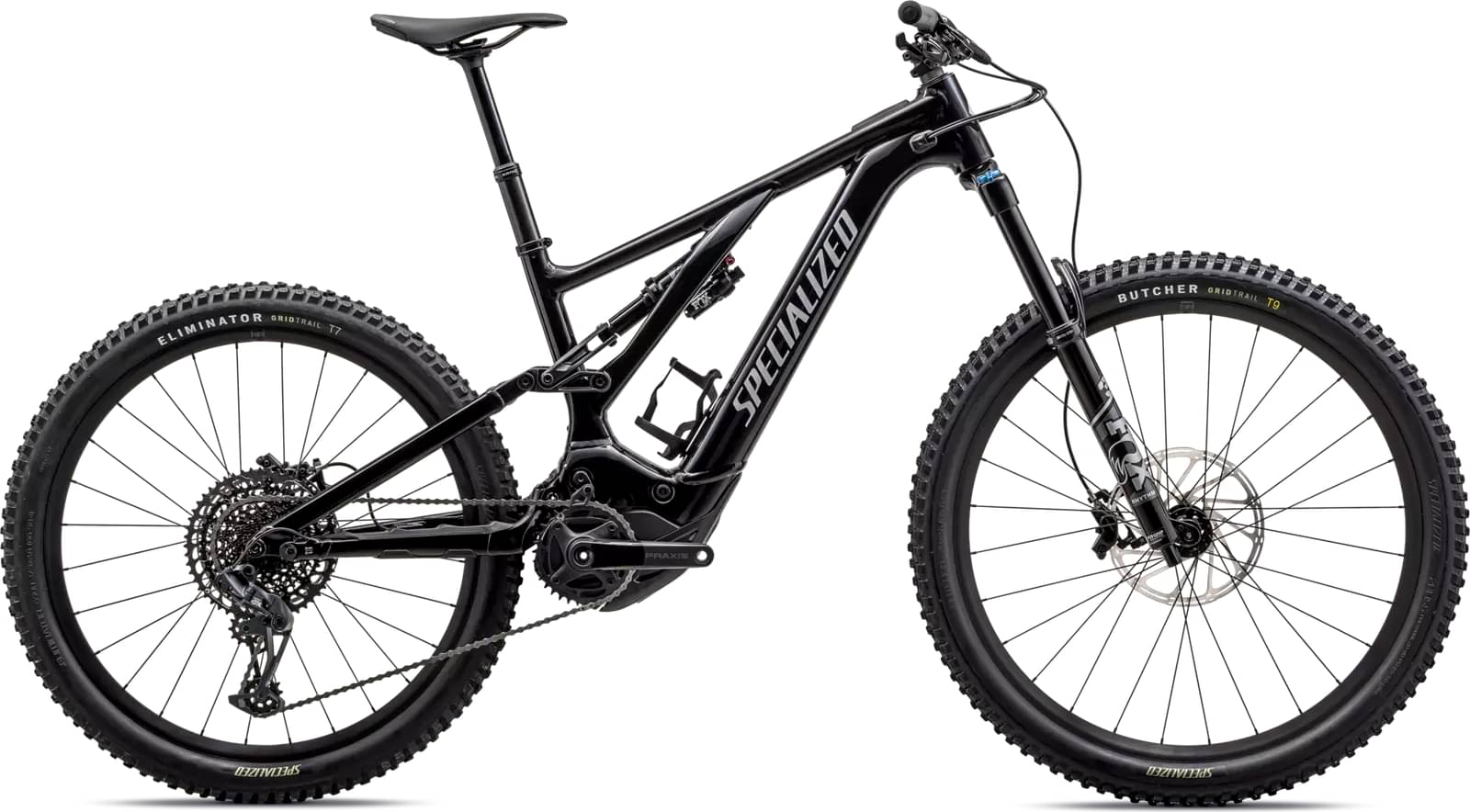

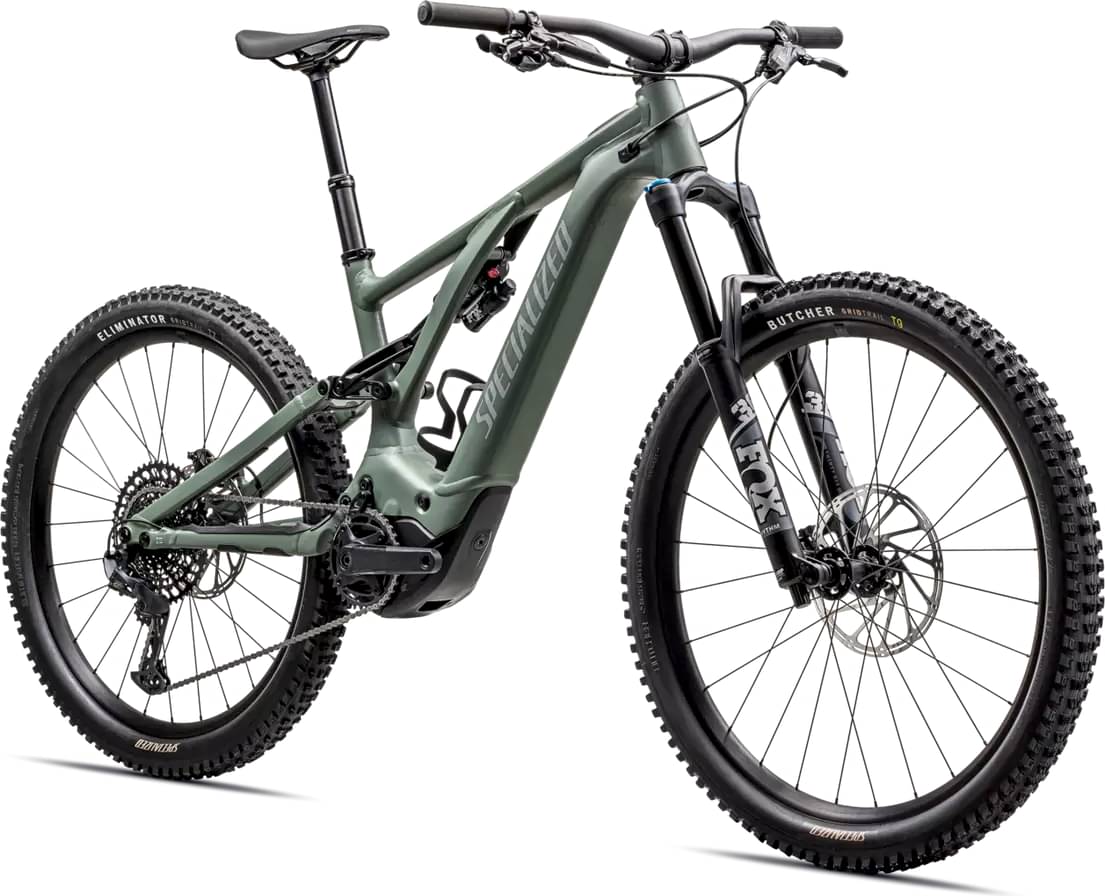

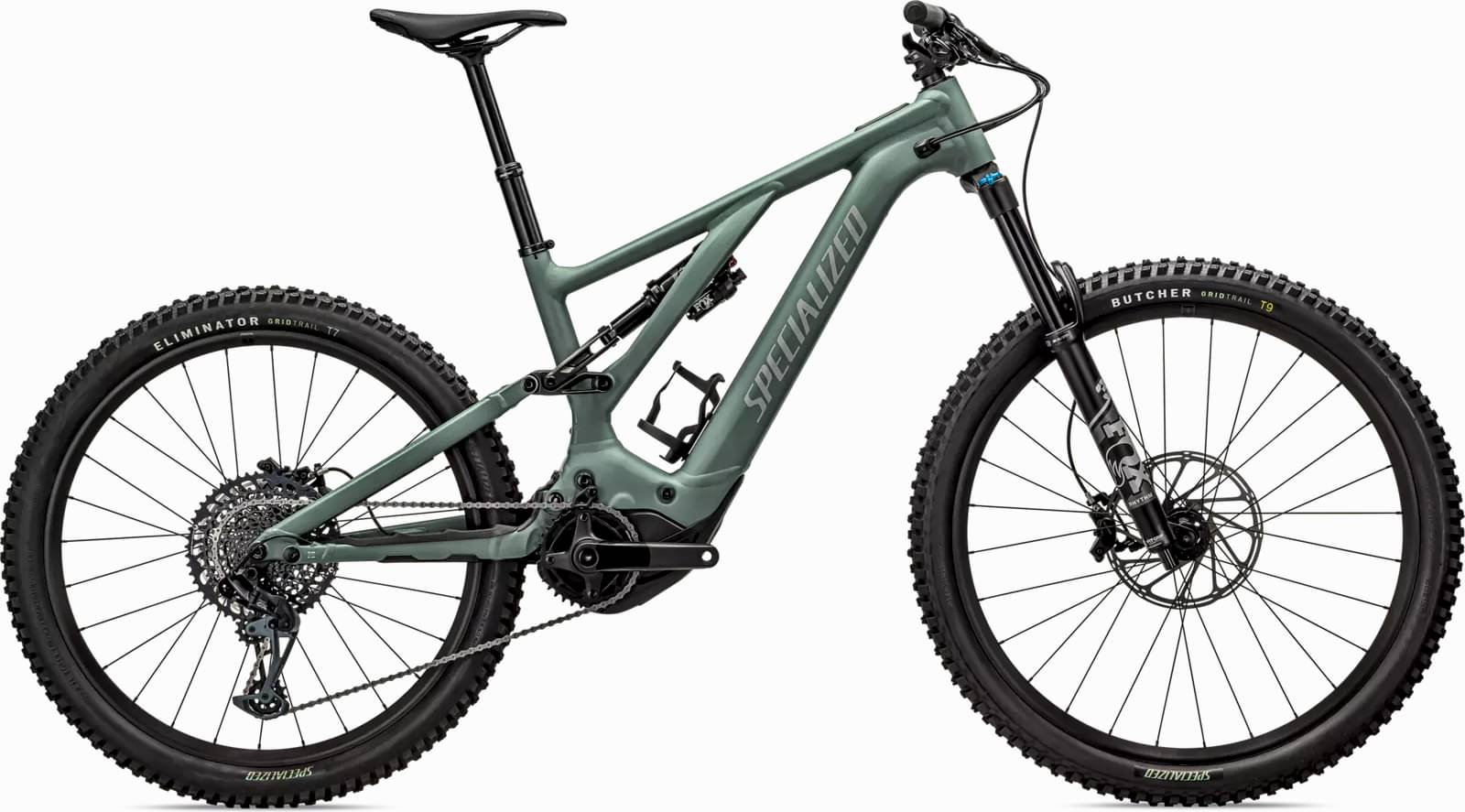

Specialized Turbo Levo Comp Alloy 2023
2023 E-bike
Estimate price |
7,000$
Weight | 23.92 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Rhythm Float 36
-
Groupset GX Eagle, Praxis -
Suspension Full -
Motor Specialized mid-drive -
Battery Specialized M3-700, Integrated battery, 700Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
S1
149cm - 160cm
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
Suspension Fork
Fox Rhythm 36, S1: 150mm travel, S2-S6: 160mm travel

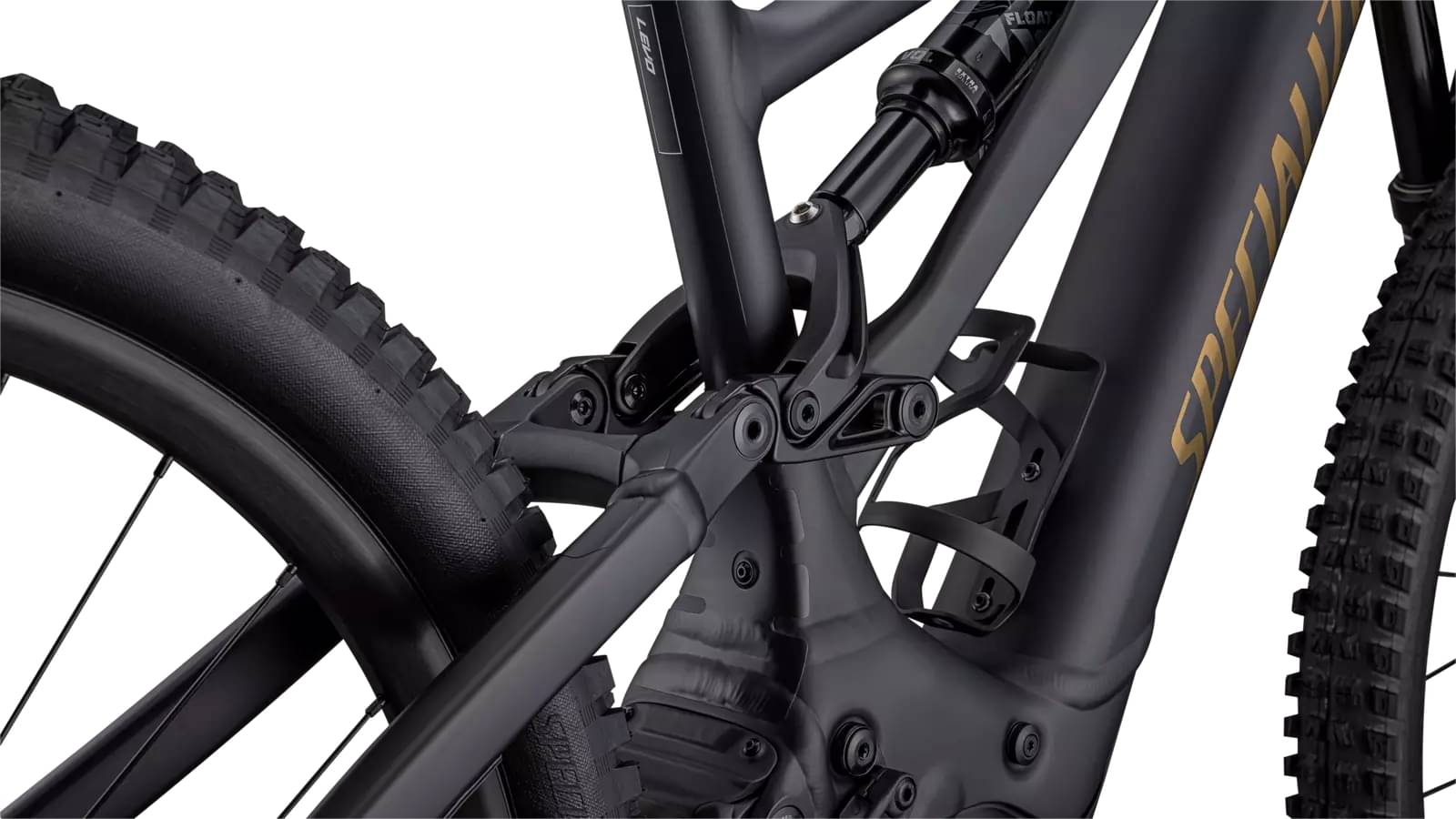

Rear Shock
S1: FOX DPS Performance Series, 3-position lever, rebound adjust, 52.5x210mm, S2-S6: FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX Eagle, trigger, 12-speed
Cassette
SRAM XG-1275, 12-speed, 10-52t
Crank
Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm, SRAM X-Sync Eagle, 104 BCD, 34t, steel
Chain
SRAM NX Eagle, 12-speed
Wheels
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Spokes
DT Swiss Industry
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Brakes
Brakes
Front: SRAM Code R, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm, Rear: SRAM Code R, 4-piston caliper, hydraulic disc, 200mm

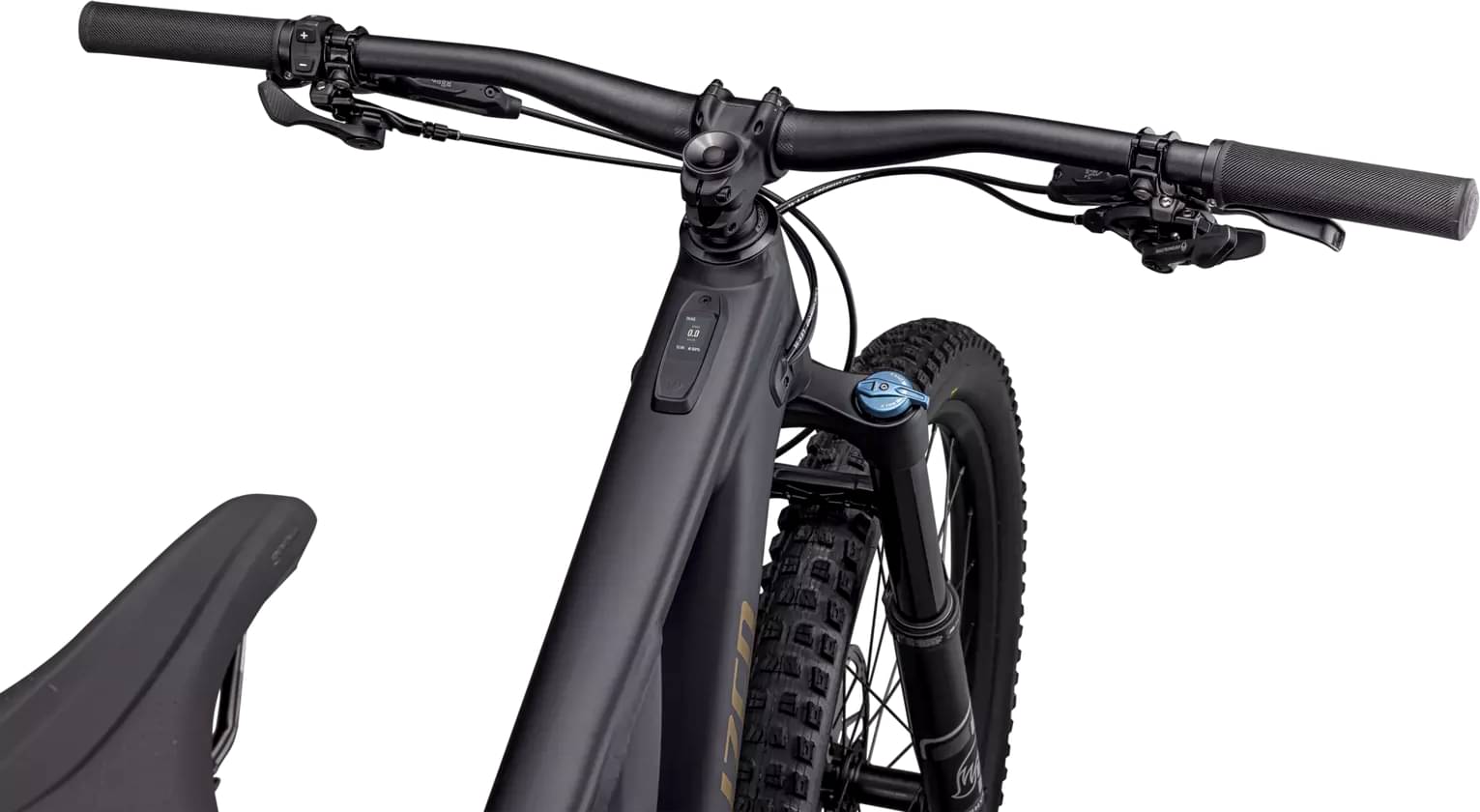

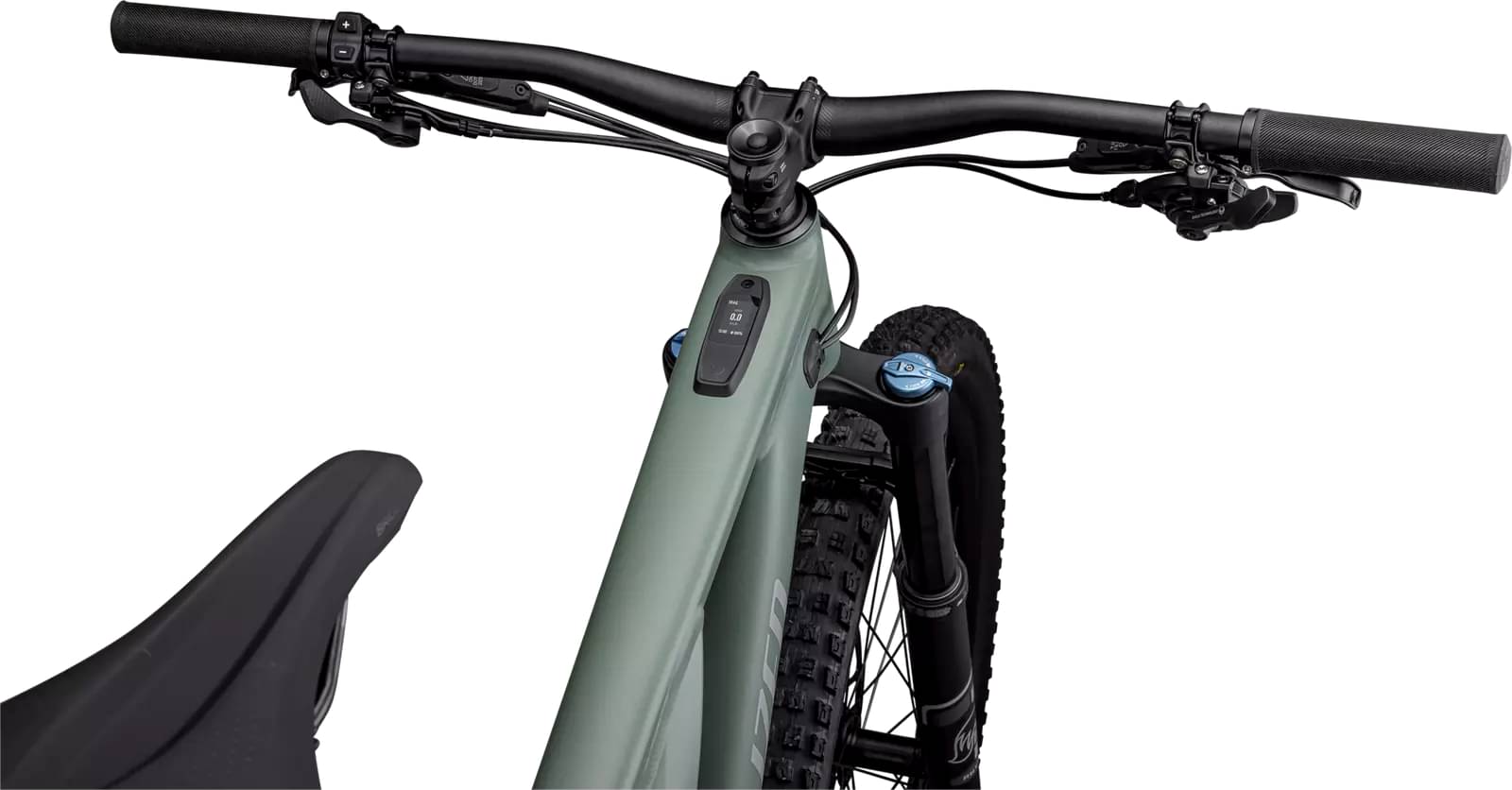

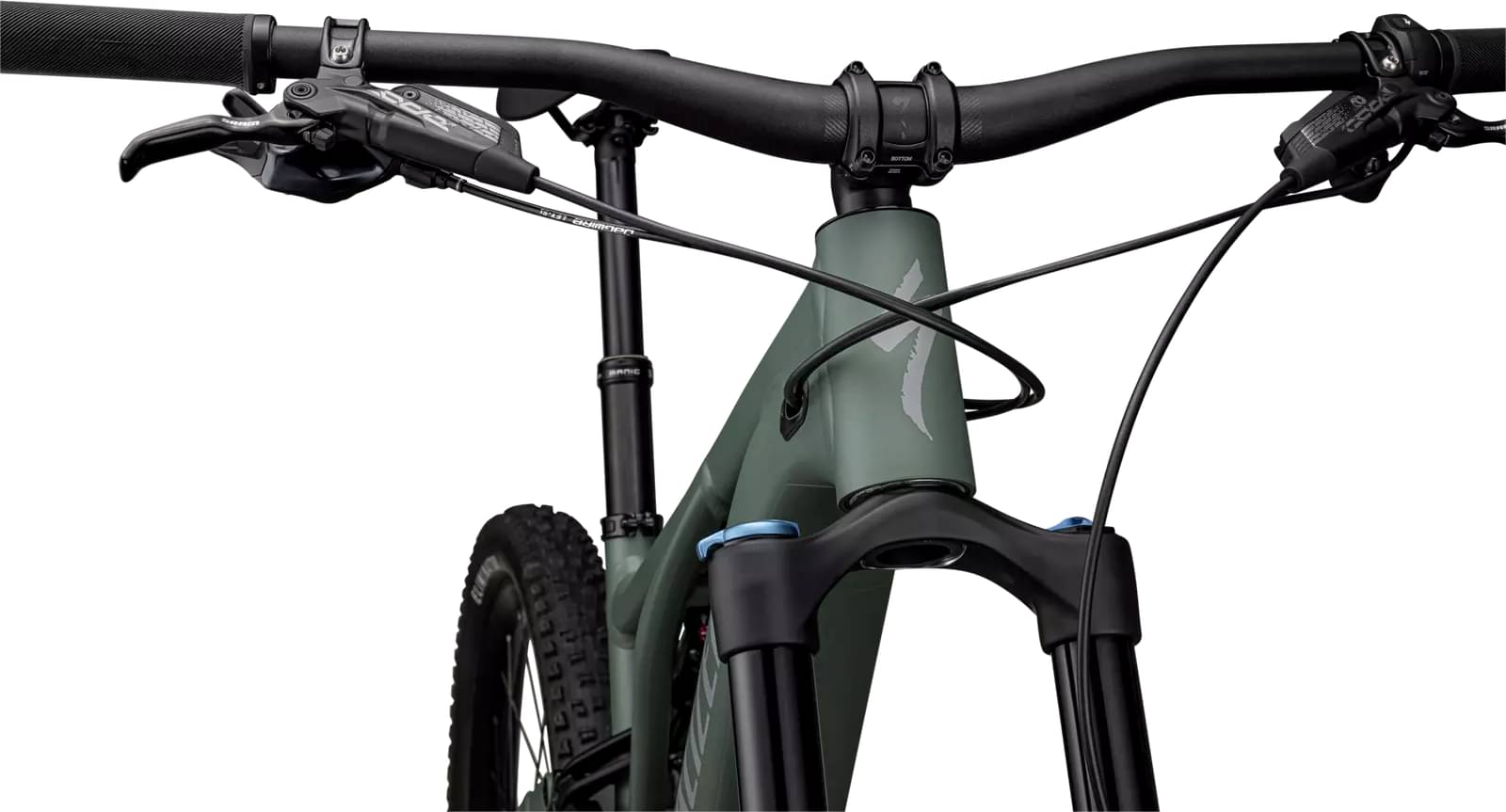

Cockpit
Stem

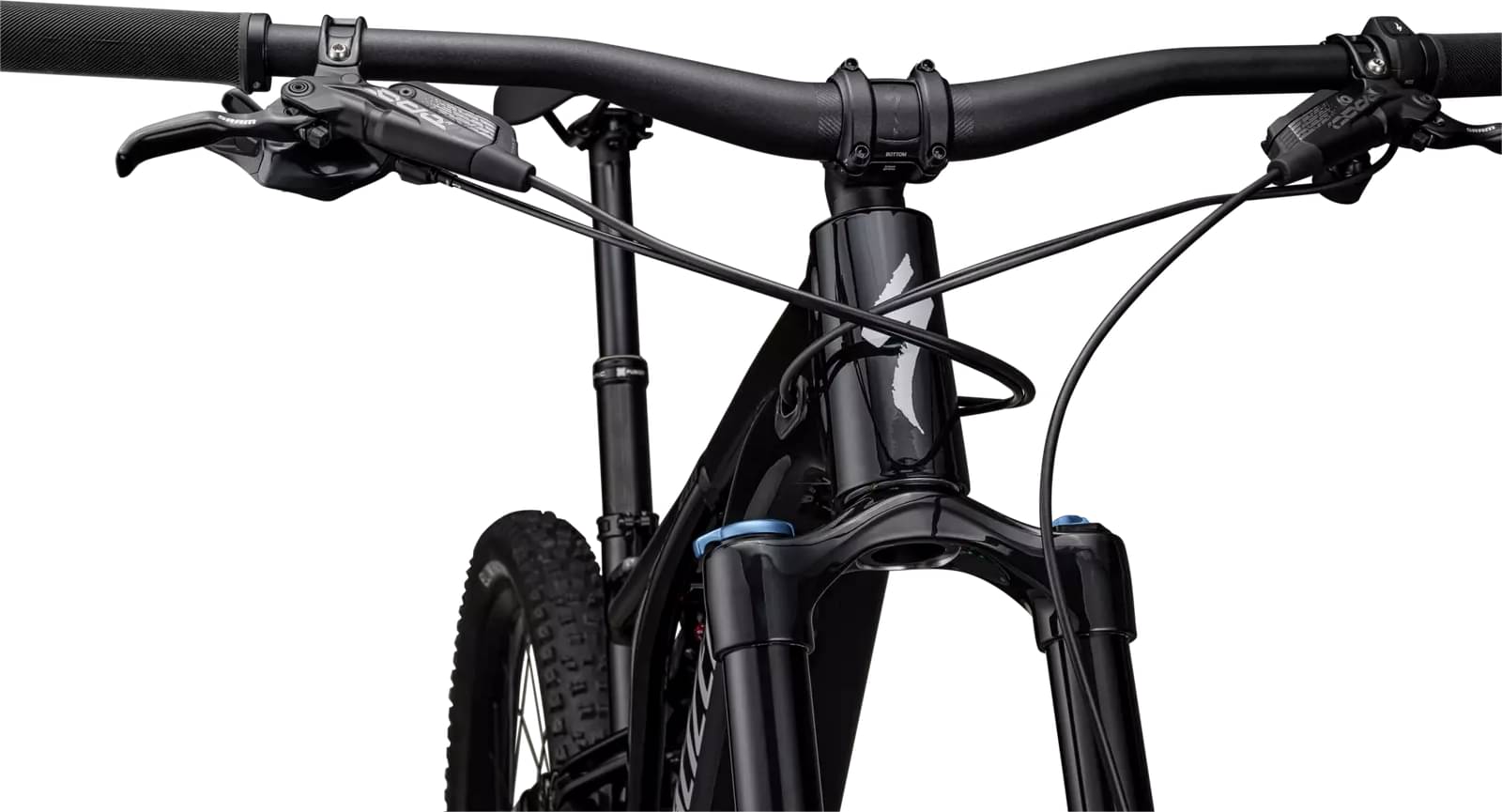

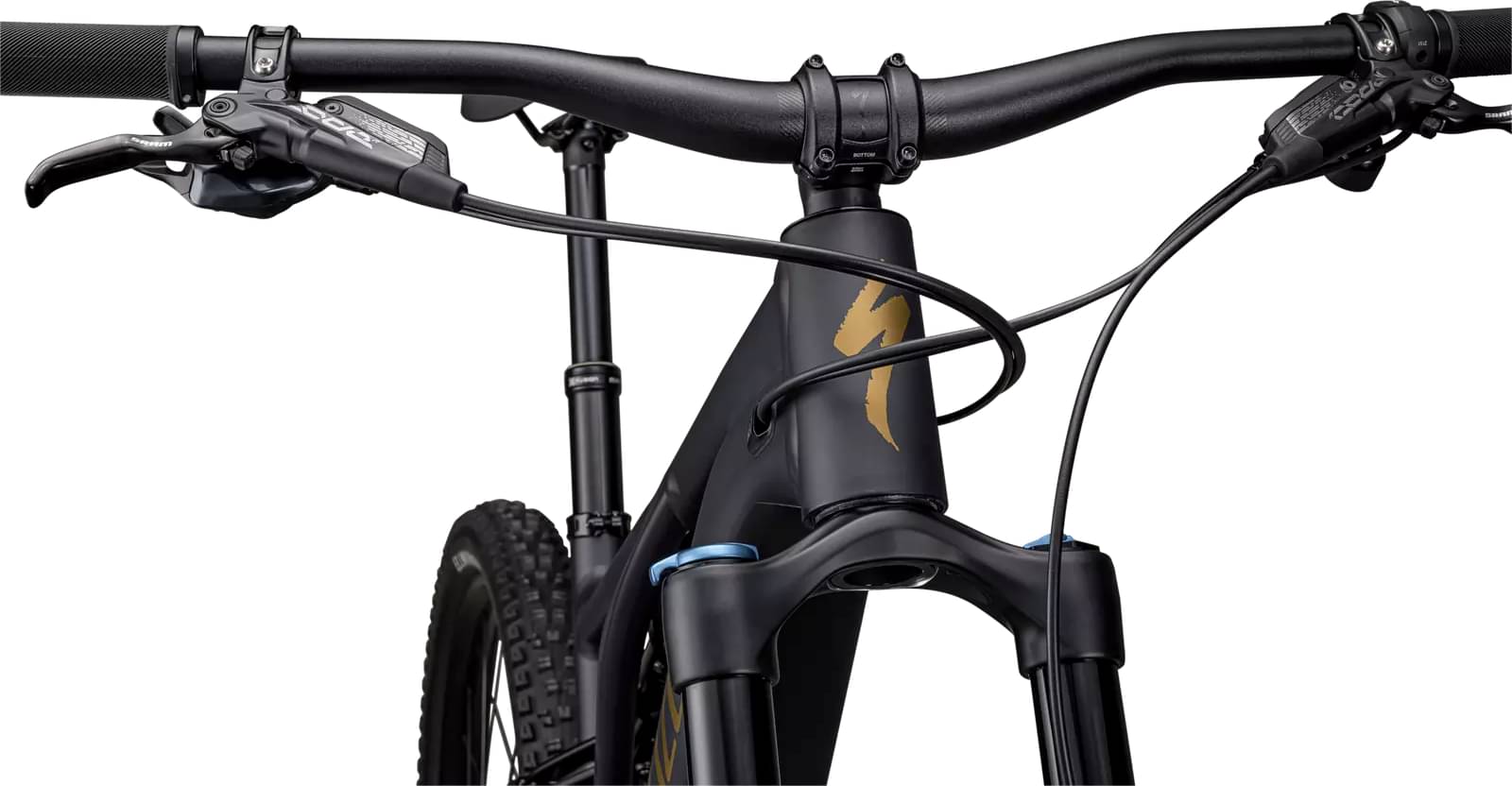

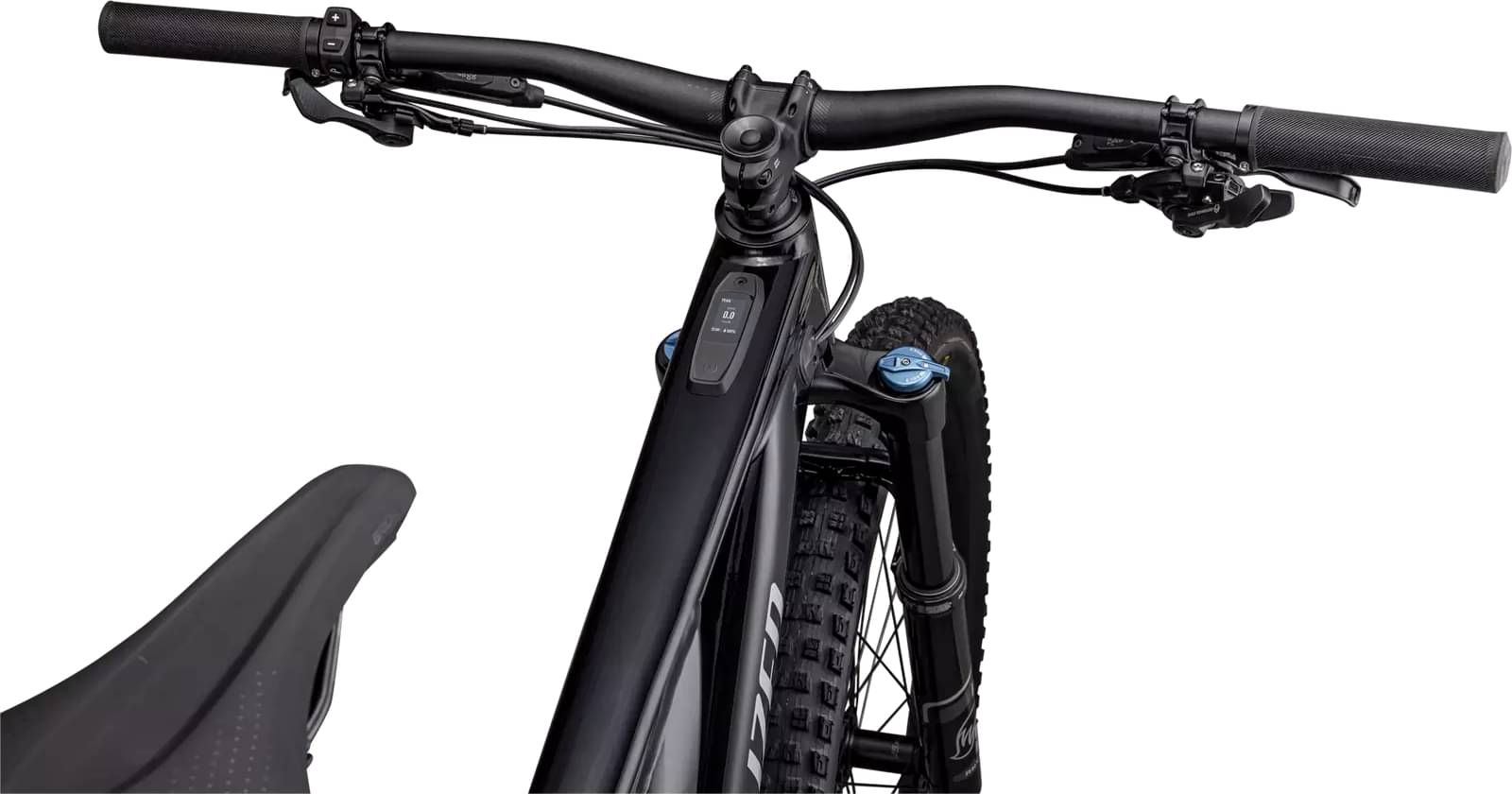

Alloy Trail Stem, 35mm bar bore
Handlebar
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Seat
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Seatpost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm

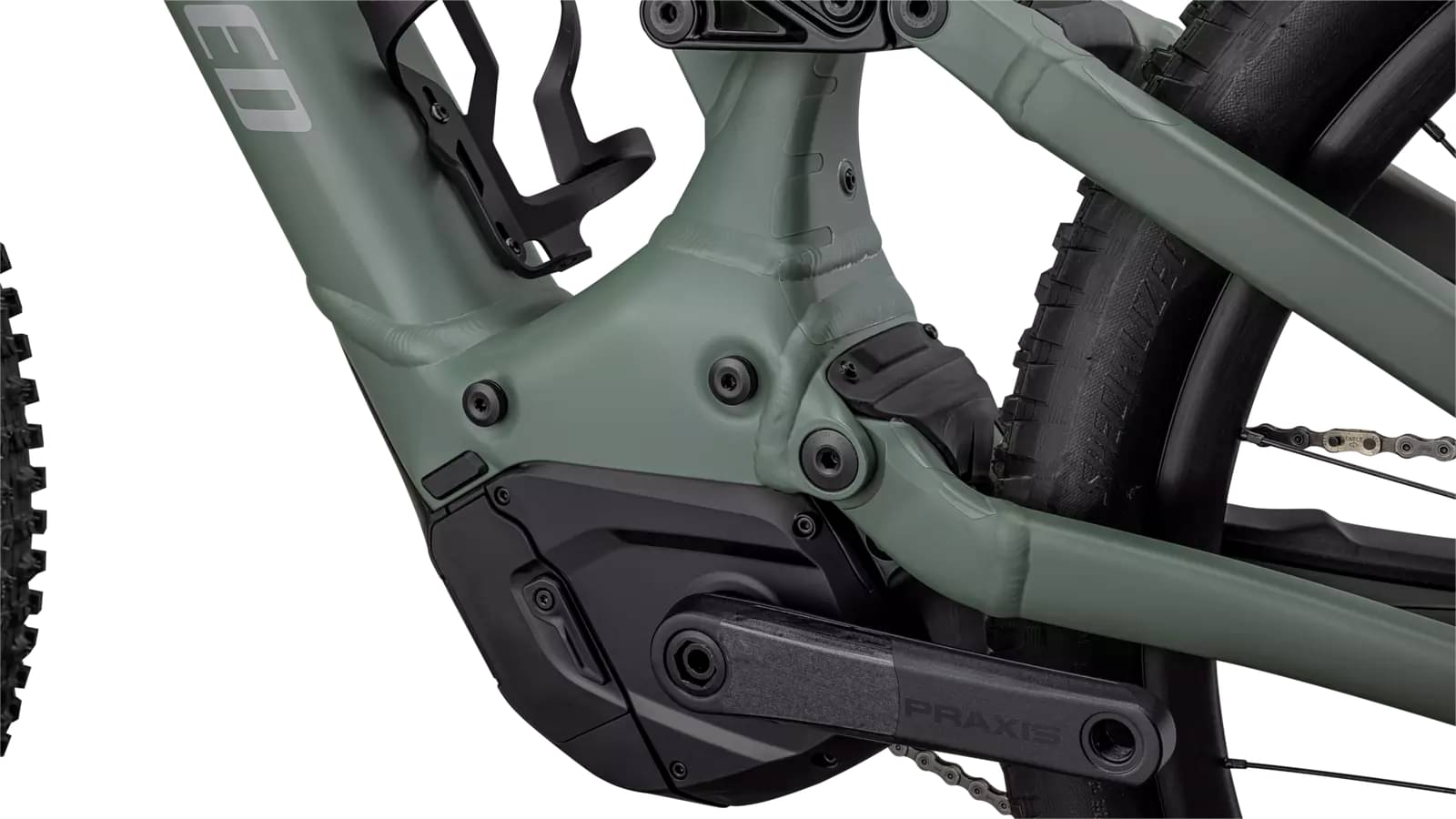

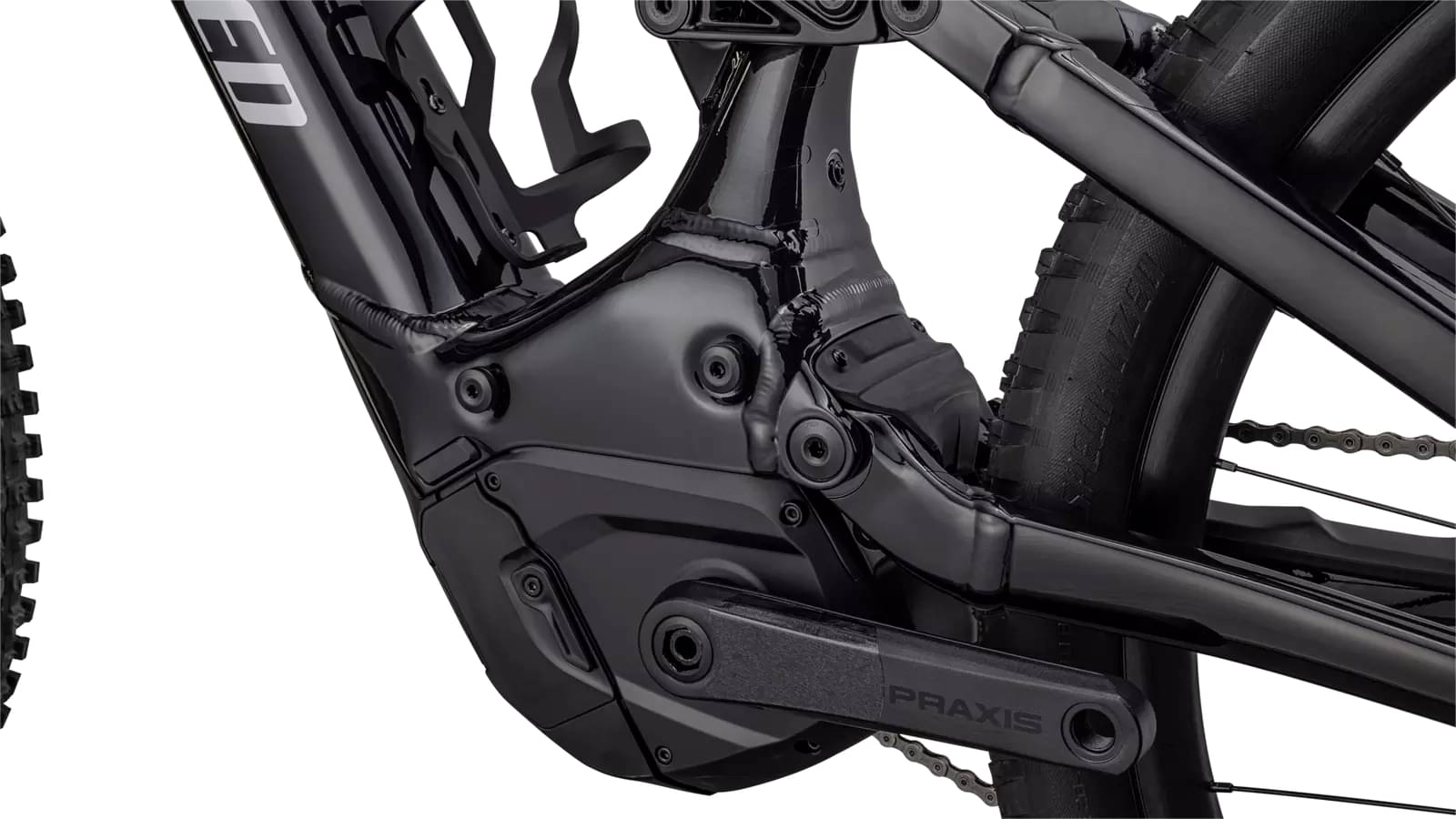

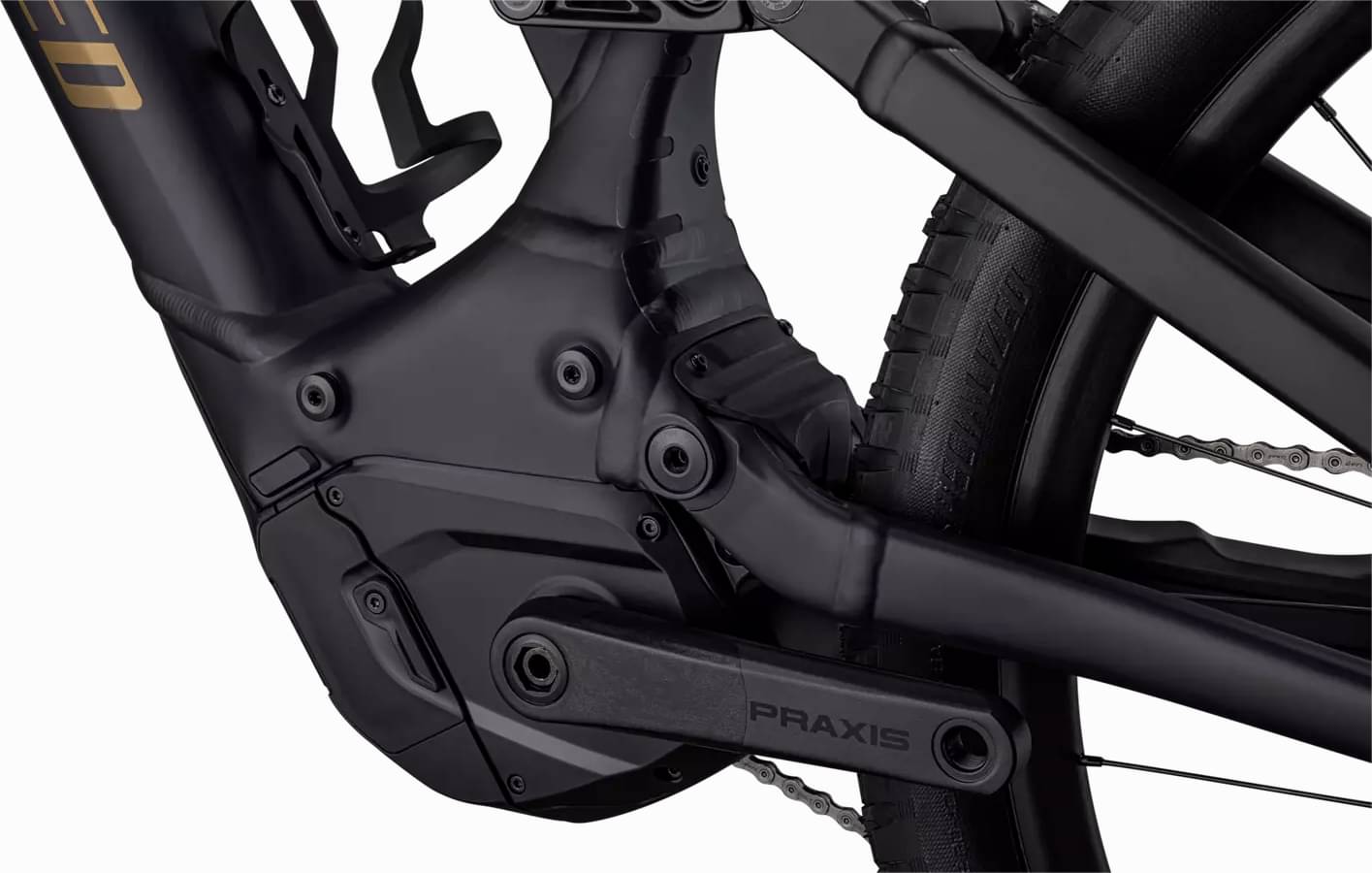

Motor & Battery
Motor
Specialized Turbo Full Power System 2.2 Motor
Battery
Specialized M3-700, Integrated battery, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.39 mm | 1.33 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 352 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 738 mm | 760 mm | 784 mm | 814 mm | 843 mm | 878 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 602 mm | 614 mm | 623 mm | 632 mm | 641 mm | 650 |
| Reach | 409 mm | 429 mm | 449 mm | 474 mm | 499 mm | 529 mm |
| Seat Tube Angle | 78 ° | 77.2 ° | 76.7 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 380 mm | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1176 mm | 1197 mm | 1222 mm | 1252 mm | 1281 mm | 1315 mm |
| Bottom Bracket Drop | 25 mm | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 749 mm | 773 mm | 780 mm | 784 mm | 785 mm | 787 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 160 cm | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
About this model
Turbo Levo Comp Alloy completes the Specialized E Turbo Levo model. Specialized launched 86 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Specialized Turbo Levo Alloy 2023 has a starting price of 5500$. Specialized S-Works Turbo Levo 2023 on the other hand is the most expensive at 15000$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7000$. If we compare this with the average Enduro e-bike cost we notice that the price is 46.29% higher.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.3 kg (51.37 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 23.92 kg (52.73 lbs), the Turbo Levo Comp Alloy model is slightly heavier than average. In other words, this model is 2.66% heavier than the average Enduro e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Turbo Levo Comp Alloy components
Fork
The Turbo Levo Comp Alloy comes factory-installed with the Fox Rhythm Float 36 fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.

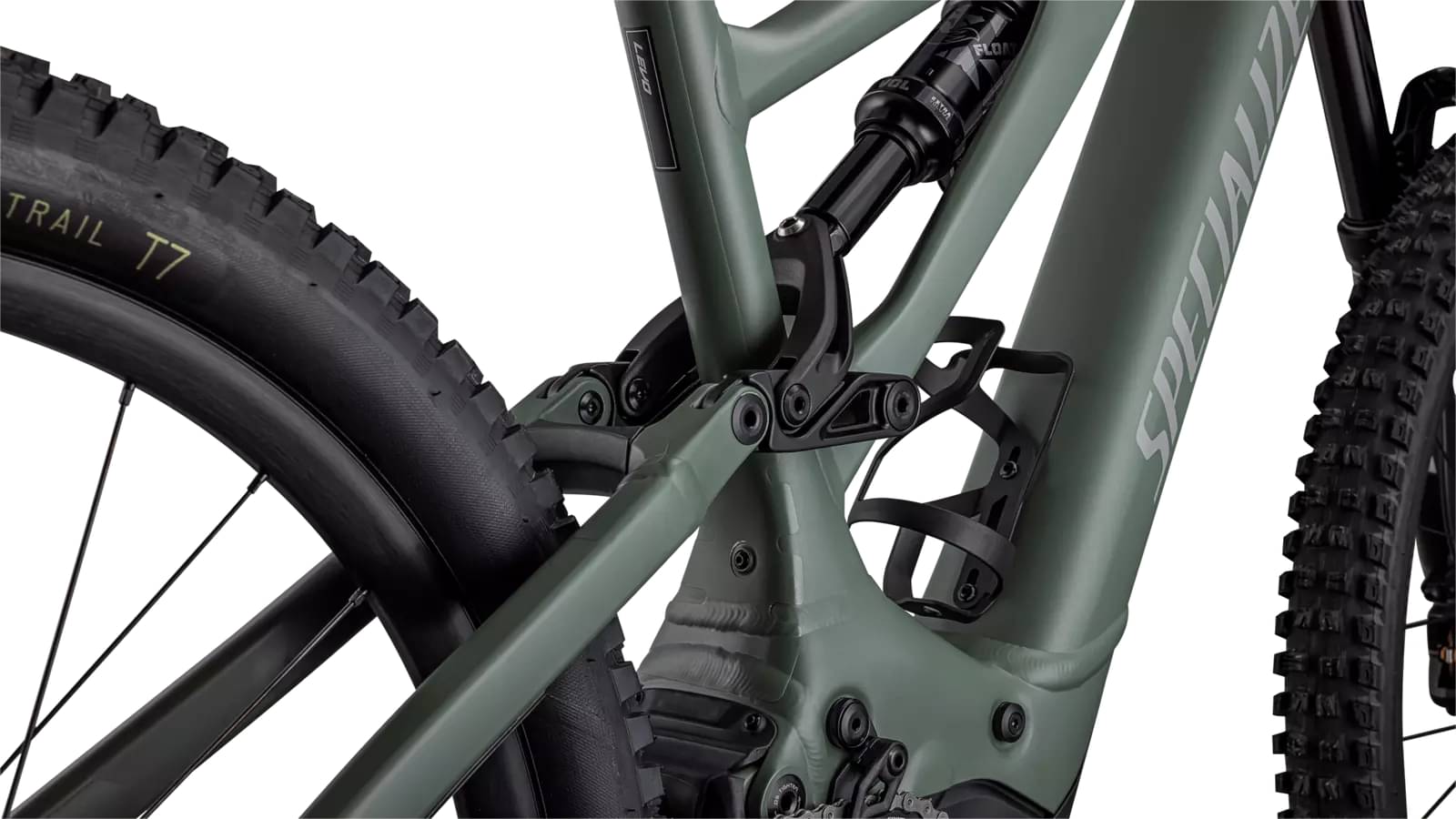

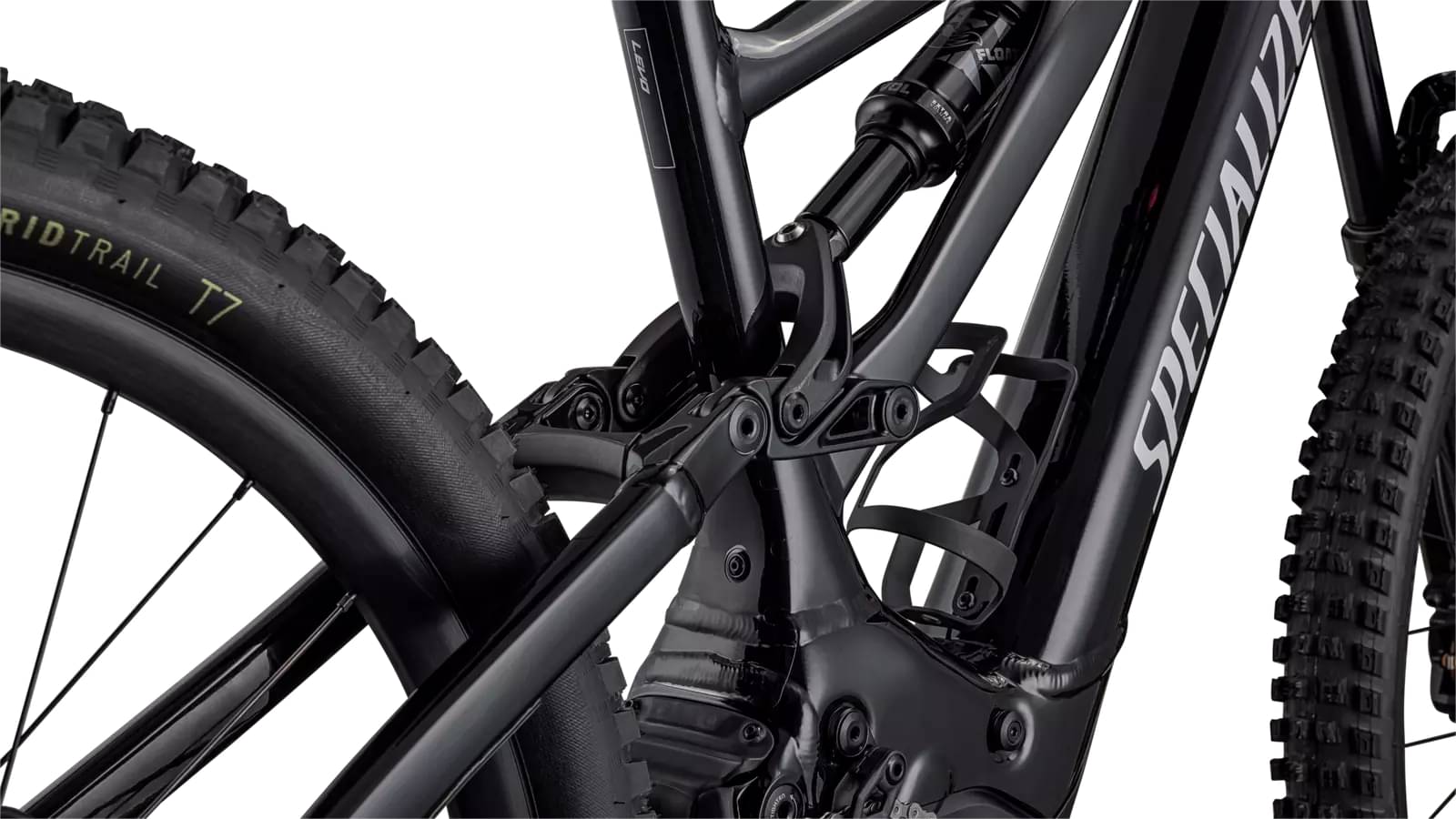

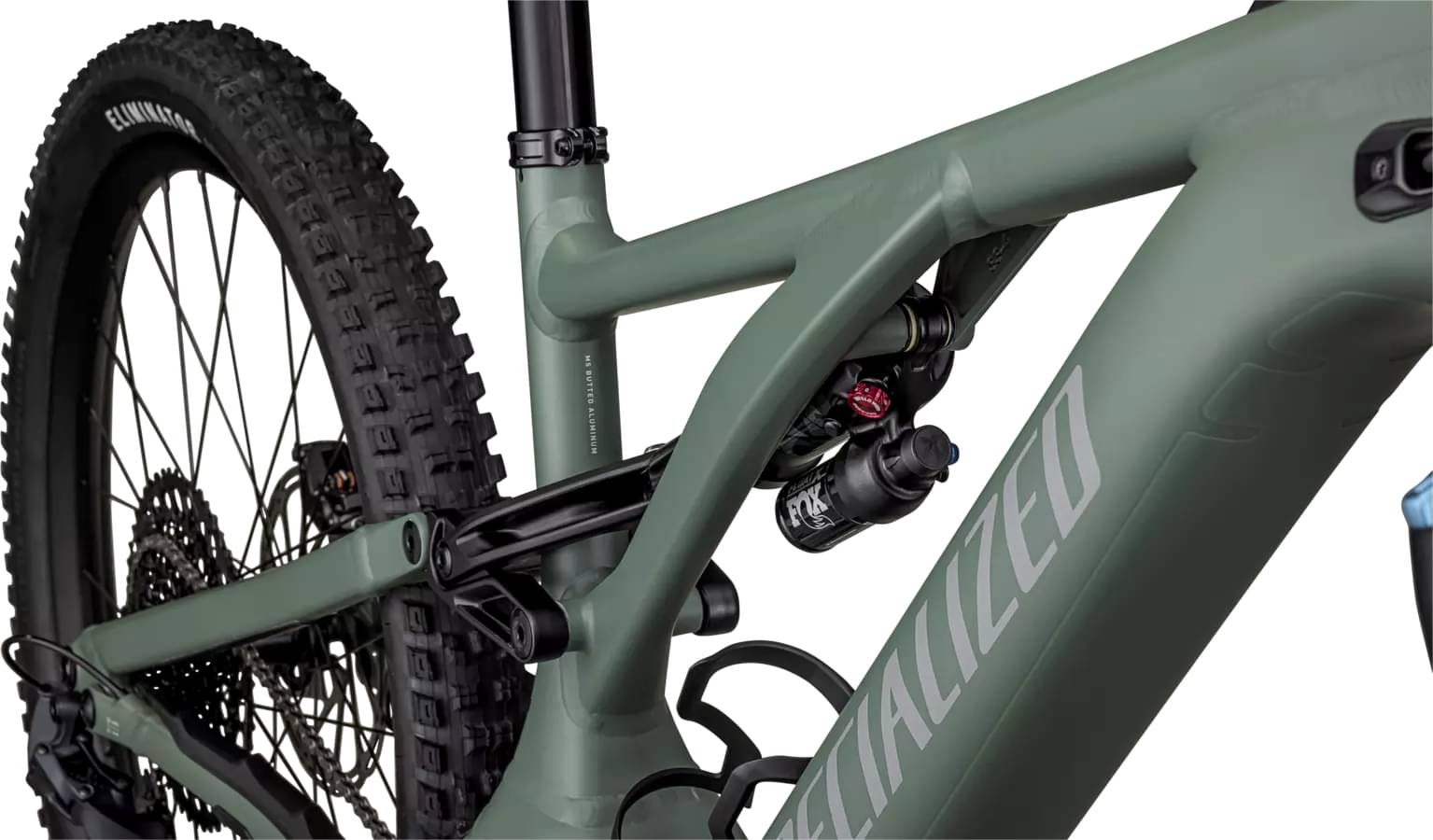

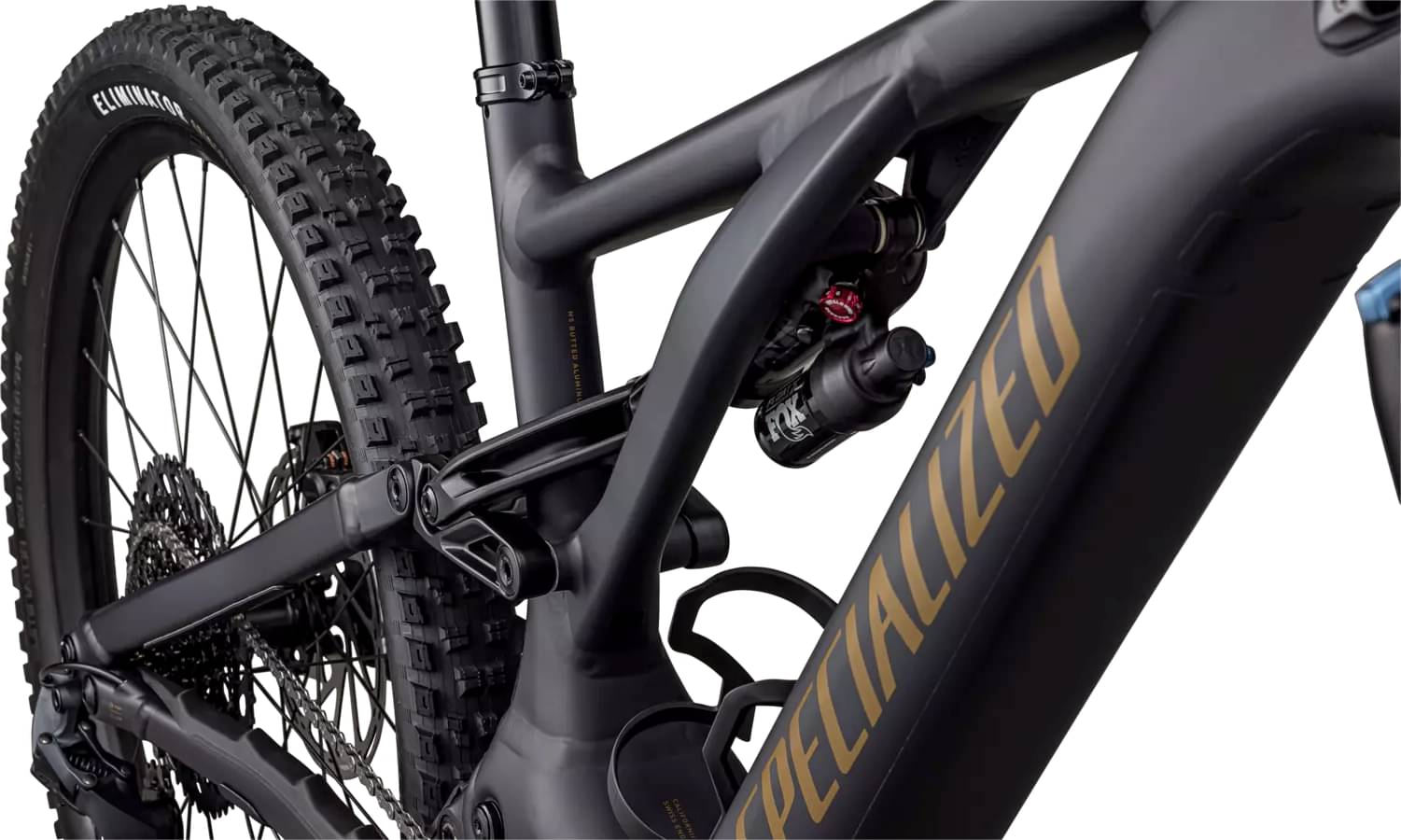

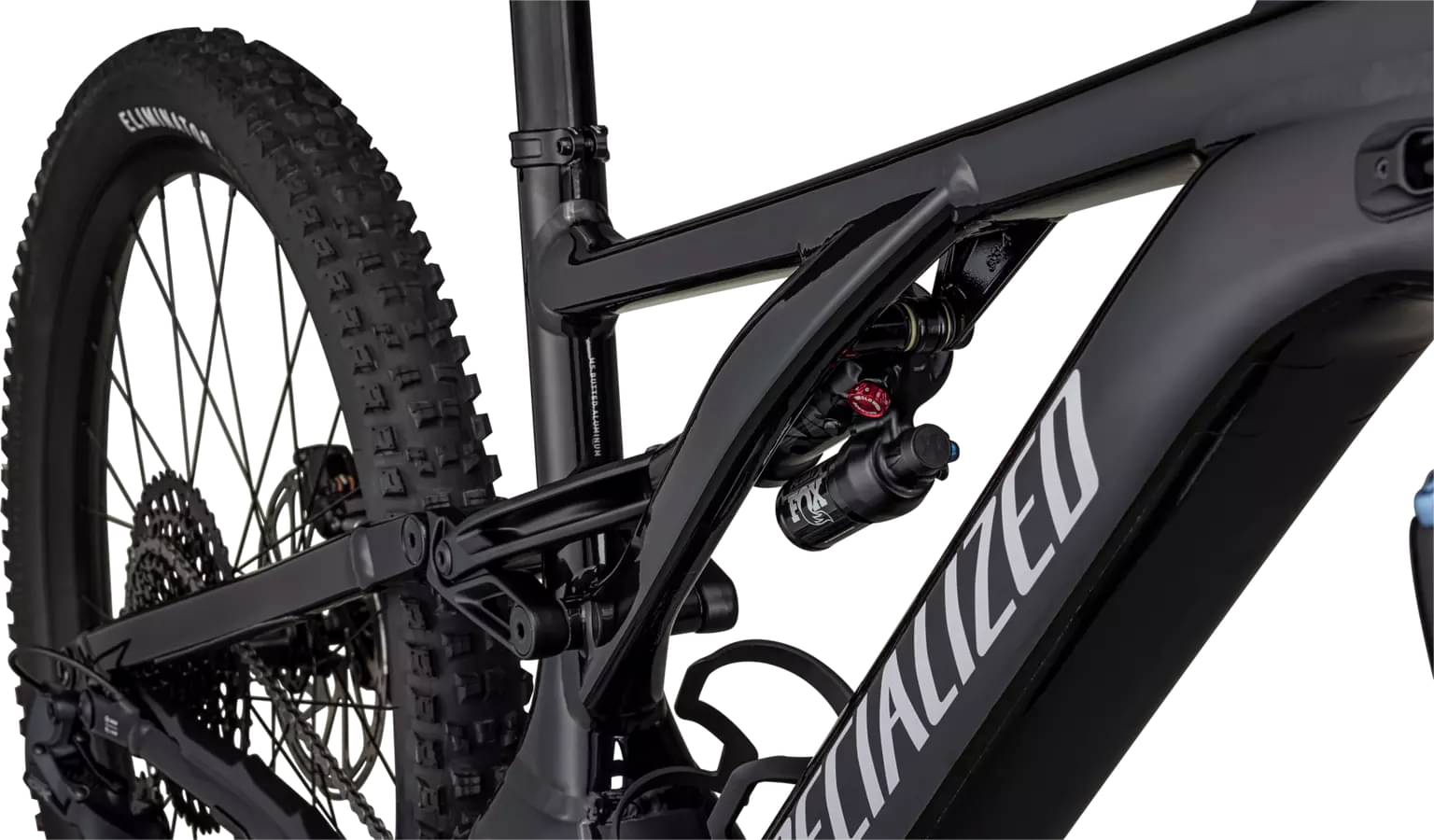

Rear Shock
The shock that’s installed on this e-bike is S1: FOX DPS Performance Series, with a travel distance of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Specialized Turbo Levo Comp Alloy 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Specialized Turbo Levo Comp Alloy is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 6 sizes. They vary from 149 cm – 203 cm (4.89 ft – 6.66 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Specialized Turbo Levo Comp Alloy includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
