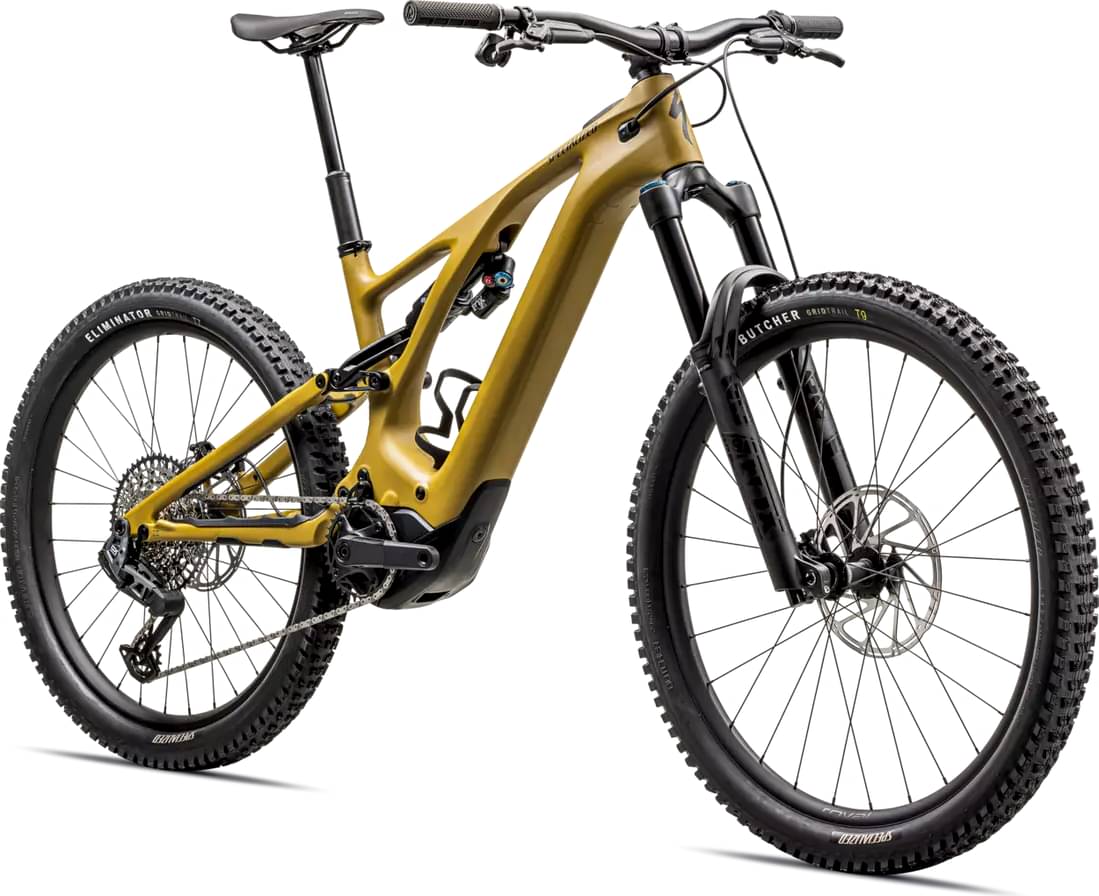

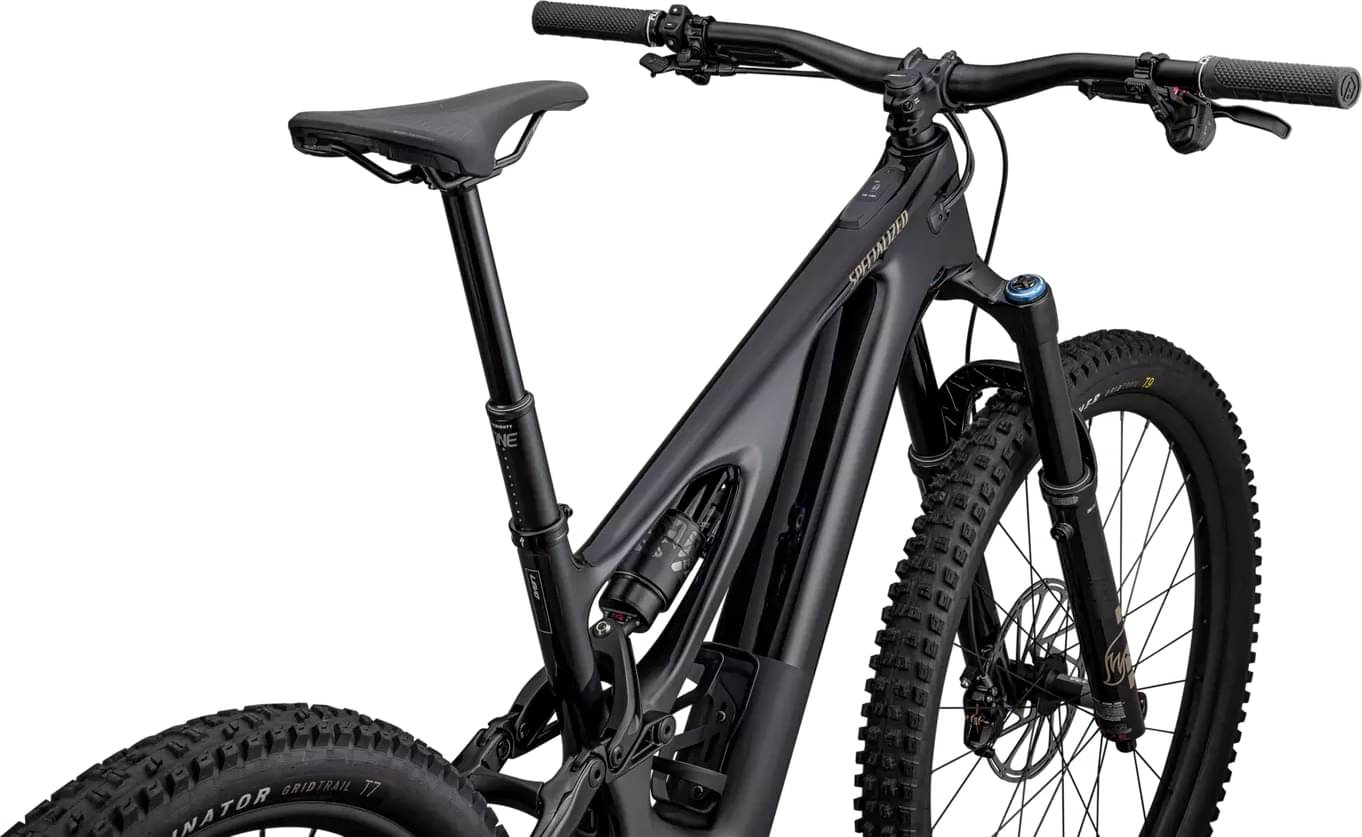

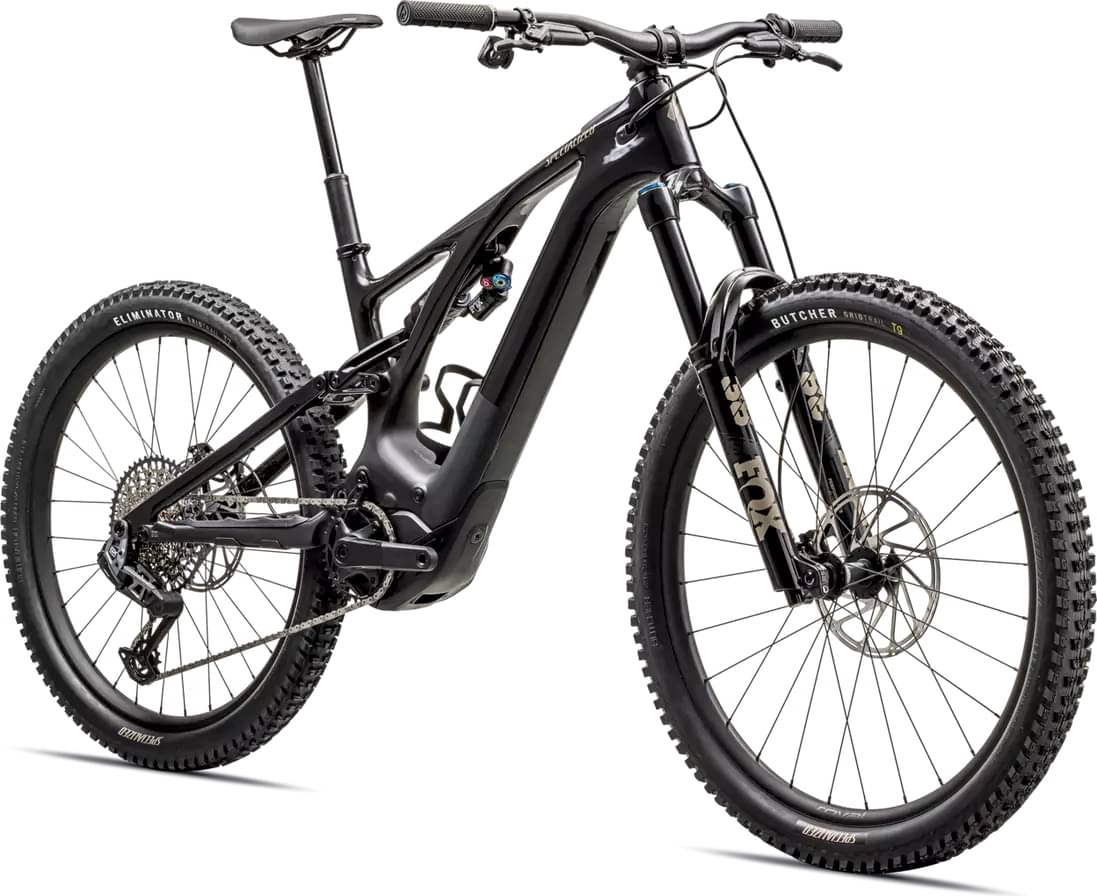

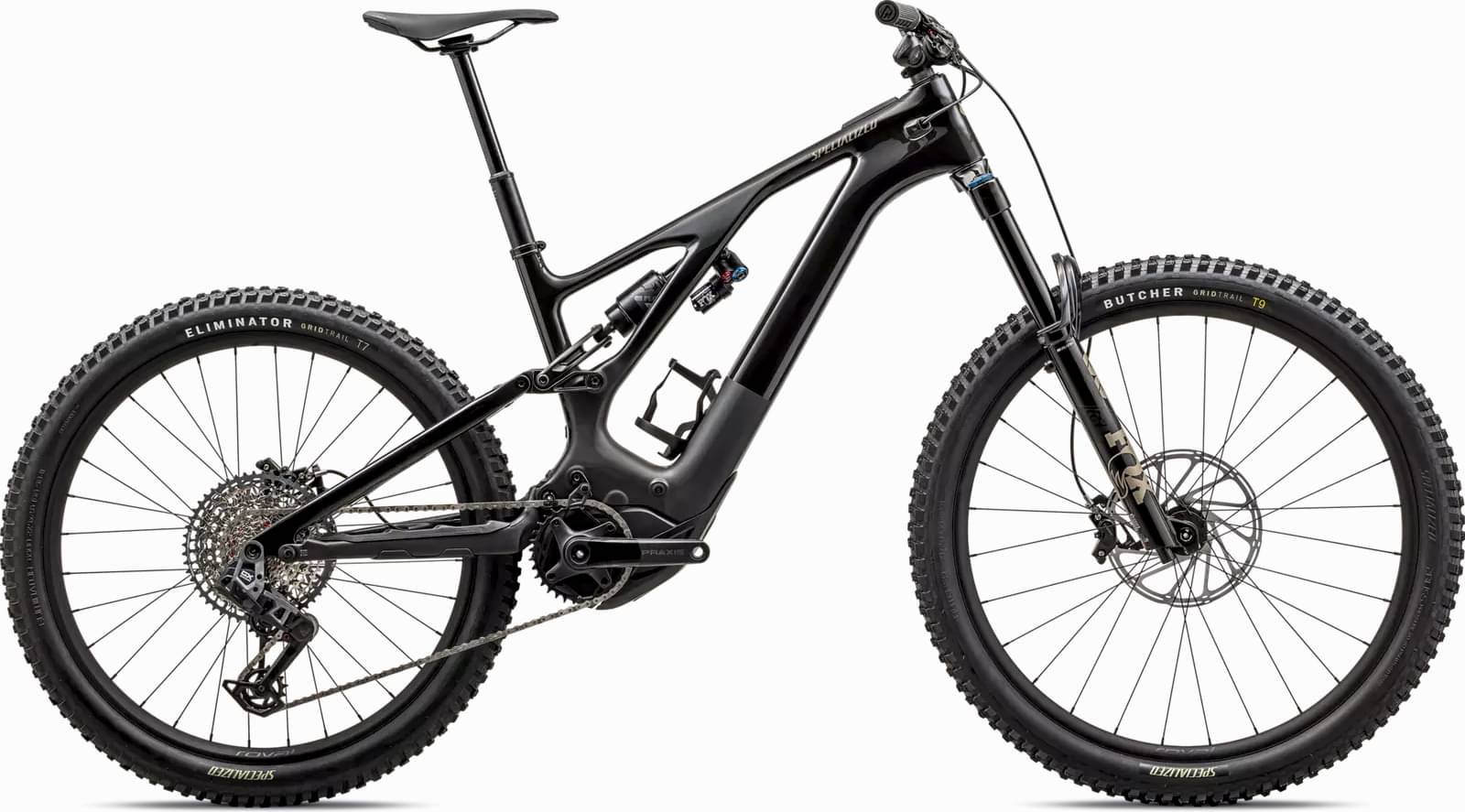

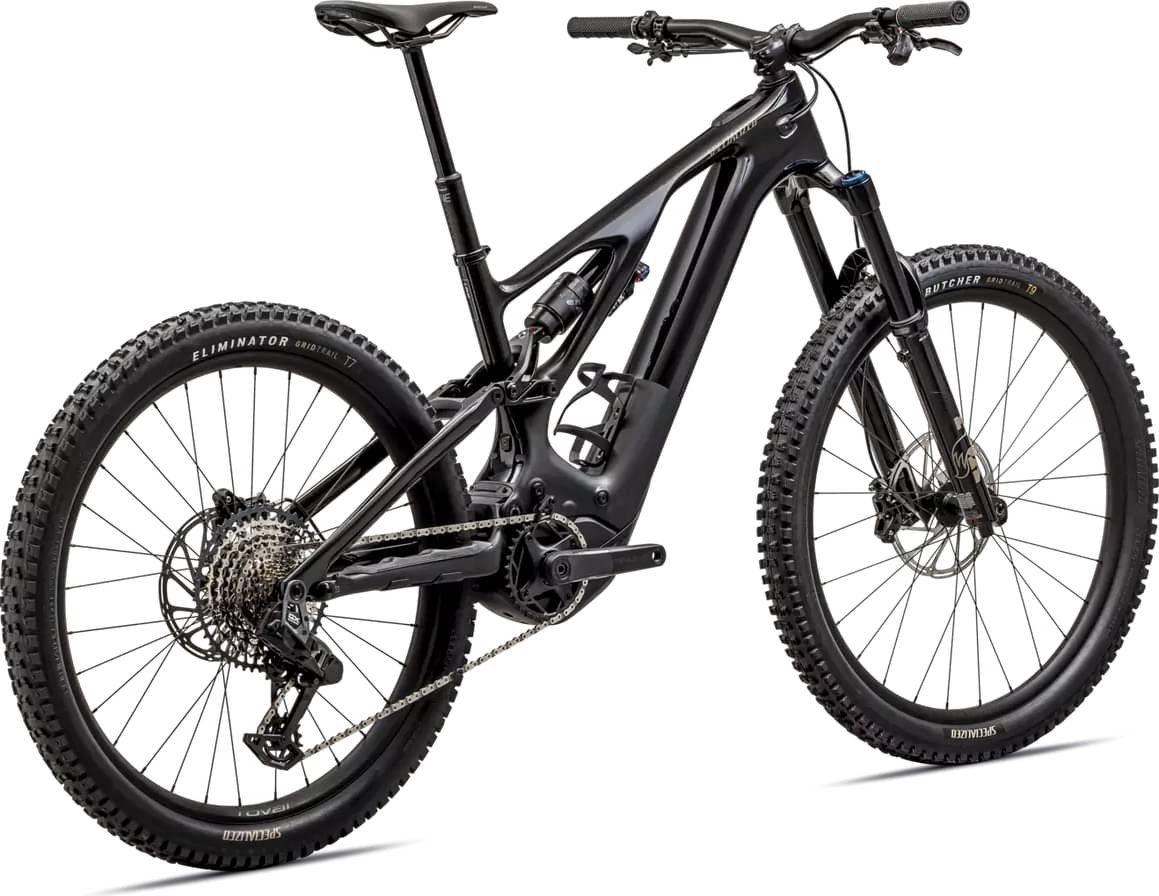

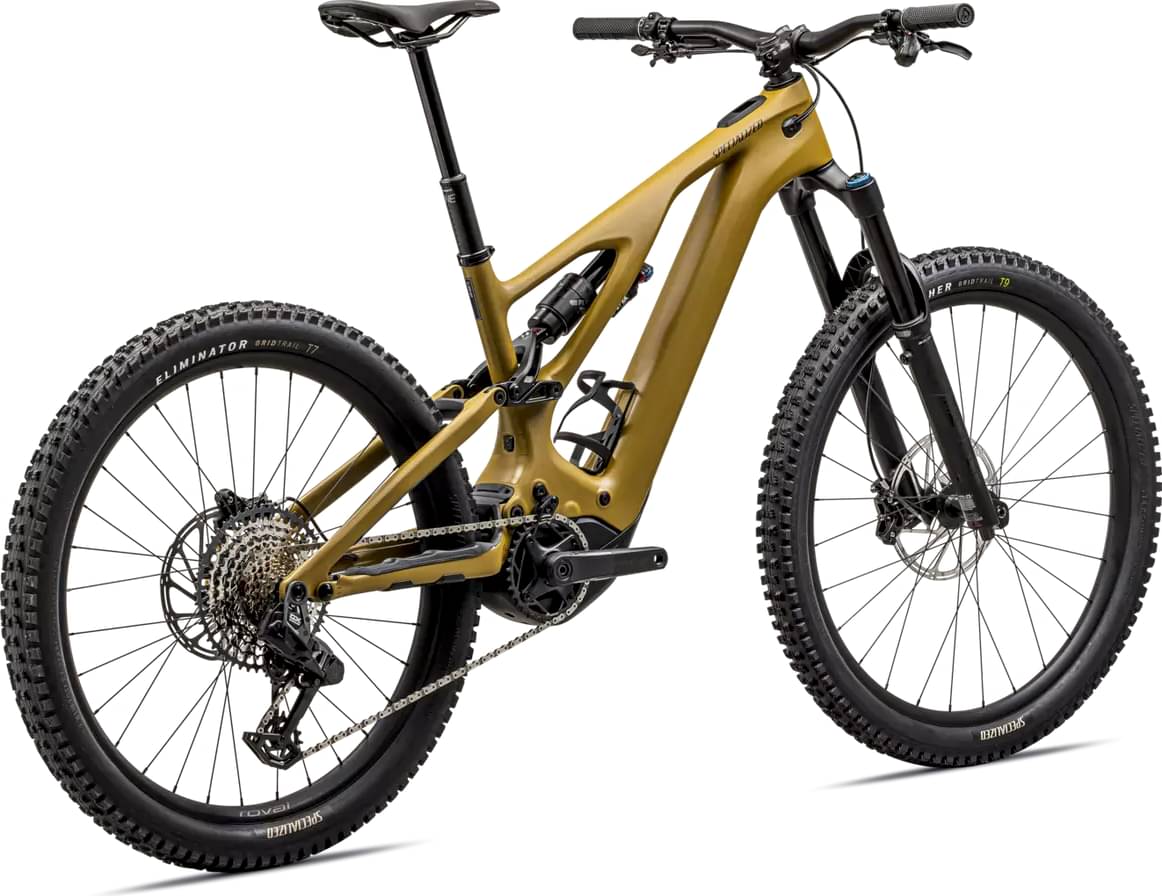

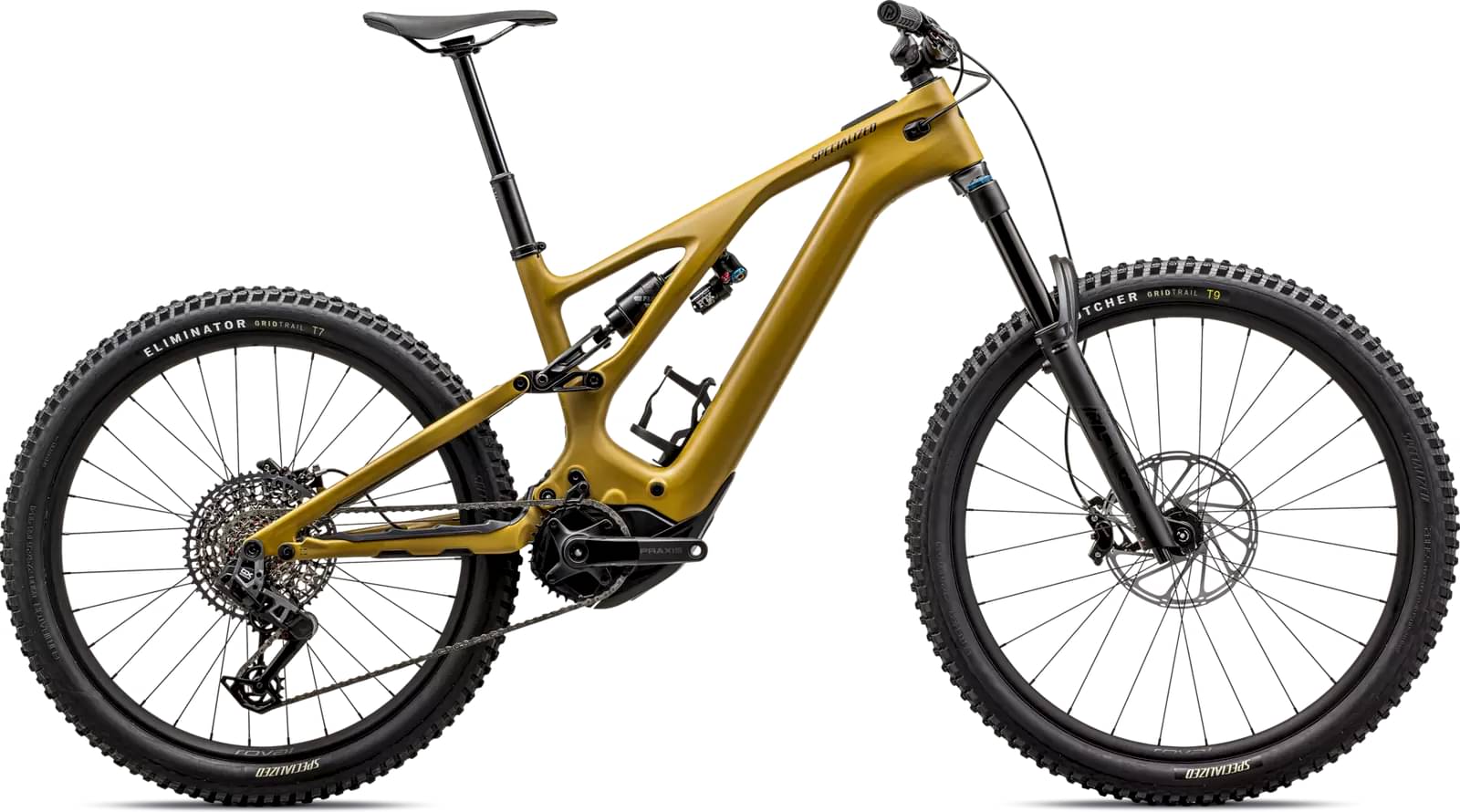

Specialized Turbo Levo Expert T-Type 2023
2023 E-bike
Estimate price |
9,293$
Weight | 23.04 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Specialized mid-drive -
Battery Specialized M3-700, Integrated battery, 700Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
S1
149cm - 160cm
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Suspension Fork
Fox 38 Performance Elite, Grip 2 damper, 29", 160mm travel, 44mm offset

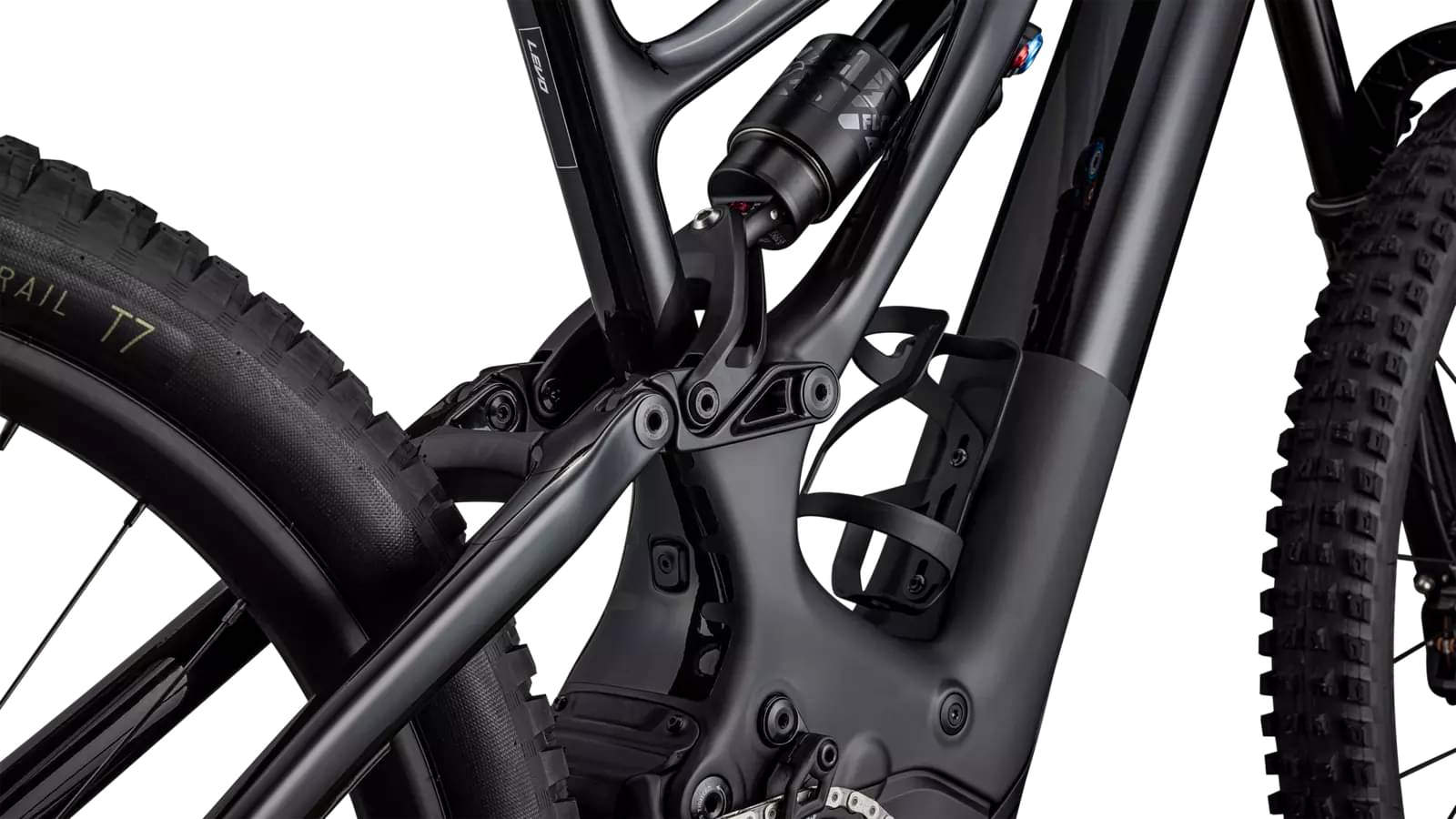

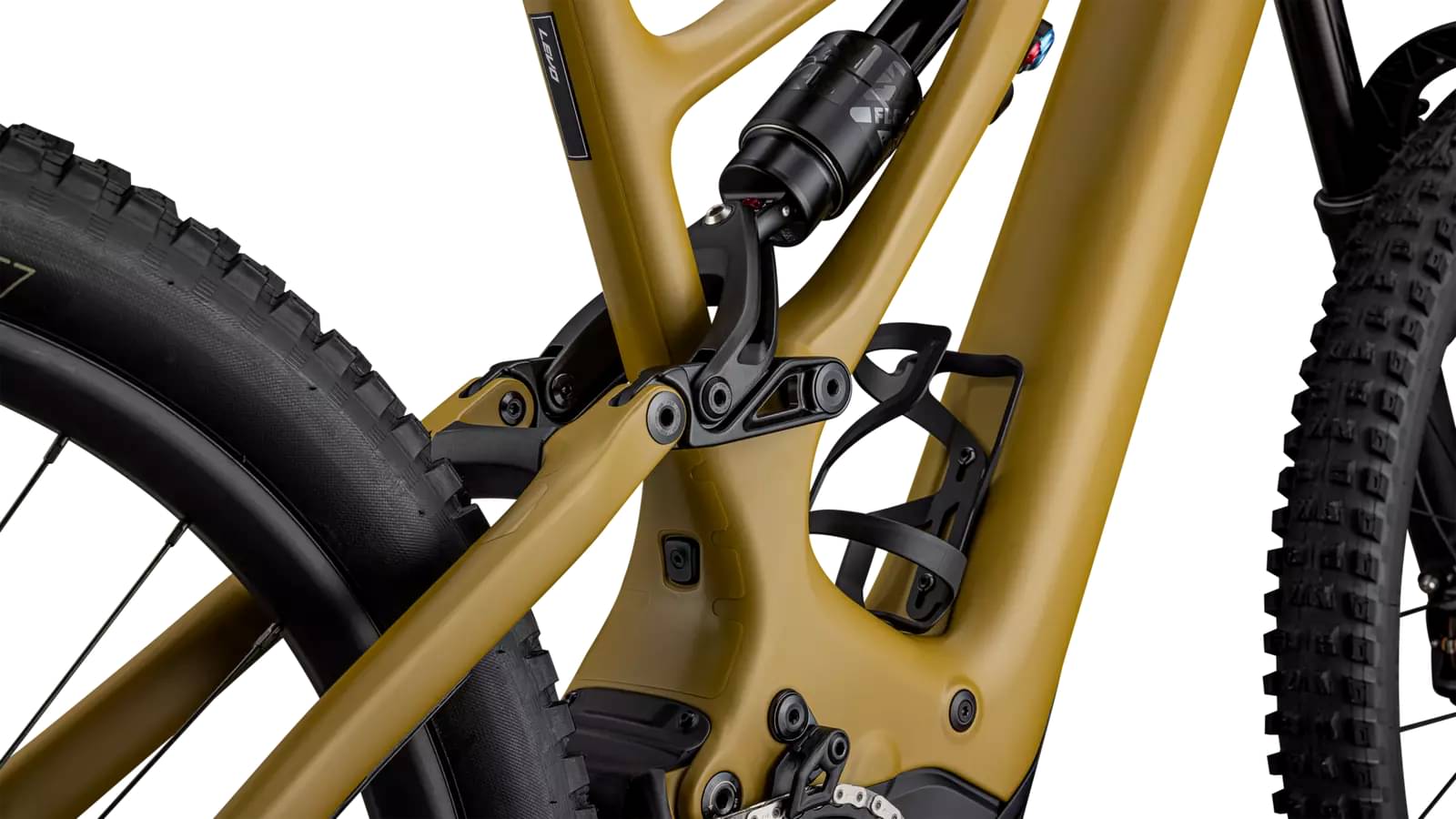

Rear Shock

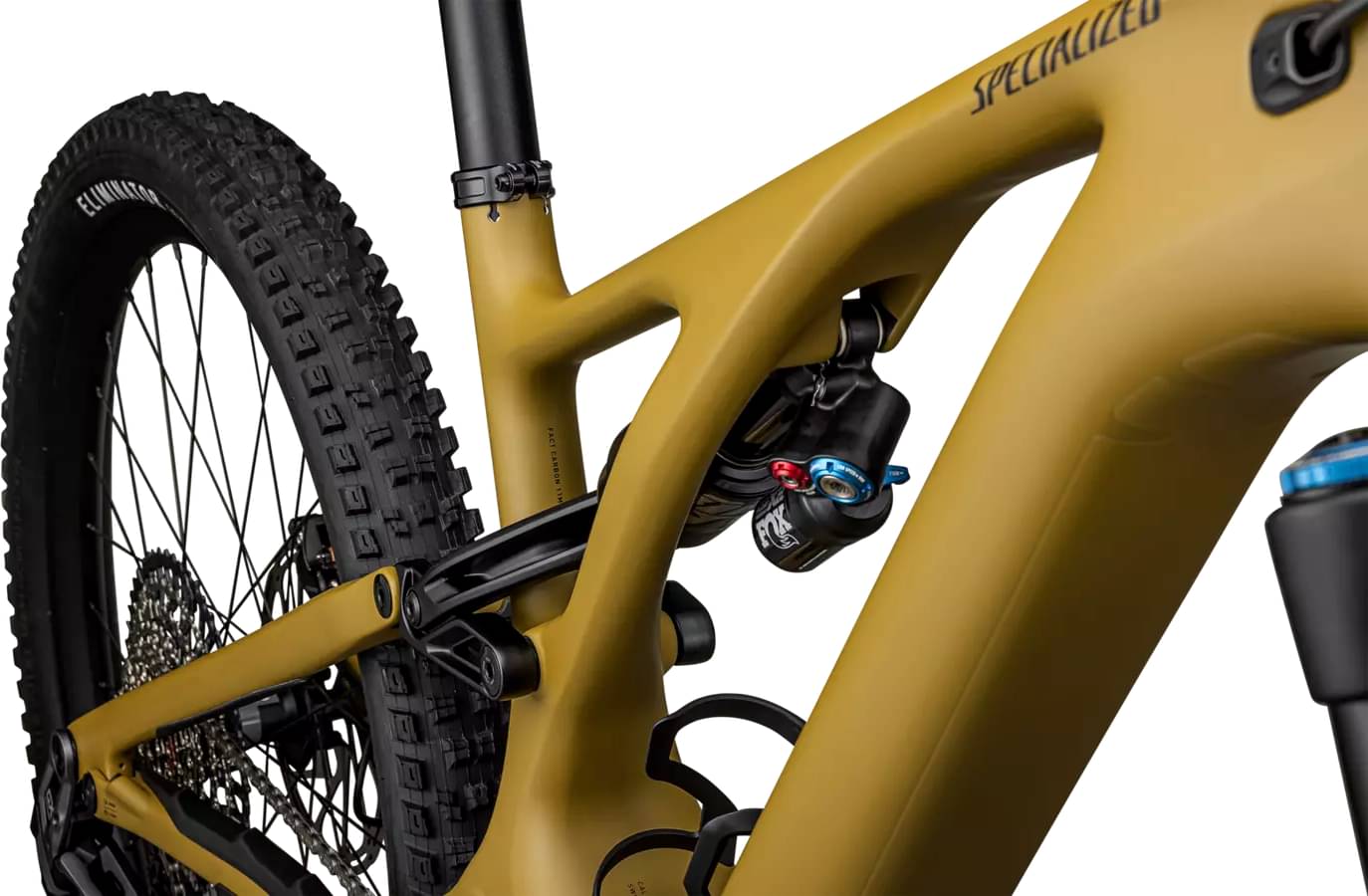

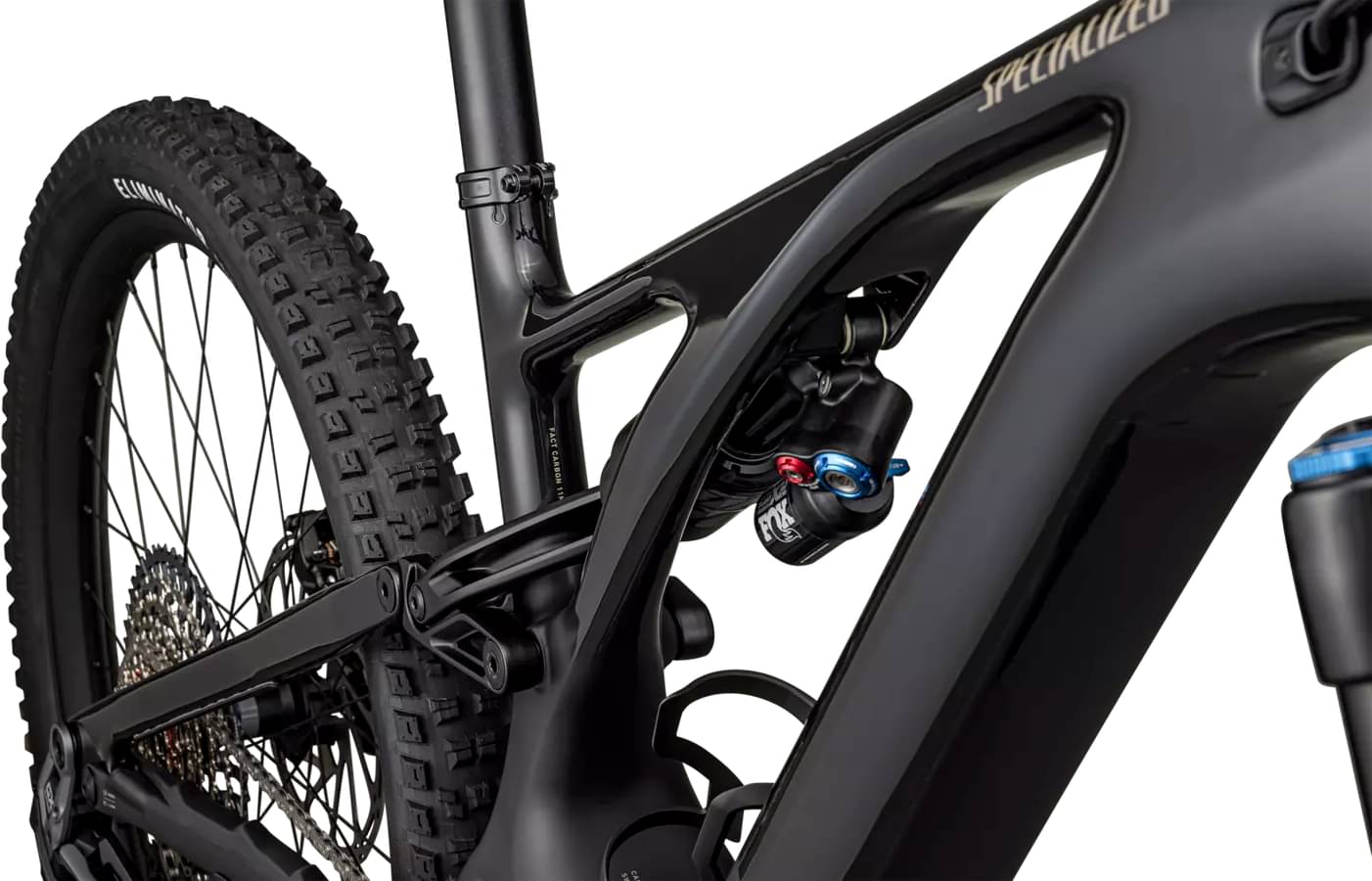

S2-S6: Fox Float X2 Performance Elite series, 210x55mm, S1: Fox Float DPS Performance Elite series, 210x52.5mm
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission Derailleur
Shift Levers
SRAM AXS POD Controller
Cassette
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Crank
Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm, New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
Chain
SRAM GX Eagle Transmission Flattop Chain
Wheels
Rims
Front: Traverse 29, Rear: Traverse 27.5
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Brakes
Brakes
Front: SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 220mm rotor, Rear: SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 220mm rotor
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore

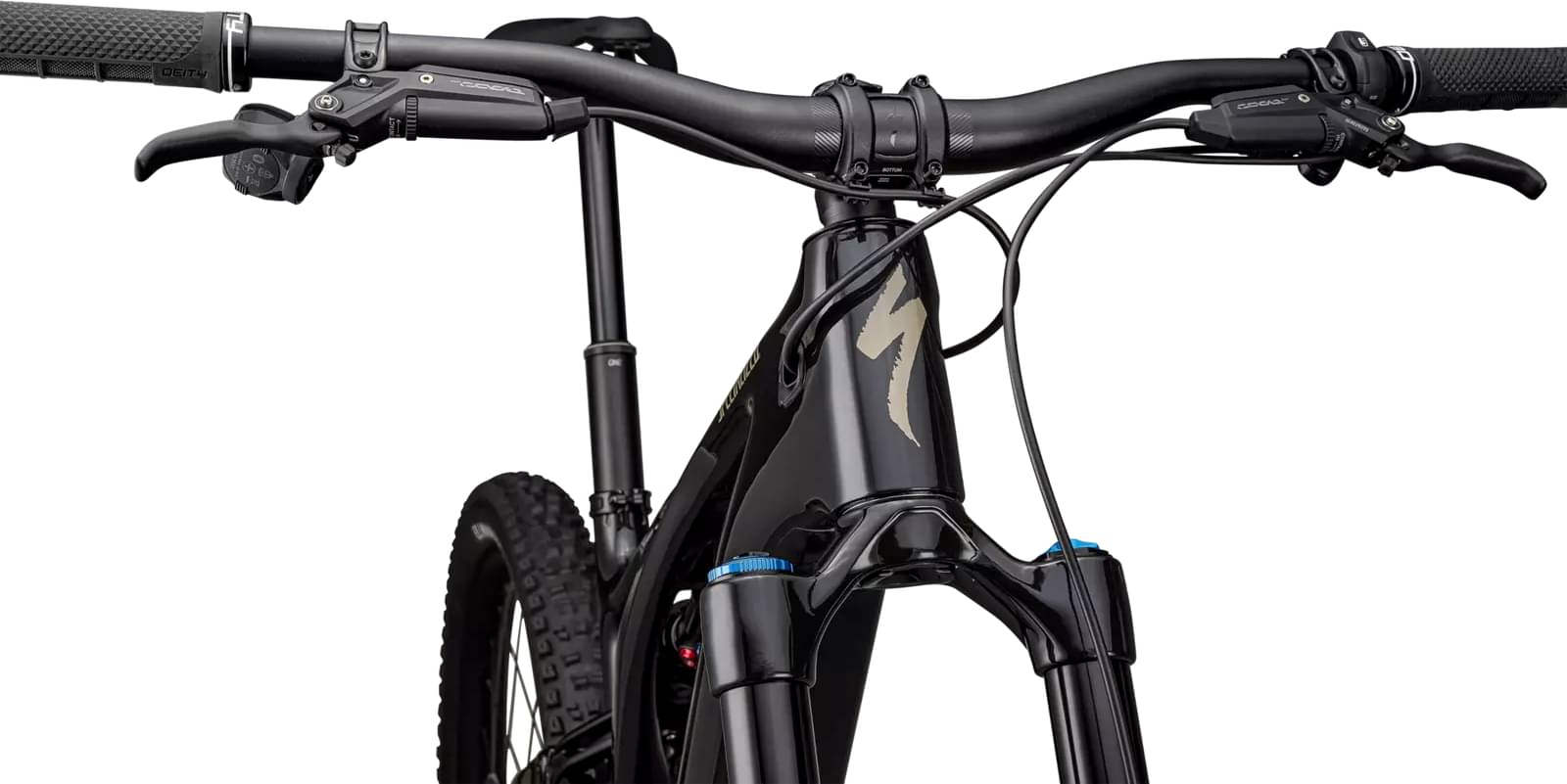

Handlebar

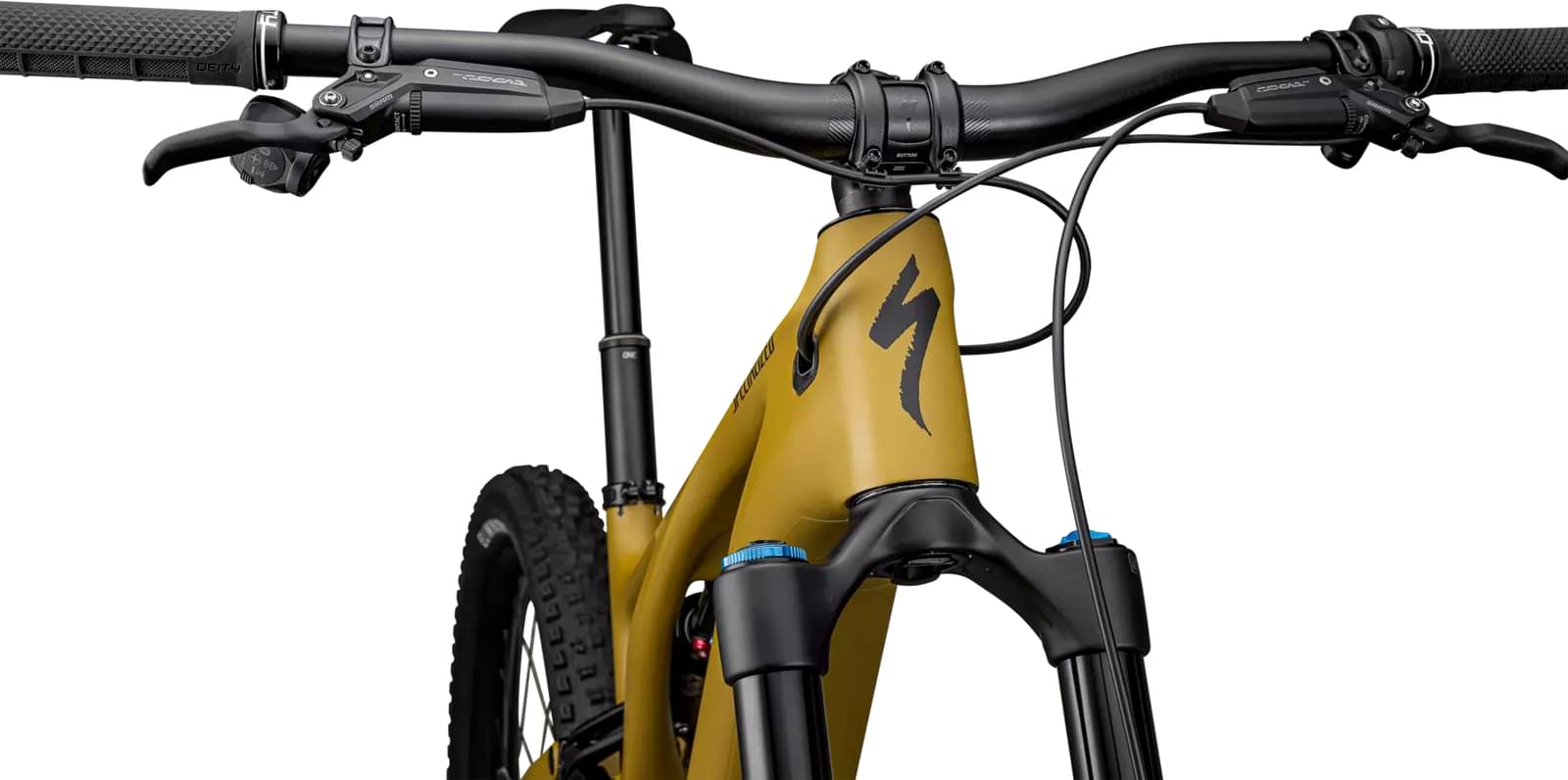

Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
Grips
Deity Grips
Seat
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Seatpost
OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)
Motor & Battery

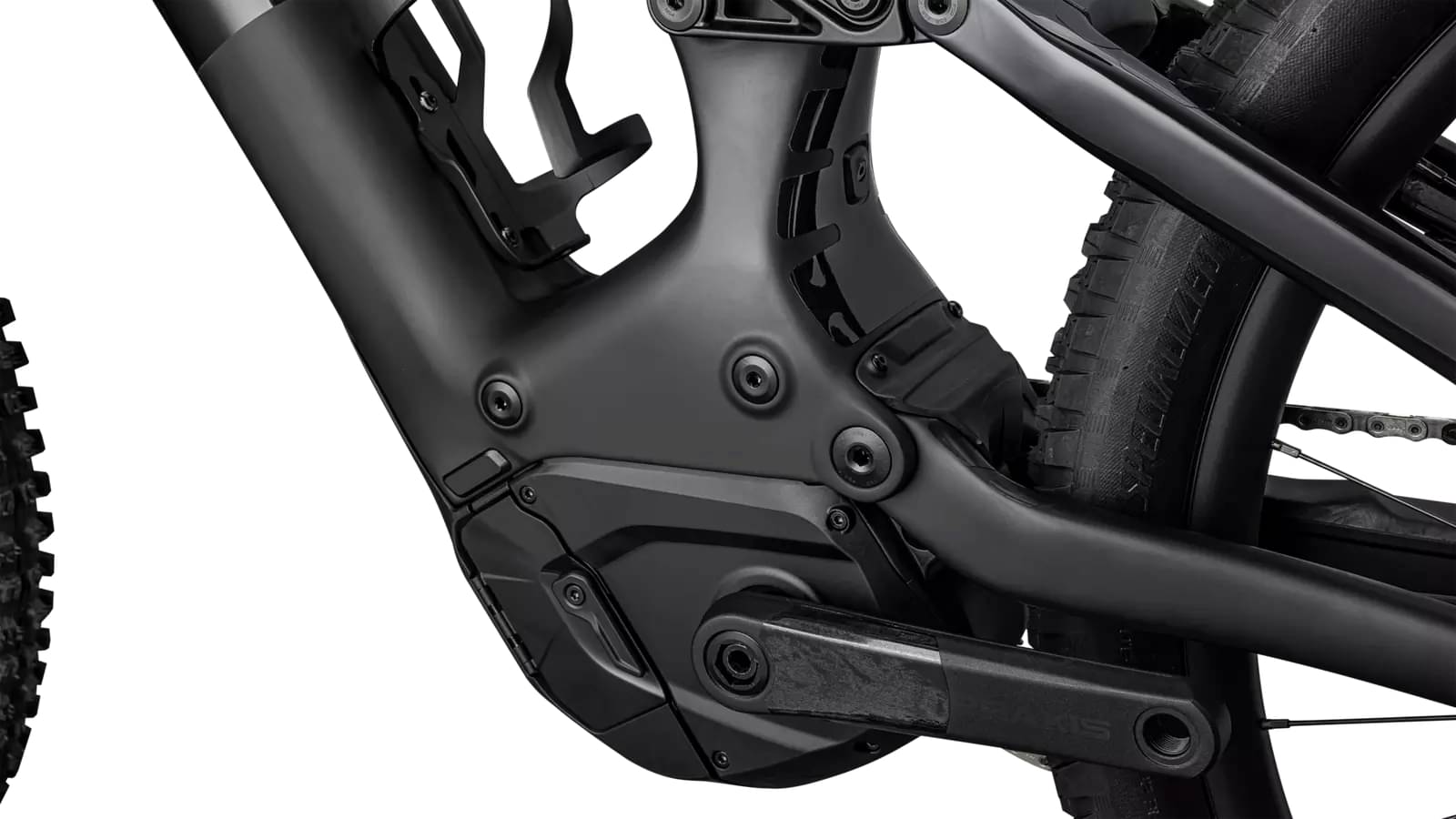

Motor

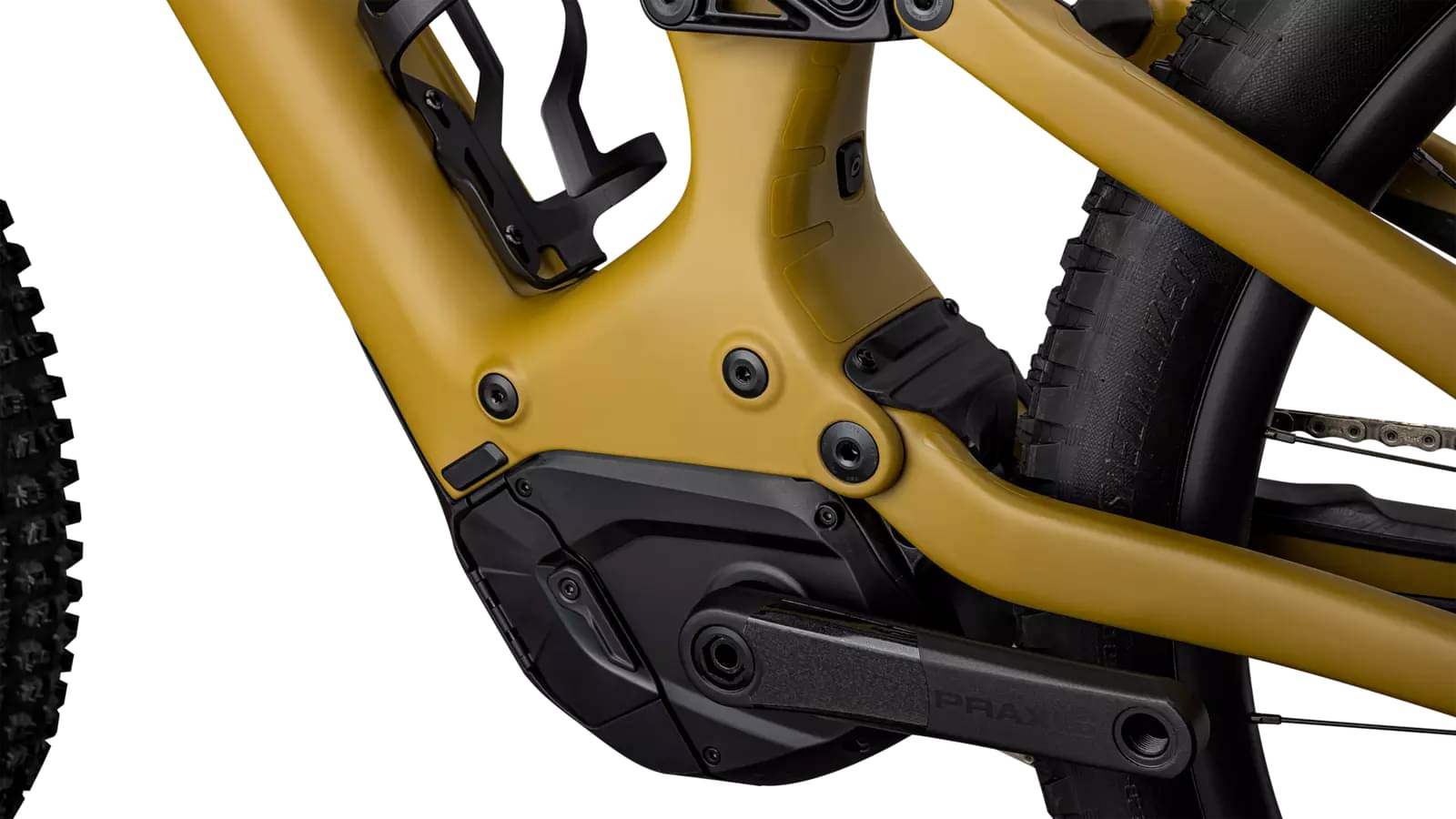

Specialized 2.2 Custom Rx Trail Tuned Motor
Battery
Specialized M3-700, Integrated battery, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.39 mm | 1.33 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 352 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 738 mm | 760 mm | 784 mm | 814 mm | 843 mm | 878 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 602 mm | 614 mm | 623 mm | 632 mm | 641 mm | 650 |
| Reach | 409 mm | 429 mm | 449 mm | 474 mm | 499 mm | 529 mm |
| Seat Tube Angle | 78 ° | 77.2 ° | 76.7 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 380 mm | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1176 mm | 1197 mm | 1222 mm | 1252 mm | 1281 mm | 1315 mm |
| Bottom Bracket Drop | 25 mm | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 749 mm | 773 mm | 780 mm | 784 mm | 785 mm | 787 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 149 cm | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 160 cm | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
About this model
Turbo Levo Expert T-Type completes the Specialized E Turbo Levo model. Specialized released 86 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Specialized Turbo Levo Alloy 2023 is the most economical model, with a starting price of 5500$. Specialized S-Works Turbo Levo 2023 on the other hand costs 15000$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 9400$. Doing a quick comparison, we notice that Turbo Levo Expert T-Type price is 96.45% higher than the average cost of an Enduro e-bike.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.3 kg (51.37 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, Turbo Levo Expert T-Type has a weight of 23.04 kg (50.79 lbs). In short, the average Enduro e-bike weight is 1.13% higher than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Turbo Levo Expert T-Type components
Fork
The Fox Performance Elite Float 38 is included from the factory. It has a travel distance of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the S2-S6: Fox Float X2 Performance Elite series rear shock model, which has a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Turbo Levo Expert T-Type are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Turbo Levo Expert T-Type comes in 6 sizes, that range from 149 cm – 203 cm (4.89 ft – 6.66 ft). In short, you can easily find one that suits you.
Dropper post
Specialized Turbo Levo Expert T-Type comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
